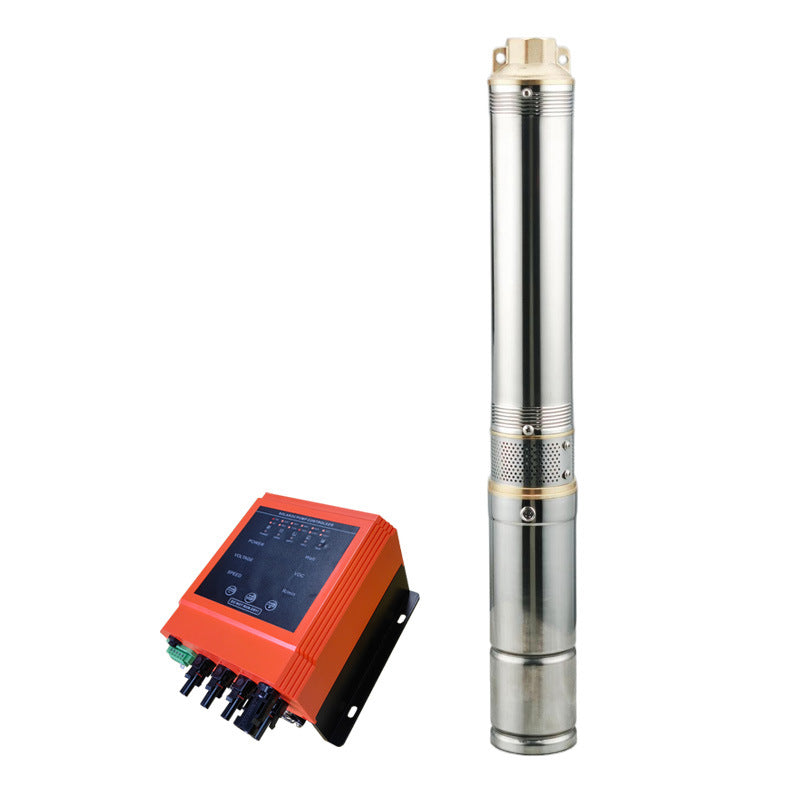

3inch 90VDC 1100W 106M Stainless Steel Solar Deep Well Pump

Name: 3inch 90VDC 1100W 106M Stainless Steel Solar Deep Well Pump
Brand: Flowatt
SKU: FLW-3SPC3.3/106-D90/1100
Price: 288.48 USD
Availability: InStock

$288.48 USD~~$412.12 USD~~

1. 3Inch Solar Deep Well Pump With 1Inch Outlet, 1100W(1.5Hp), Strong Choice For Solar Irrigation Pump Projects
2. Max Head 105m, Flow ≈ 0; Max Head 40m, Flow ≈ 3.1m³/h, Irrigates 0.37ha (5mm/Day, 6h/Day)
3. Stainless Steel Pump Body With Reinforced Nylon Impeller
4. MPPT Controller With Multi-Protection (Over-Voltage, Overload, Short Circuit)
5. Required Solar Panel Configuration: 550W × 3pcs Connected in Series
6. Application: Deep Well Water Extraction, Agricultural Irrigation, Mountainous Area Water Supply, and Livestock Farming From Deep Sources.

Item is in stockHurry! Low inventoryItem is out of stock Item is unavailable

Quantity

1
2
3
4
5
6
7
8
9
10 +

Quantity

Contact Us

Flowatt_SPC_Solar_Deep_Well_Pump_Detail-1

106m Ultra-High Head Submersible Well Pump Ideal for 3-Inch Wells

This high-performance 3-inch submersible well pump is engineered for deep water extraction. Featuring an impressive 106-meter maximum head, it delivers powerful and reliable performance even within the constraints of narrow 3-inch well casings.

1.1KW PMSM Motor: High-Efficiency Solar Direct Drive Technology

This solar submersible well pump is equipped with an advanced 1.1KW PMSM (Permanent Magnet Synchronous Motor) DC motor, achieving over 90% efficiency. The motor supports a 60-220Vdc wide voltage input, allowing it to operate directly from solar panels without the need for batteries, providing you with a green, efficient, and low-maintenance water supply solution.

Pump Weighs Only 7.1kg, Quick Replacement for Existing Pumps

As a compact submersible well pump, the pump body weighs only 7.1 kg. This lightweight and streamlined structure allows for quick and easy replacement of existing 3-inch submersible pumps, significantly reducing installation time and saving on labor and deployment costs.

Smart Control and Superior Durability (IP65 Rated)

This durable submersible well pump features a built-in 32-bit MCU for FOC (Field-Oriented Control) and comprehensive built-in protections (including over-voltage, over-current, and anti-reverse protection). It boasts an IP65 ingress protection rating and is capable of stable operation across a wide temperature range from -10°C to +80°C., ensuring long-term reliability.

Flowatt_Solar_deep_well_pump_factory_production_line

Defining Reliability in Deep Well Submersible Pump Technology

When choosing a submersible water pump for a deep well, build quality is crucial for reliable performance. A high-standard pump ensures consistent operation with:

Dynamic Balance – Reduces vibration and wear during high-speed rotation.

High-Head Capability – Lifts water from deep wells efficiently with minimal energy loss.

Brushless DC Technology – Boosts performance for solar deep well pumps in off-grid systems.

Yes — many solar water pumps can operate directly from solar panels via a controller. Adding batteries increases reliability during low sunlight.
They are suitable for shallow wells, livestock watering, pond fills, irrigation, garden water transfer, and small water supply systems.

Surface pumps sit above the water source and are best for shallow lifting. Submersible pumps are placed underwater and are suitable for deeper wells and higher lifts.
Performance depends on pump power, solar array size, depth of water, well size, and total dynamic head. Properly sizing panels and controllers ensures reliable water output.
