1. 4Inch Solar Well Pump, 2" Outlet, 2500W(3hp), Ideal Solar Irrigation Water Pump For Farms.
2. Max Head 185m, Max. Flow ≈ 0; Max Head 60m, Flow ≈ 4.8m³/h Irrigates 0.58ha, Based On 5mm/Day, 6h/Day Operation.

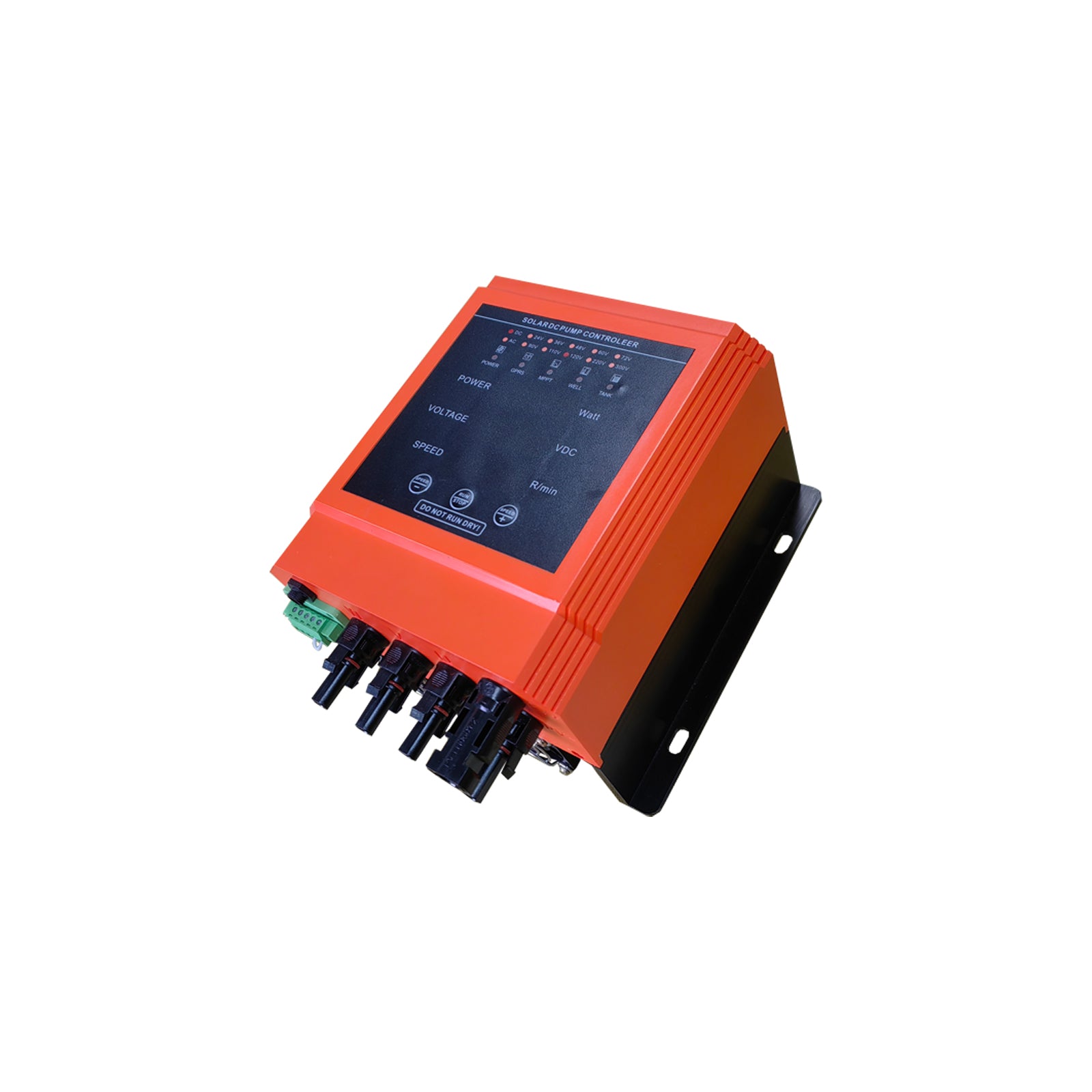

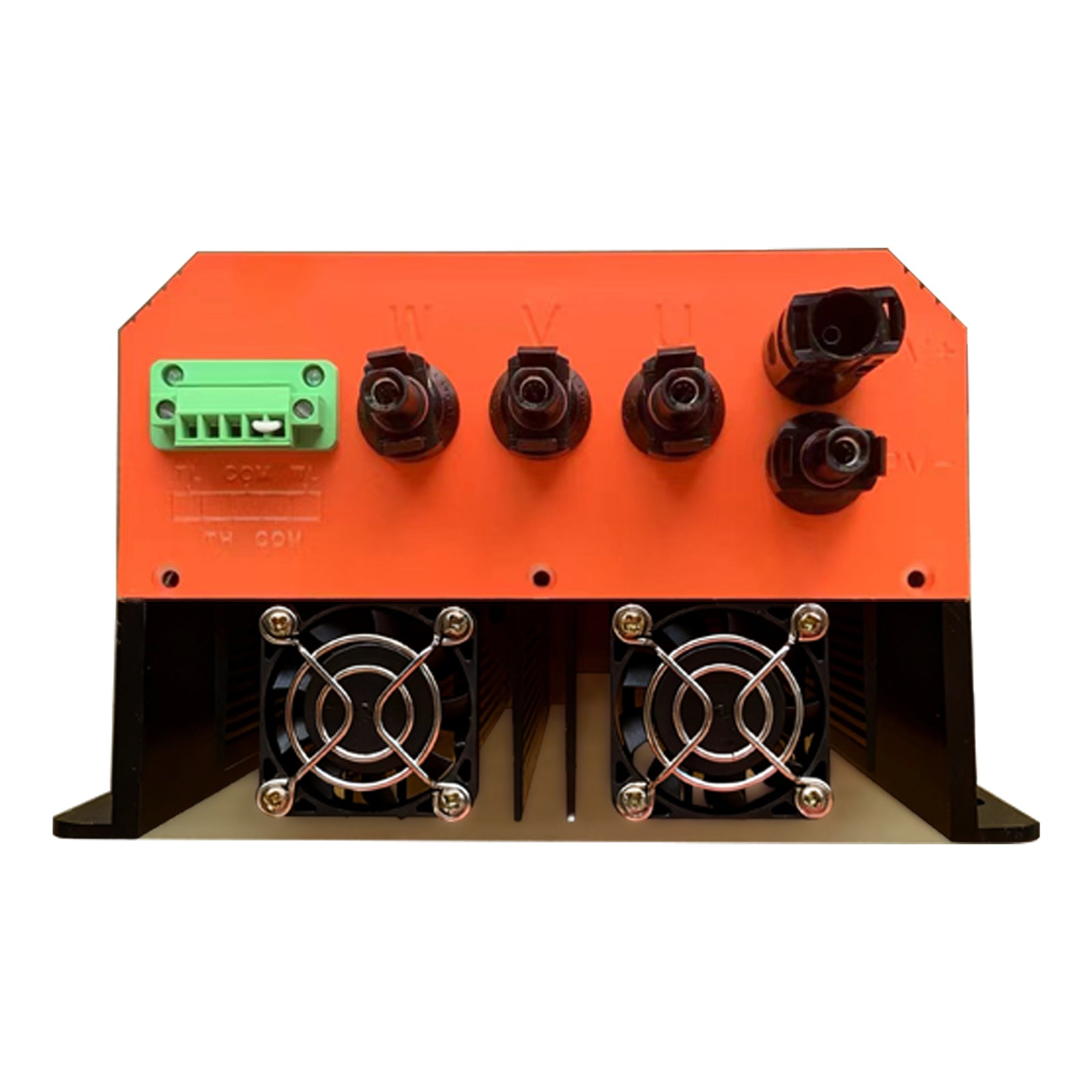

3. MPPT-Controlled Inverter Optimizes Solar Energy Conversion
4. Hybrid AC/DC Design Ensures All-Day Operation of the Solar Well Pump
5. Comprehensive Electrical Protection System

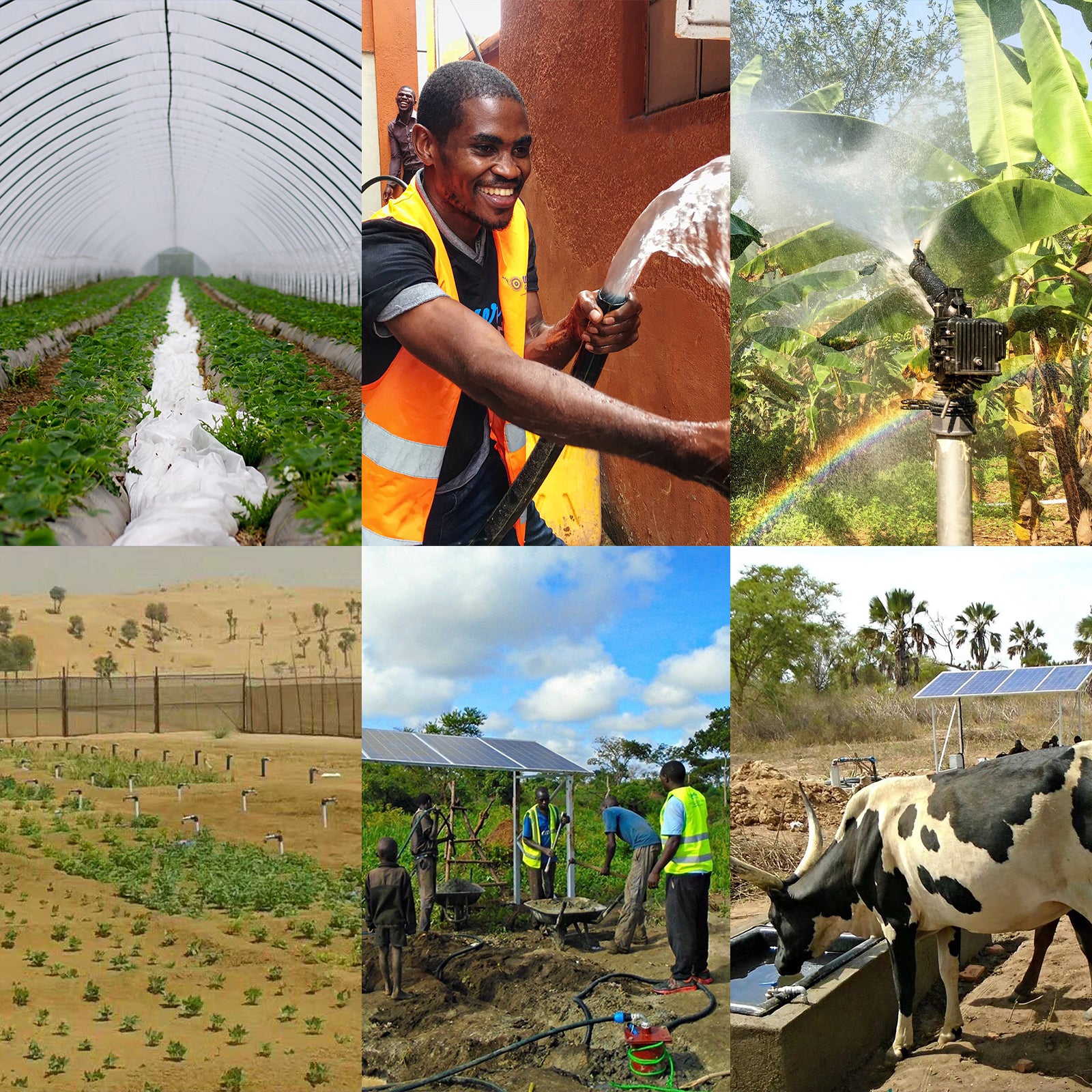

6. Application: High-Flow Deep Well Extraction, Large-Scale Agricultural Irrigation Projects, and Village-Level Centralized Water Supply Systems.
High-Efficiency Deep Well Pump with 12,000 L/h Output
Efficient Solar Direct Drive with 96% MPPT Tracking
Full Stainless Steel Structure for Maintenance-Free Operation

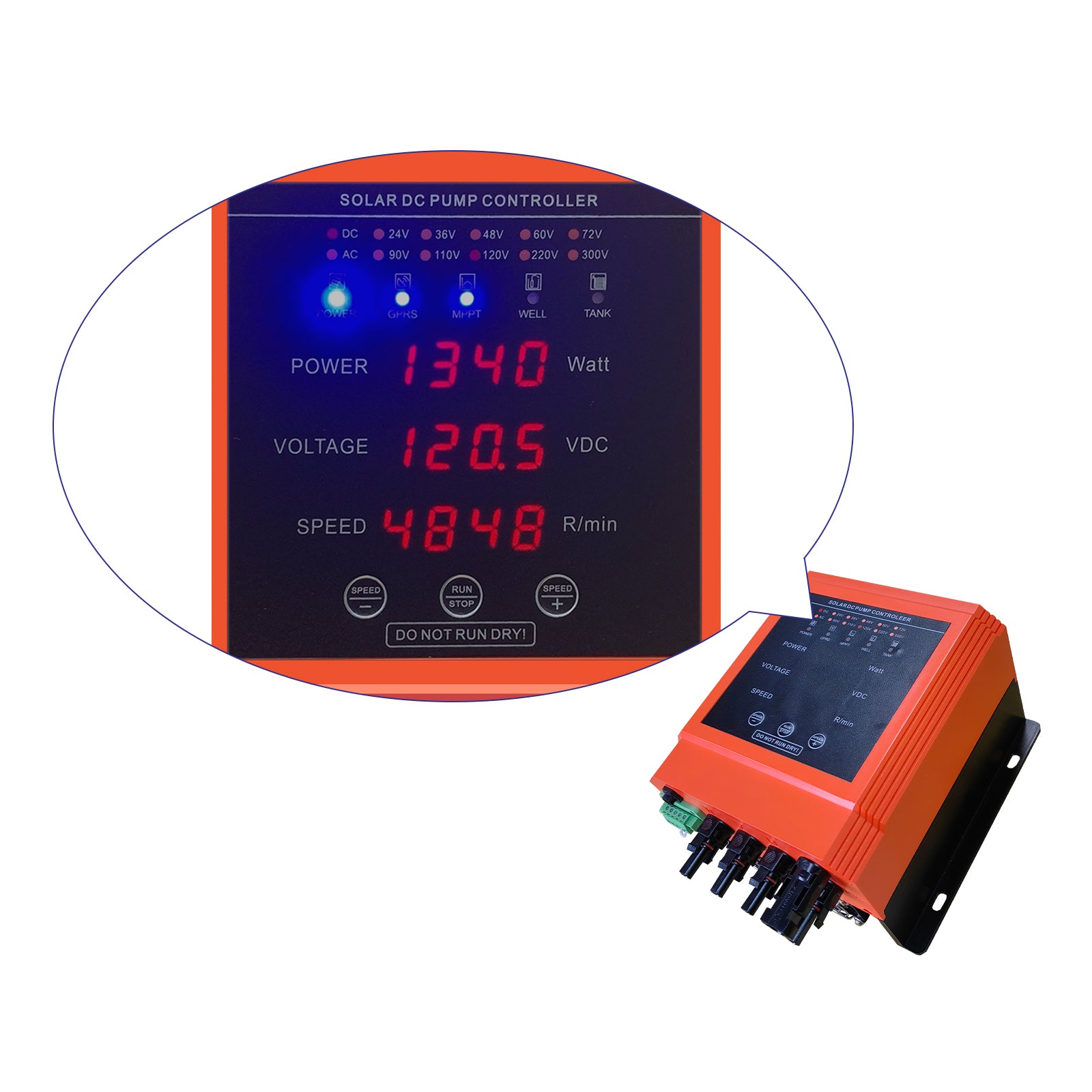

Smart Electronic Control System with Comprehensive Protection
Defining Reliability in Deep Well Submersible Pump Technology
Frequently Asked Questions
-
Yes — many solar water pumps can operate directly from solar panels via a controller. Adding batteries increases reliability during low sunlight. -
They are suitable for shallow wells, livestock watering, pond fills, irrigation, garden water transfer, and small water supply systems.
-
Surface pumps sit above the water source and are best for shallow lifting. Submersible pumps are placed underwater and are suitable for deeper wells and higher lifts.
-
Performance depends on pump power, solar array size, depth of water, well size, and total dynamic head. Properly sizing panels and controllers ensures reliable water output.
