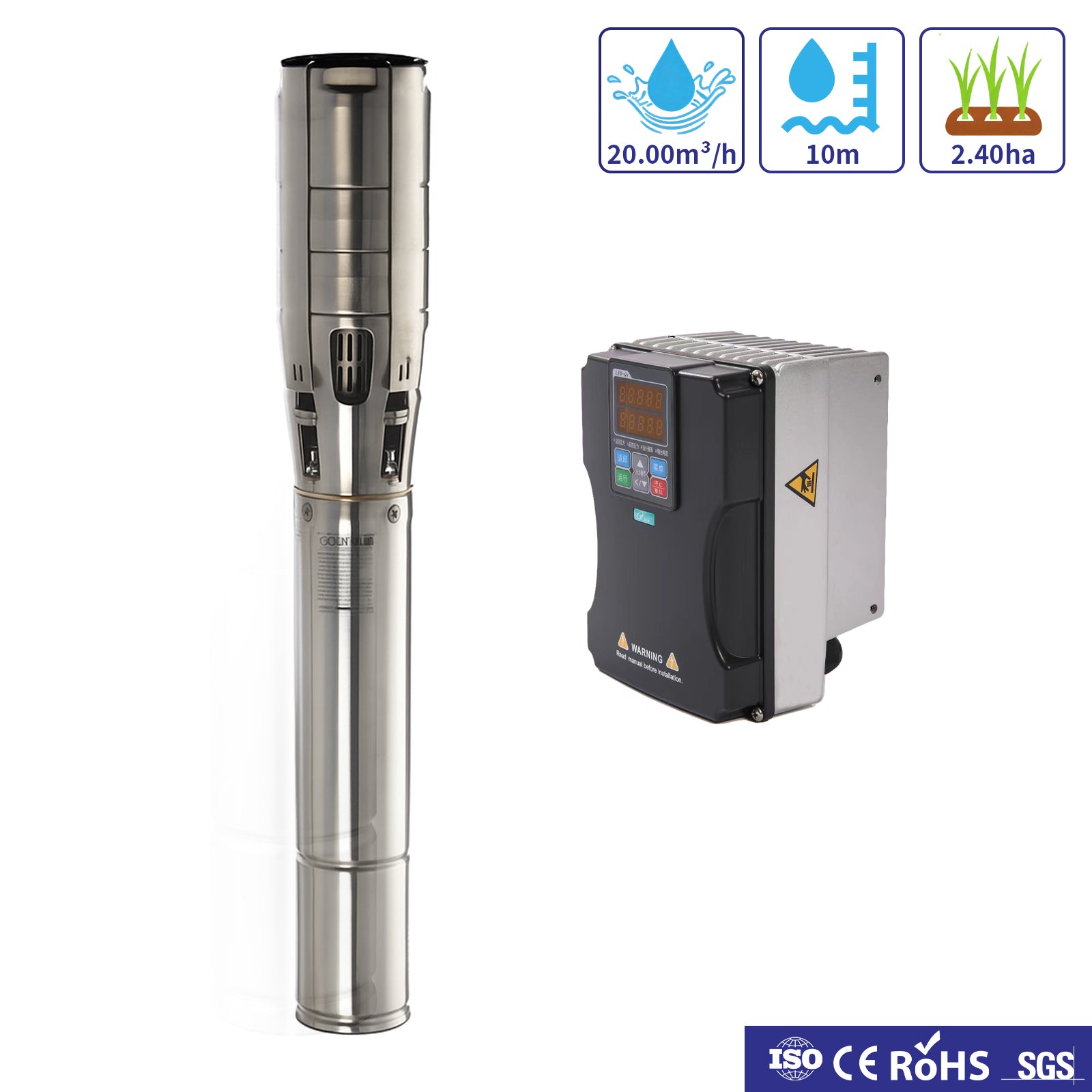

5inch 220VDC 2200W 25M Stainless Steel Solar Deep Well Pump

Name: 5inch 220VDC 2200W 25M Stainless Steel Solar Deep Well Pump
Brand: Flowatt
SKU: FLW-5SSC32/25-D220/2200
Price: 455.58 USD
Availability: InStock

$455.58 USD~~$650.82 USD~~

1. 5Inch Solar Well Pump, 2.5"Outlet, 2200W (2.3hp), High-Volume Solar Water Transfer And Irrigation Pumping

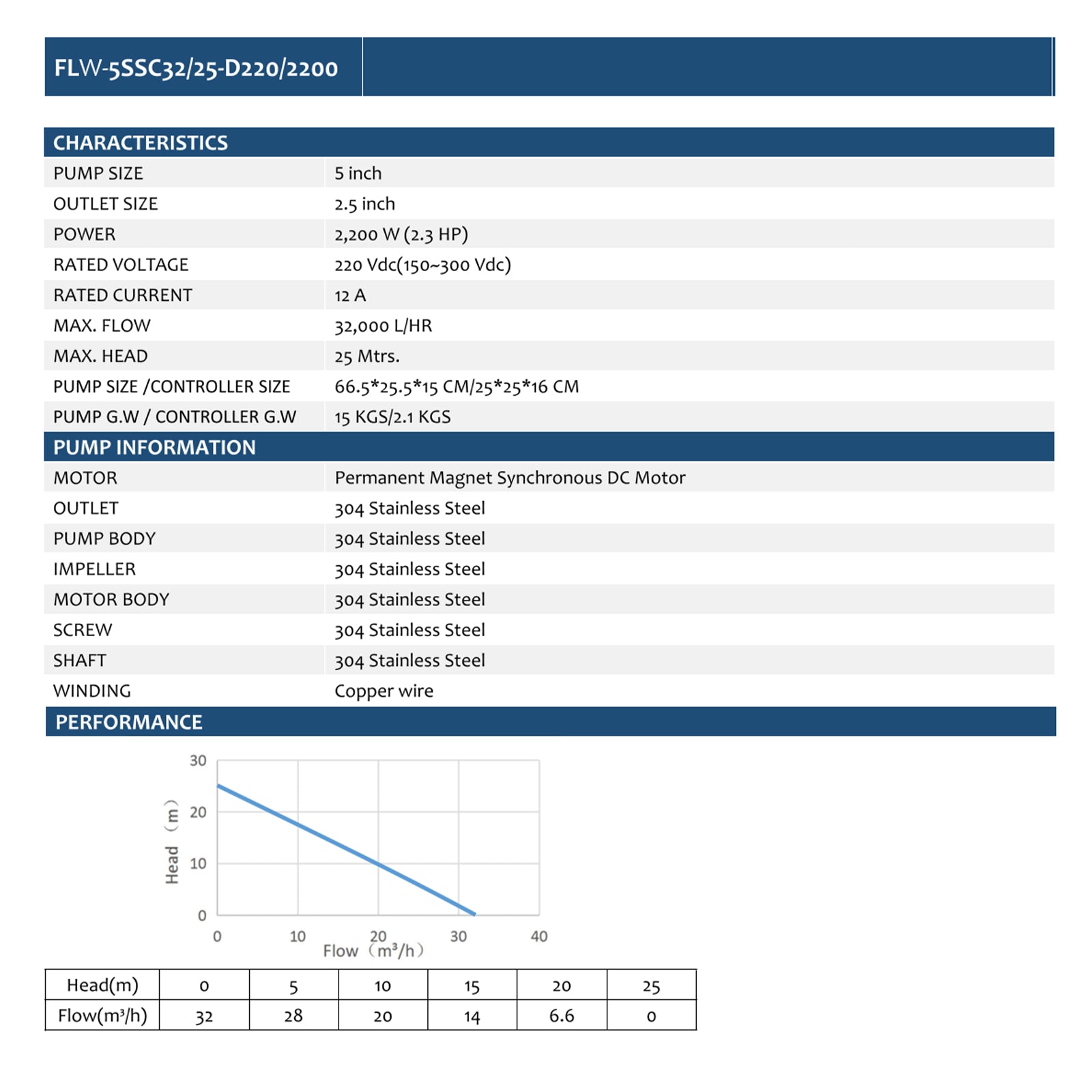

2. Max Head 25m, Flow ≈ 0; Max Head 12.5m, Flow ≈17m³/h → Irrigates 2.04ha, Based On 5mm/Day, 6h/Day Operation
3. Constructed With Full 304 Stainless Steel for Long-Term, Corrosion-Resistant Performance
4. Equipped With an MPPT Intelligent Controller Featuring Built-In Overload Protection
5. Recommended Solar Panel Configuration: 5 × 540W Panels Connected in Series
6. Application: Large-Flow Water Transfer From Rivers or Lakes, Rapid Farmland Surface Irrigation, and Industrial Water Circulation Systems.

Item is in stockHurry! Low inventoryItem is out of stock Item is unavailable

Quantity

1
2
3
4
5
6
7
8
9
10 +

Quantity

Contact Us

High-Flow Solar Deep Well Pump with 32,000 L/H Massive Output

This 5-inch solar deep well pump delivers a massive 32,000 L/H flow rate with 25m max head, specifically engineered for high-volume water supply applications including farmland irrigation and reservoir transfer.

High-Efficiency 2.2kW PMSM Motor for Solar Deep Well Pump

Powered by a 2.200W permanent magnet synchronous motor supporting 150-300Vdc wide voltage input, this solar deep well pump achieves over 90% efficiency, delivering significant energy savings compared to traditional pumping systems.

Advanced MPPT Technology for Reliable Solar Deep Well Pump Operation

Equipped with intelligent MPPT technology, this solar deep well pump maximizes solar energy harvest across varying light conditions, ensuring stable performance and efficient power utilization.

32-bit MCU FOC Control & IP68 Protection in Solar Deep Well Pump

Featuring 32-bit MCU with FOC sine wave control and IP68 protection rating, this solar deep well pump offers precise operation and complete waterproof capability for reliable performance in demanding deep well environments.

Flowatt_Solar_deep_well_pump_factory_production_line

Defining Reliability in Deep Well Submersible Pump Technology

When choosing a submersible water pump for a deep well, build quality is crucial for reliable performance. A high-standard pump ensures consistent operation with:

Dynamic Balance – Reduces vibration and wear during high-speed rotation.

High-Head Capability – Lifts water from deep wells efficiently with minimal energy loss.

Brushless DC Technology – Boosts performance for solar deep well pumps in off-grid systems.

Yes — many solar water pumps can operate directly from solar panels via a controller. Adding batteries increases reliability during low sunlight.
They are suitable for shallow wells, livestock watering, pond fills, irrigation, garden water transfer, and small water supply systems.

Surface pumps sit above the water source and are best for shallow lifting. Submersible pumps are placed underwater and are suitable for deeper wells and higher lifts.
Performance depends on pump power, solar array size, depth of water, well size, and total dynamic head. Properly sizing panels and controllers ensures reliable water output.
