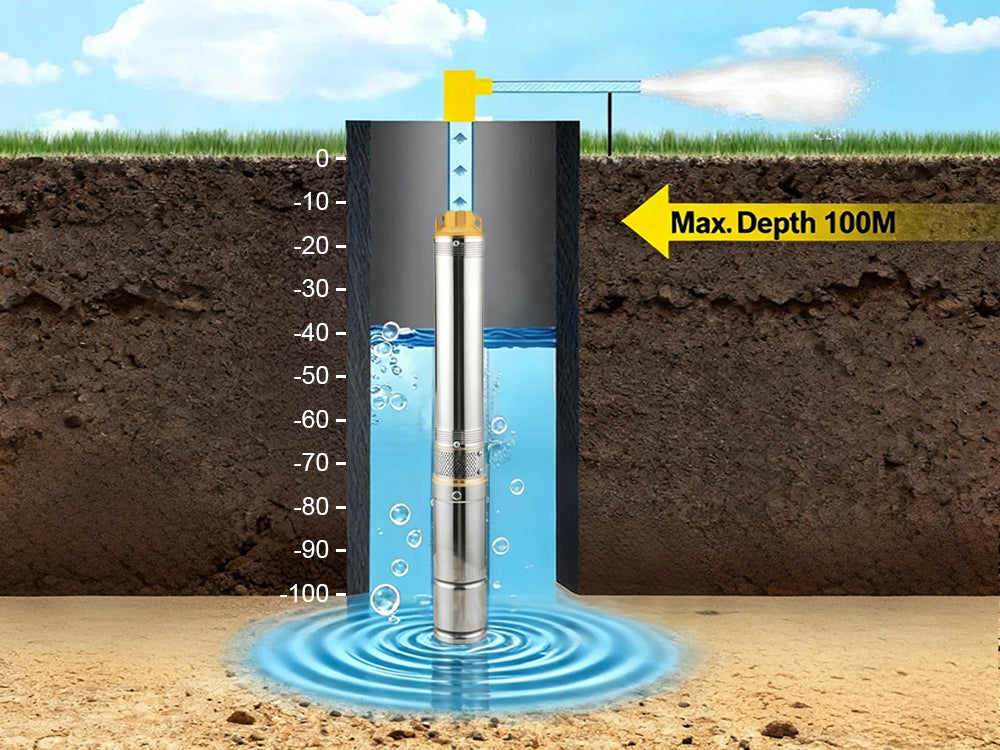

What is the maximum depth of a submersible well pump?

Table of Contents

1. Submersible Well Pump Sizing & Depth
   1. 1 Submersible Well Pump Depth Chart
2. Installation, Testing & Maintenance
3. How to Install a Submersible Well Pump
4. How to Test a Submersible Well Pump
5. Maintenance Tips & Troubleshooting

Understanding the maximum depth of a submersible well pump is essential for anyone planning to install a reliable water supply system. The depth a pump can operate at directly affects water flow, pressure, and overall performance. Choosing a pump that is suitable for your well depth ensures efficiency, prevents damage, and extends the lifespan of the system. Below, we will provide depth charts, sizing guidelines, and step-by-step instructions to help you select, install, and maintain the right submersible well pump for your specific needs.

Submersible Well Pump Sizing & Depth

Selecting the correct submersible well pump begins with understanding your well’s depth and water requirements. Using a submersible well pump depth chart ensures your pump matches the well’s vertical lift and desired flow rate. For solar-powered submersible pumps, it’s particularly important to consider solar panel output and storage capacity to maintain consistent water delivery throughout the day.

1.2 Submersible Well Pump Depth Chart

When selecting a submersible pump, the key factors to consider are well depth and required flow rate. Choosing a pump with the appropriate power and size for your well ensures stable, efficient, and reliable water delivery. The table below provides a summary of common well depth ranges along with recommended pump specifications, making it easier to identify the right pump system for your needs.

💡 Tips:

• Choose the flow rate according to your actual needs; too high or too low may affect pump efficiency.

• The deeper the well, the higher the pump power required to maintain stable water supply.

• For special well types (e.g., sandy wells), it is recommended to use helical rotor or progressive cavity pumps to prevent wear.

Installation, Testing & Maintenance

Proper installation, testing, and maintenance are crucial for ensuring the long-term efficiency of a submersible well pump, whether standard or solar-powered. During installation, it’s important to correctly position the pump at the recommended depth and secure all piping to prevent leaks or airlocks. For solar submersible pumps, matching the pump with the solar panel output and storage system is essential for consistent water delivery. After installation, regularly performing how to test a submersible well pump helps verify that the pump delivers the expected flow and pressure. Routine maintenance, such as checking electrical connections, cleaning filters, and inspecting for wear, can prevent common issues and extend the life of both standard and solar submersible pumps.

How to Install a Submersible Well Pump

When installing a submersible well pump, it’s important to consider the maximum well depth to ensure reliable performance. Follow these steps while keeping depth limitations in mind:

1. 1. Prepare the System – Measure your well depth and choose a pump rated for that depth and desired flow rate. Ensure the pump’s total head can handle the maximum depth. Gather all necessary parts including discharge pipe, check valve, cable, and safety rope.

   2. Power Setup –

      • Electric pumps: Ensure a stable power supply and proper wiring to handle the pump at its maximum operating depth.

      • Solar pumps: Install panels in a sunny location and connect them to the controller and battery, making sure the system can lift water from the well’s full depth.

   3. Connect and Lower the Pump – Attach the check valve and waterproof cable, then carefully lower the pump into the well. Keep it 3–5 feet above the bottom, ensuring the pump operates within its maximum recommended depth.

   4. Secure and Test – Fix the pipe and cable at the wellhead. Power on the system and check for steady water flow. Confirm the pump can handle the total head for your well depth without cavitation or flow issues.

Always verify that your chosen submersible pump is rated for the maximum depth of your well, as exceeding the recommended depth can reduce efficiency and shorten the pump’s lifespan.

How to Test a Submersible Well Pump for Performance

Testing a submersible well pump ensures it operates efficiently and meets your water supply needs. Follow these key steps to check performance:

1. Measure Water Flow: Open the delivery point and record the flow rate, comparing it with the pump’s specifications.

2. Check Water Pressure: Use a pressure gauge to ensure the pump maintains the recommended pressure for your well system.

3. Inspect Electrical Connections: Verify that wiring and connections are secure, insulated, and waterproof, especially for solar-powered pumps.

4. Monitor Solar Pump Performance: For solar submersible pumps, observe output during peak sunlight and assess consistency throughout the day, accounting for any battery storage.

5. Listen for Unusual Noises: Mechanical noises or vibrations can indicate worn parts or alignment issues.

6. Examine Valves and Filters: Ensure all valves are functioning correctly and filters are clean to avoid flow restrictions.

Regular testing not only confirms current performance but also helps detect potential issues early, ensuring both standard and solar submersible pumps provide reliable water supply over time.

Maintenance Tips, Common Issues & Troubleshooting for Submersible Pump

Maintaining a submersible well pump, whether standard or solar-powered, is essential for reliable water supply and long-term performance. Here are the key tips and points to keep in mind:

1. Regular Inspection: Check for wear, leaks, and corrosion on the pump body, piping, and connections.
2. Electrical Checks: Ensure wiring is secure, insulated, and free from damage, especially for solar-powered pumps.
3. Filter Cleaning: Clean or replace filters regularly to prevent clogging and maintain proper flow.
4. Monitor Performance: Observe water flow and pressure; compare with the pump’s specifications to detect early issues.
5. Common Issues: Low water output, unusual noises, or inconsistent flow may indicate clogged impellers, sediment buildup, or electrical problems.

• Troubleshooting Steps:

  • Remove debris and clean the pump or filters.

  • Check voltage or solar panel output for solar pumps.

  • Inspect valves and connections for leaks or blockages.

• Preventive Maintenance: Schedule routine checks and testing to extend pump life and avoid unexpected failures.

By following these tips and troubleshooting guidelines, both standard and solar submersible well pumps can maintain efficient operation and deliver a consistent water supply.
