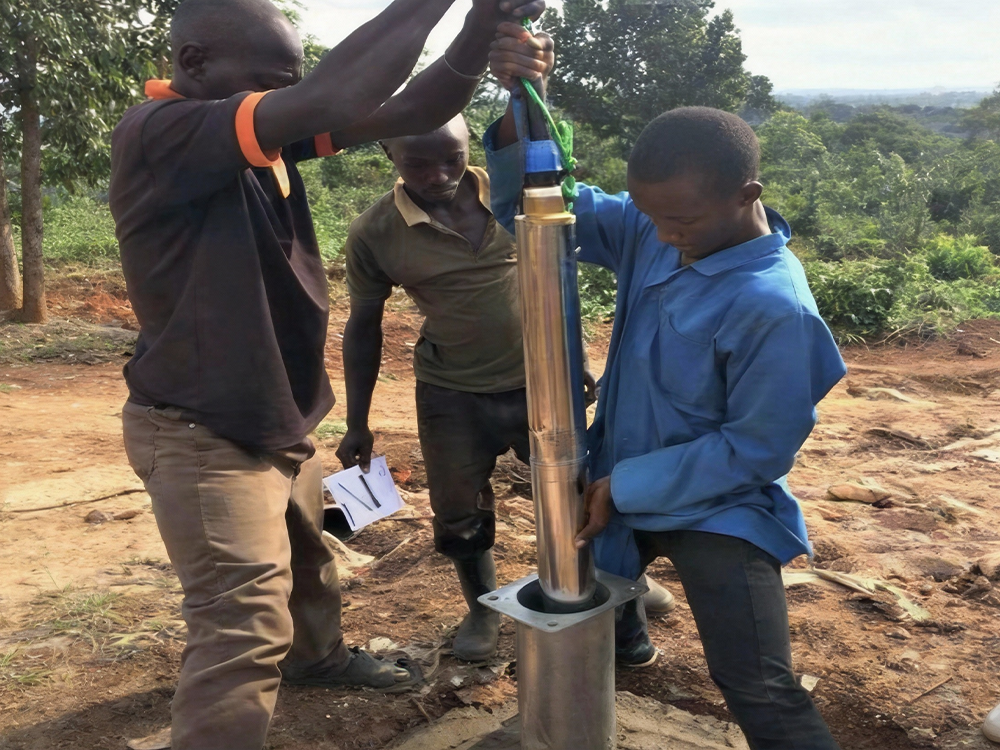

Submersible Well Pump Installation: 5 Details Critical for Pump Lifespan

A submersible well pump is a significant investment hidden deep within your well, out of sight but central to your water supply. Its lifespan—often expected to be a decade or more—is not merely a matter of product quality. In reality, submersible pump installation practices are the decisive factor between years of reliable service and premature, costly failure.

 A deep well submersible pump operates in a demanding environment, facing challenges from shifting water levels, electrical demands, and physical forces. Overlooking critical installation details can lead to issues like sand abrasion, motor burnout, or hydraulic shock, drastically shortening its service life.Master these five details to secure the full lifespan engineered into your pump and safeguard your water supply for the long term.

1. Correct Pump Depth; Managing Dynamic Water Level

To ensure the continuous operation of your deep well water pump, you must accurately determine its placement relative to the water supply. Proper depth provides dry running protection and helps prevent the pump from suctioning damaging sediment.

• Determine Dynamic Water Level: Measure the level where the water stabilizes during active pumping. The unit must be positioned at least 10–20 feet (3–6 meters) below this point to account for seasonal fluctuations or heavy usage.
• Maintain Bottom Clearance: Avoid lowering the equipment to the very bottom of the shaft. Keep a minimum gap of 5–10 feet (1.5–3 meters) from the base to prevent the intake of silt and debris, which can clog internal components and overheat the motor.
• Submergence for Cooling: The water surrounding the motor acts as a coolant. If the depth is too shallow, the unit may be exposed to air, causing rapid thermal damage.

2. Selecting the Proper Cable Size for Well Pumps

Choosing the best wire gauge for submersible pump is not just about power; it is about protecting the motor from destructive voltage drops. If the wire is too thin for the depth of your well, the motor will pull more amperage to compensate for the lost voltage, leading to overheating and premature failure.

• Sizing for Distance: Always calculate the wire gauge based on the total distance from the controller to the motor. For deep installations, a thicker gauge is required to ensure consistent performance.
• Waterproof Splicing: Since the wire connections will be submerged indefinitely, using a shrink heat tube (heat shrink kit) is mandatory. These adhesive-lined tubes create a watertight seal over your wire crimps, preventing short circuits and corrosion that could ruin the pump.
• Safe Surface Integration: For solar well pump or hybrid water pump, use MC4 connectors at the wellhead. These provide a UV-resistant, plug-and-play connection that is much more reliable than standard electrical tape or wire nuts for outdoor exposure.

• Longevity Tip: Always test the insulation resistance (Megger test) after splicing the submersible well pump wire but before lowering the pump into the well to ensure your shrink heat tube has created a perfect seal.

Flowatt submersible pump wire gauge chart

3. Protecting Against Water Hammer with Check Valves

A check valve (one way valve) is an essential component designed to prevent backflow in your piping system. When the well water pump is active, the liquid pressure forces the valve open; however, the moment the pump stops, the reversal of flow triggers the valve to snap shut. This mechanism is the primary defense for your water system, helping it maintain constant pressure while preventing backspin, upthrust, and mechanical fatigue.

• Preventing Water Hammer: Without a functional one way valve, the sudden reversal of a heavy water column can create a high-pressure shockwave known as water hammer. If you are researching how to fix water hammer in an existing system, the solution often involves inspecting or adding high-quality spring-loaded valves. These prevent the loud banging noises and vibrations that can lead to pipe bursts or motor damage.
• Standard Installation Guidelines: It is recommended that at least one check be installed in all installations. Ensure the check valve is rated for the maximum pressure of your pump to avoid premature failure.While many modern units come with an internal component, relying solely on it is a risk. We recommend installing an external check valve in the discharge line within 25 feet of the pump and below the draw-down level of the water supply.
• Deep Well Considerations: For more complex setups, deep well check valve placement becomes critical. In deep wells, we recommend that check valves be installed every 200 feet to distribute the immense weight of the water column across multiple points. This strategy is one of the most effective water hammer prevention methods, ensuring that no single valve bears the full force of the hydraulic shock.

4. Controller Setup; Intelligent Protection Systems

A professional water well pump setup requires a well pump control box. Whether using a grid-tied system or a solar well pump, the control system serves as the critical safeguard for your investment.

• Solar Well Pump Controller: Specifically designed for solar well pump systems, this controller manages energy from PV panels while providing advanced water well pump protection. It regulates charging voltage for battery storage and features built-in overvoltage protection to shield the motor from power spikes.
• Comprehensive Circuit Safety: High-quality controllers offer a full suite of electrical defenses, including overcurrent protection to prevent motor burnout, short circuit protection to mitigate fire risks, and reverse polarity protection to prevent damage from incorrect wiring during installation.
• Submersible Well Pump Control Box: For traditional AC installations, the submersible well pump control box provides the necessary starting torque and houses safety relays to ensure the motor operates within safe parameters.
• Smart Monitoring: Modern systems provide real-time feedback, allowing users to monitor system health and troubleshoot issues directly from the surface.

5. Sand Mitigation and Water Quality Filtration

The presence of sediment is one of the leading causes of premature equipment failure. To ensure long-term reliability, your water well pump setup must include strategies to filter sand and debris before they reach the internal moving parts.

• Preventing Abrasive Wear: Sand acts like sandpaper on the internal impellers of your equipment. By utilizing a sand filter pump or a specialized intake screen, you can block large particulates from entering the system. This is a critical layer of water well pump protection that prevents the motor from seizing and the impellers from wearing down.
• Maximizing Well Pump Lifespan: Clean water is the secret to a long well pump lifespan. When a pump is forced to move "dirty" water, the friction increases heat and mechanical stress. Implementing a robust filtration strategy ensures the motor operates under optimal conditions, significantly reducing the frequency of repairs and replacements.
• Surface Filtration: In addition to intake protection, installing a sediment filter at the surface—before the water enters your pressure tank or storage system—ensures that any fine silt that bypasses the initial screen is captured. This protects your home’s plumbing and appliances while maintaining the integrity of the entire system.

Post Installation Checklist to Ensure Reliable Pump Operation

Before fully commissioning your water well pump setup, follow this final checklist to ensure system integrity and maximize your well pump lifespan.

• Electrical Safety Inspections: Double-check that the submersible well pump control box is wired correctly. Ensure all overvoltage, overcurrent, and reverse polarity protection settings are active on your solar well pump controller to prevent circuit damage.
• Inspect Waterproof Seals: Confirm that the submersible well pump wire splices are fully encased in shrink heat tubes. A compromised seal is the leading cause of short circuits in deep well environments.
• Check Valve Functionality: Test the check valve (one way valve) by shutting off the pump and monitoring the pressure gauge. If the pressure drops immediately, the valve may be stuck or installed in the wrong direction, risking a water hammer event.
• Validate Pump Depth: Ensure the unit is submerged at the correct dynamic water level and is not resting in silt. Proper placement provides essential water well pump protection against dry-running and sand intake.
• Flush the System: Run the sand filter pump or discharge line for several minutes to filter sand and construction debris out of the pipes before connecting to your irrigation or livestock watering lines.
• Test External Connections: Inspect all MC4 connectors at the surface to ensure they are snapped tight and UV-protected, providing a weather-resistant link between your power source and the controller.
