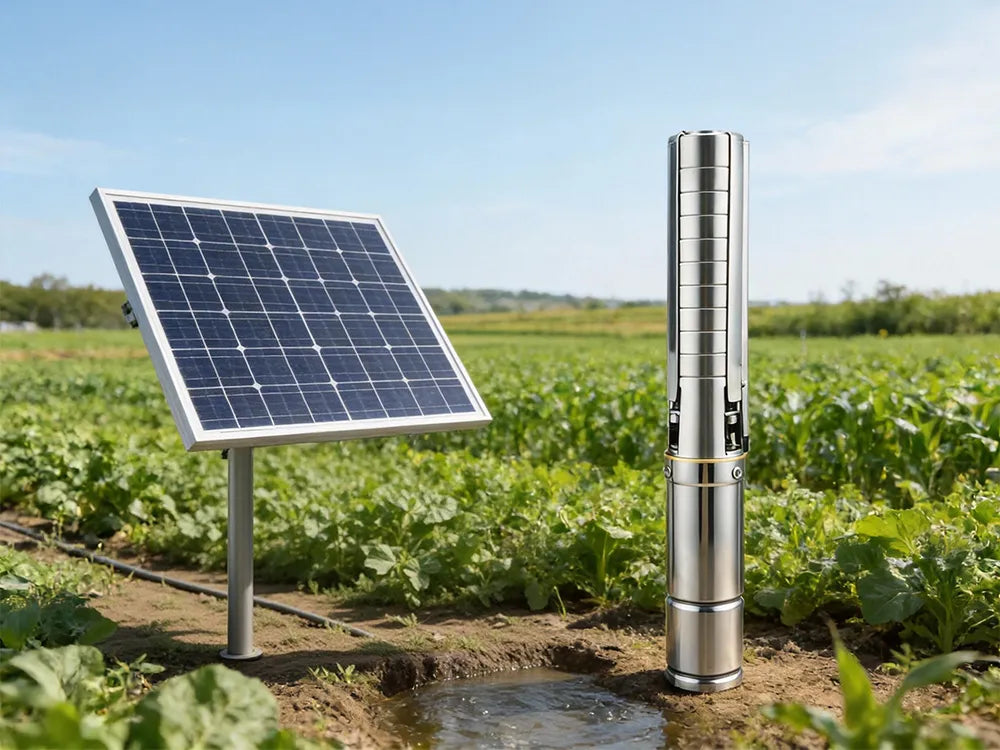

Can a Solar Water Pump Connect to a Battery Box?

January 17, 2026

Which Solar Water Pumps Can Connect to a Battery Box?
How to Connect Solar Water Pump to Battery Box
How to Matching Pump Voltage and Battery Voltage?
How Do You Choose the Right Battery Box?
Which Mistakes to Avoid When Connecting a Solar Pump?

For those relying on solar panels for off grid living, weather is the biggest variable.A standard solar powered water transfer pump excels in direct sun, but its performance fluctuates during cloudy days or overcast weather, often leading to weak flow or inconsistent pressure. Furthermore, without a water storage solution, a solar water pump system cannot support on-demand water needs once the sun begins to set.

Connect to Battery Box is the ultimate fix to ensure system reliability. By acting as energy storage, it stores surplus power generated during peak hours, smoothing out solar energy dips during grey skies and providing a dependable water supply well into the evening. A successful setup requires more than just a basic connection.

Which Solar Water Pumps Can Connect to a Battery Box?

Not every type solar water pump can connect to battery boxes. To ensure safety and efficiency, it is crucial to understand that only specific types of pumps—primarily AC/DC Hybrid models—are engineered for this setup.

AC/DC Hybrid Solar Water Pumps

AC/DC Hybrid Solar Pumps are the gold standard for battery integration. Unlike standard direct-drive pumps, these units feature advanced hybrid controllers with built-in AC/DC conversion and management functions. This allows the hybrid charge controller to act as a centralized hub for all energy sources.

Dual-Source Capability: These systems are engineered to accept DC power directly from solar panels during the day and seamlessly transition to a battery box (or AC grid power) when solar radiation drops. The hybrid controller automatically rectifies and regulates these different inputs to keep the pump running.
Seamless Switching: Most hybrid models include an "automatic switch" function within the controller. When the sun sets or clouds block the light, the system senses the voltage drop and begins drawing power from the battery box reservoir without interrupting the water flow.
Superior Durability: Because they are built to manage fluctuating power sources, these pumps include high-quality circuit protection. The AC/DC hybrid controller ensures the motor receives a stabilized current, allowing it to handle the consistent, high-amperage output provided by batteries without overheating.

Comparison: DC Water Pump vs AC/DC Hybrid Pump

Feature	DC Water Pump (No Battery)	AC/DC Hybrid + Battery Box
Performance in Clouds	Fluctuating; water flow decreases as solar intensity drops.	Sustained Performance; battery kicks in to maintain full power.
Nighttime Availability	Only operates during daylight hours.	24/7 water supply reliable water access even after sunset.
Daily Water Output	Dependent on peak sunlight hours and intensity.	Maximised Yield; achieves higher daily volume through continuous operation.
Best Application	Well water storage tank and daytime irrigation.	Farm and home supply, livestock watering, and automated irrigation.
Return on Investment	Cost-effective for simple, daytime-only needs.	Highest Value; delivers a fully automated, worry-free water solution.

How to Connect a Solar Water Pump to a Battery Box

Connecting your system correctly is vital to prevent "frying" your sensitive electronic components. For high voltage water pump, follow these essential steps to AC/DC water pump ensure safety and efficiency:

Warning: AC power supply and DC power supply cannot be connected at the same time!!!!

1. Mount the Solar Power Charge Controller

Most battery-integrated systems require a specialized solar power charge controller—specifically an AC/DC hybrid type—to sit between the pole mounted solar array, the battery box, and the AC/DC solar water pump. This hybrid controller is the "brain" that manages multiple power inputs and converts energy to the specific voltage your 90V pump requires.

2. Connect the Battery BOX First

Always connect the solar battery or battery bank to the controller before the solar panels.

Voltage Logic: While a single 12V battery is common for small diaphragm pumps, high-voltage well water pumps like the Flowatt 192V AC/DC Solar Submersible Pump typically require a bank of batteries connected in series (e.g., multiple 12V or 48V LiFePO4 batteries).
With the proper setup, a high-capacity 48V battery can be used along with a DC-DC voltage booster to safely power the pump, ensuring reliable operation even during cloudy days or off-grid conditions.
Battery to Controller Wiring (L/N Terminals): In AC/DC hybrid setups, the battery input is often labeled L (Positive) and N (Negative). Correct wiring is essential to avoid damaging the system and to ensure the smooth flow of energy from the battery box.
Calibration: Connecting the battery first allows the hybrid charge controller to "wake up" and calibrate itself to the correct system voltage (whether it is 12V, 24V, 48V, or higher).

3. Wire the Water Pump

Connect the AC/DC water pump leads to the corresponding terminals on the hybrid charge controller (typically labeled as U, V, W for three-phase motors, or Positive/Negative for standard DC motors).

Follow the Labels: Carefully match the pump wires to the controller's output terminals to avoid damaging the system.
Check Rotation: For U/V/W systems, if the water flow is weak, try swapping any two wires to ensure the motor is spinning in the correct direction.

4. Connect Solar Panels

Finally, connect the solar panels in series or parallel, depending on the system voltage requirements of the hybrid charge controller.Verify the positive (P+) and negative (P-) leads with a multimeter before plugging them in, as reversed wiring can instantly "fry" the hybrid charge controller.

Once secured, the panels will charge your lithium solar batteries, 48V lifepo4 batteries, or nimh battery packs, allowing the battery boxes to provide steady, reliable power to the AC/DC solar water pump even during overcast

How to Matching Pump Voltage and Battery Voltage?

For an AC/DC hybrid system to function, the voltage of your solar battery must be perfectly synchronized with the pump's requirements. High-voltage systems operate at higher DC levels to maximize efficiency and reduce energy loss through heat.

Matching Logic for 192V Systems: If you have a 192V AC/DC solar water pump, your battery boxes must be configured to output a nominal 192V. This typically requires sixteen amped batteries (12V each) connected in series ( $12\text{V} \times 16 = 192\text{V}$ ).
High Voltage BMS Requirements: In these high-voltage scenarios, the battery box must utilize a specialized High Voltage BMS (Battery Management System). This ensures that every individual cell within your 48V LiFePO4 battery modules or NiMH battery strings is balanced, ensuring the AC/DC water pump’s internal inverter receives the exact, stable voltage required for high-head or high-volume delivery.
Safety First: When working with 192V DC water pump, the risk of electrical arc and shock is high. Ensure your amped batteries are housed in a secure, insulated enclosure and that all connections are tightened to manufacturer specifications to prevent "frying" the hybrid charge controller.

How Do You Choose the Right Battery Box?

Selecting the correct battery box is vital for a high-voltage AC/DC solar water pump. The AC DC charge controller manages the system, while the batteries inside provide stable energy for reliable operation.

Key Factors for Selecting a Battery Box

Voltage Capacity: The enclosure must be large enough to house sixteen amped batteries (12V each) connected in series to meet the 192V requirement.
Chemistry Compatibility: Ensure the solar power charge controller and box are rated for your specific lithium solar batteries, 48v lifepo4 battery, or NiMH battery types.
Integrated Management: For high voltage systems, a matching BMS (Battery Management System) is essential to balance cells and prevent unstable voltage from "frying" the pump's internal inverter.
Safety & Protection: Choose a weather-resistant (IP65) solar battery box with integrated DC breakers or fuses to protect your amped batteries from moisture and electrical faults.

Which Mistakes to Avoid When Connecting a Solar Pump?

Correct installation is the only way to ensure your high voltage AC/DC hybrid pump system operates reliably without expensive equipment failure. By understanding the common pitfalls, you can protect your solar power charge controller and ensure your solar water pump delivers consistent performance for years to come.

Incorrect Connection Sequence: Never connect the panels before the battery. You must always connect your solar battery to the solar power charge controller first so the system can calibrate to the correct voltage (e.g., 192V).
Ignoring Polarity: Failing to verify the positive (P+) and negative (P-) leads with a multimeter can instantly "fry" your solar water pump or charge controller for solar panel.
Voltage Mismatch: Attempting to run a AC/DC water pump with an underpowered battery box will cause system failure. Ensure your amped batteries are correctly wired in series to meet the pump's specific voltage demands.
Poor Ventilation: Avoid trapping heat inside the battery box. A solar power charge controller needs airflow to prevent overheating and thermal shutdown during peak operation.
