When you need steady water pressure for a faucet, shower, car wash, garden spray, or off-grid tank transfer, a diaphragm pump is often the most practical choice.
This article explains what a diaphragm pump is, how it works, and where it performs best in real applications—from high-flow water transfer and food-grade liquid handling to oil transfer and vehicle washdown.
What Is a Diaphragm Pump?
A diaphragm pump (also called a diaphragm water pump) is a positive displacement pump that moves liquid by the reciprocating flex of a sealed flexible membrane—the diaphragm. The diaphragm keeps the fluid separated from the motor, crank, and other drive parts, so internal leakage is minimal and the pump is well suited to clean, sealed, and pressure-boosting applications.
Unlike a centrifugal pump, which relies on a high-speed spinning impeller to create flow, a diaphragm pump transfers liquid through repeated “suction–discharge” volume changes. That design delivers several practical advantages:
- Strong self-priming ability: A self-priming diaphragm pump can draw liquid from a lower water level or a defined suction lift without pre-filling the pump (suction lift depends on the model for example, the Flowatt FLW-0142YD-24-30 has a suction lift of 1.5 m).
- Dry-run capability Short periods of empty running or an unfilled line are less likely to burn out the pump.
- Stable pressure output: Ideal as a water pressure booster pump for boosting, spraying, car washing, and other continuous-pressure jobs.
- Low noise and low vibration: Especially with DC diaphragm pumps or brushless motor options—well suited to RV freshwater systems, indoor water supply, and quiet environments.
- Wide fluid compatibility: With the right diaphragm and valve materials, the same pump family can handle clean water,food-grade liquids, or even diesel and lubricating oil (always choose the matching pump type).
A diaphragm pump is a compact pressure pump that “pushes and pulls” liquid with a membrane. It is small, easy to install, and widely used for home water boosting, garden irrigation,solar diaphragm pump / off-grid water supply, RV fresh water systems, car wash spray, and portable cleaning applications.
How Does a Diaphragm Pump Work?
At the heart of a diaphragm pump is a flexible sealed membrane (the diaphragm), plus an inlet valve and an outlet valve. A motor drives the diaphragm back and forth, changing the pump chamber volume to complete a continuous suction–discharge cycle. Taking Flowatt DC diaphragm pumps as an example, the process works like this:
1. Suction stage (chamber expands)
The diaphragm pulls back, the chamber volume increases, and negative pressure forms inside. The inlet check valve opens and the outlet valve closes, so liquid is drawn in through the suction port. That is why a self-priming diaphragm pump can pull water from a tank, jerry can, rain barrel, or similar source.
2. Discharge stage (chamber contracts)
The diaphragm pushes forward, the chamber volume shrinks, and pressure rises. The inlet valve closes and the outlet valve opens, forcing liquid into the discharge line with steady flow and pressure. This is what makes the pump effective for water pressure boosting, spraying, and continuous supply.
3. Check valves control flow direction
The inlet and outlet valves keep liquid moving in one direction only, prevent backflow, and help maintain more stable pressure at a spray gun, faucet, or nozzle.
4. Diaphragm sealing isolates the fluid
The diaphragm separates the liquid from the motor and drive parts, reducing leakage risk. That same working principle supports different Flowatt product lines for different media:
| Product type | How the working principle shows up in use |
|---|---|
|
High Flow Diaphragm Pumps
|
Higher flow output for tank-to-tank transfer, IBC tote filling/draining, farm irrigation, jobsite water moving, and dock washdown
|
|
Food Grade Diaphragm Pumps
|
Same push–pull membrane action, with fluid-contact materials suited to drinking water, RV freshwater, beverages, and food-related liquids
|
|
Oil Transfer Diaphragm Pumps
|
Same principle, with matched diaphragm and valve materials for clean transfer of diesel, engine oil, gear oil, and similar fluids
|
|
Car Wash Diaphragm Pumps
|
Focused on stable pressure for car-wash boosting, foam/detergent delivery (compatible liquids), mobile detailing, and equipment rinse
|
Why this working method suits everyday boosting and spray jobs
Because a diaphragm pump is a positive displacement pump: each stroke moves a relatively fixed volume of liquid. Compared with a centrifugal pump that depends on a high-speed impeller, it holds pressure more steadily in mid-to-low pressure spray, faucet/shower boosting, RV water supply, and solar diaphragm pump / off-grid watering setups. It also offers strong dry-run tolerance, so short empty running or an unfilled line is less likely to burn out the pump.
What Are Diaphragm Pumps Used For?
A diaphragm pump is compact, self-priming, and delivers stable pressure—ideal for water pressure boosting, spraying, water transfer, and clean liquid handling. Based on Flowatt’s lineup, common uses fall into four categories:
1. High Flow Diaphragm Pumps
High flow diaphragm pumps focus on faster water moving and steady supply for spray or rinse jobs:
- Tank, reservoir, and IBC tote transfer: Quickly move water between containers without manual scooping—useful for farms, jobsites, and off-grid storage.
- Large tank filling and draining: Speed up refill, water change, or tank emptying during routine maintenance.
- Farm irrigation and remote watering: Supply drip/spray lines; pair well with a solar diaphragm pump / DC system where grid power is limited.
- Jobsite water moving and light dewatering: Temporary supply, washdown, and small standing-water transfer with easy relocation.
- Marine and dock washdown: Deck rinse, dock cleaning, and light onboard freshwater delivery.
- Low-noise indoor or small commercial supply: Quieter DC diaphragm pumps for offices and noise-sensitive spaces.
- Hydroponics and small irrigation: Steady flow for indoor grow systems and greenhouse micro-setups.
- Garden spraying and light cleaning: Portable spray for watering, misting, and light outdoor rinse work.
2. Food Grade Diaphragm Pumps
Food grade diaphragm pumps use materials suited to drinking water and food-related liquids:
- Drinking water transfer and pressurization: Move clean water to faucets or filters and improve weak household pressure.
- RV and camper fresh water systems: Act as an RV water pump from the freshwater tank to kitchen and bathroom outlets.
- Beverage transfer: Handle juice, tea drinks, and syrup in small prep or dispensing setups where cleanliness matters.
- Small food processing and dispensing: Support liquid transfer and fill-assist tasks in workshops or small lines.
- Portable potable-water setups: Pressurize drinking water from cans or tanks for camping and outdoor use.
3. Oil Transfer Diaphragm Pumps
Oil transfer diaphragm pumps are for oily media (choose matching materials), not ordinary water boosting:
- Diesel refueling: Transfer diesel from drums/tanks to generators and equipment with less spill and waste.
- Engine oil and lubricant service: Cleaner, faster oil/lubricant extraction and refill during maintenance.
- ATF and gear oil in workshops: Move higher-viscosity fluids in auto shops and repair bays.
- Drum-to-container dispensing: Decant bulk oil into smaller containers for inventory and on-site use.
- Industrial lubrication supply: Assist machines that need regular, controlled top-ups.

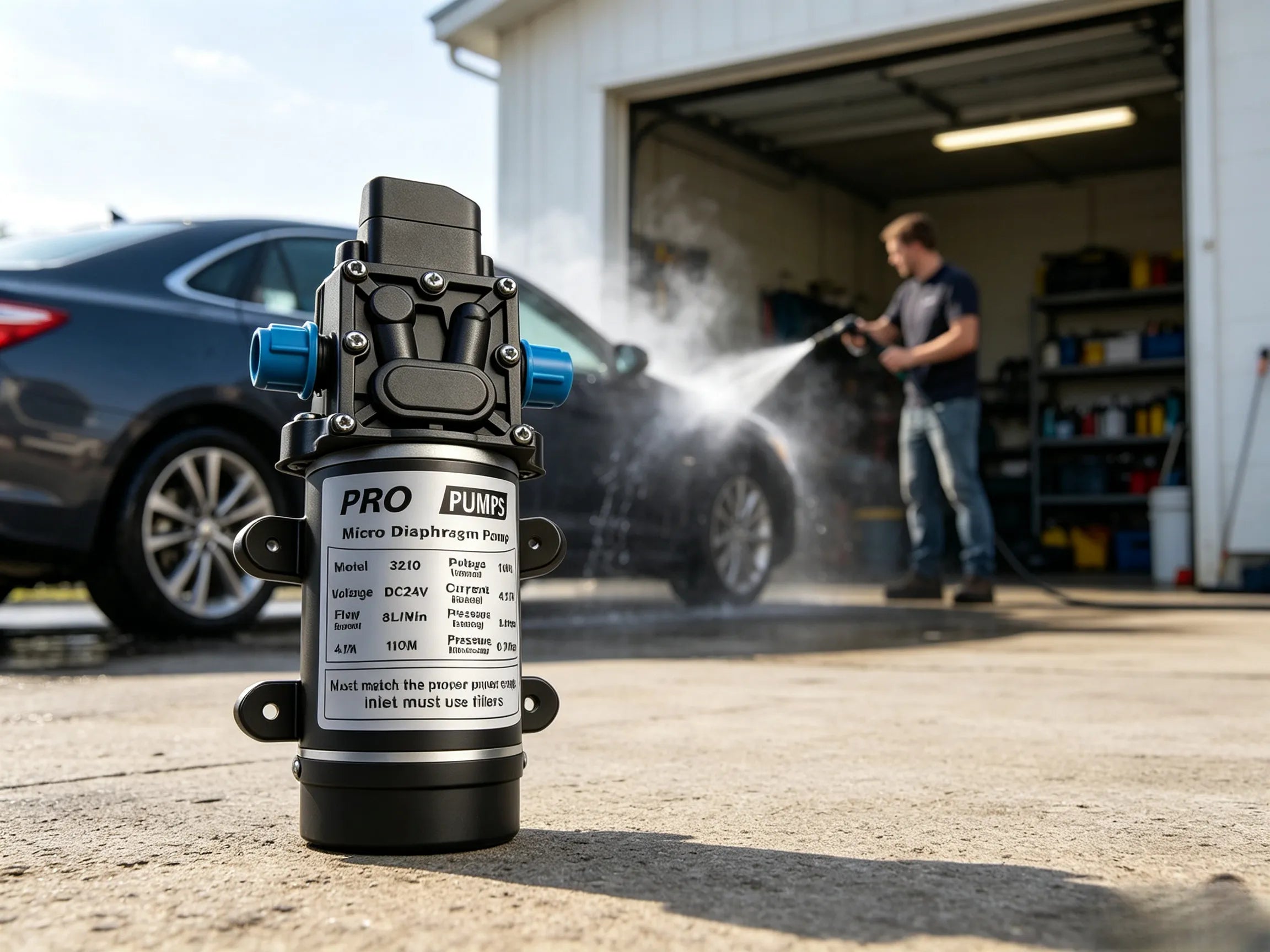

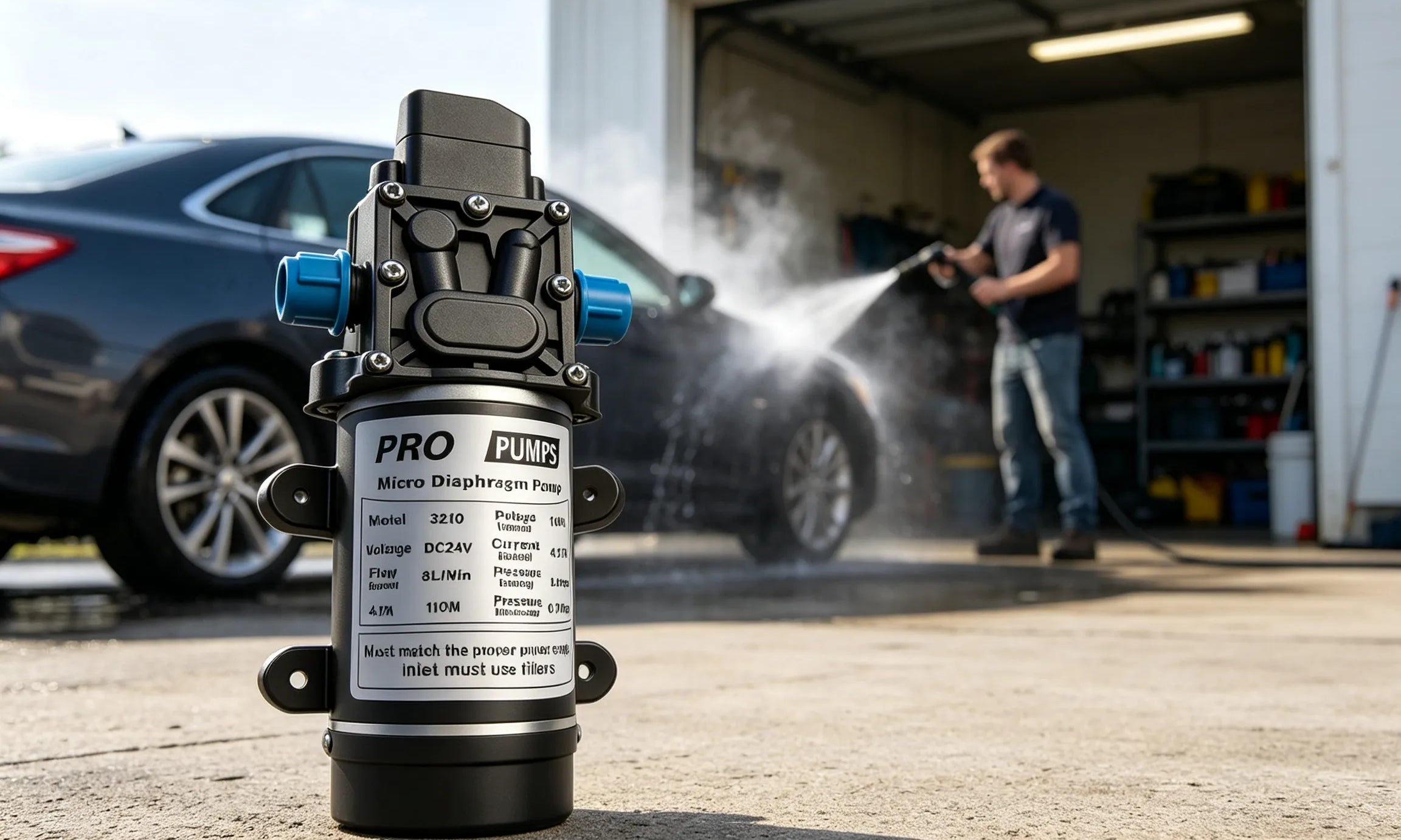

4. Car Wash Diaphragm Pumps
Car wash diaphragm pumps prioritize stable pressure for spray guns and rinse work:
- Car wash pressure boosting: A water pressure booster pump improves spray-gun performance when city pressure is weak or you draw from a tank.
- Foam and detergent delivery: Feed compatible foam/cleaning liquids into spray systems for pre-wash and cleaning.
- Mobile detailing systems: Build portable pump + tank + spray-gun setups for mobile wash work.
- Vehicle, boat, and equipment rinse: Stable-pressure washdown for cars, boats, farm machines, and outdoor equipment.
- Self-service wash bay supply: Continuous spray-gun water with more consistent flow and pressure.
