Does Pump Outlet Size Affect Solar Water Pump Flow Rate?

• What Is Pump Outlet Size?
• Relationship Between Outlet Size and Flow Rate
• How to Choose the Right Outlet Size?

In a water pump system, the pump outlet size is an important but often overlooked factor. While many users focus on flow rate and head, the outlet diameter also affects how efficiently water moves through the system. It does not directly increase water output, but it influences resistance and therefore impacts the actual flow rate.

In solar pumping and irrigation systems, a mismatched outlet size can reduce performance and cause pressure loss. Understanding the relationship between pump outlet size and well flow rate is essential for proper system design and pump selection.

What Is Pump Outlet Size?

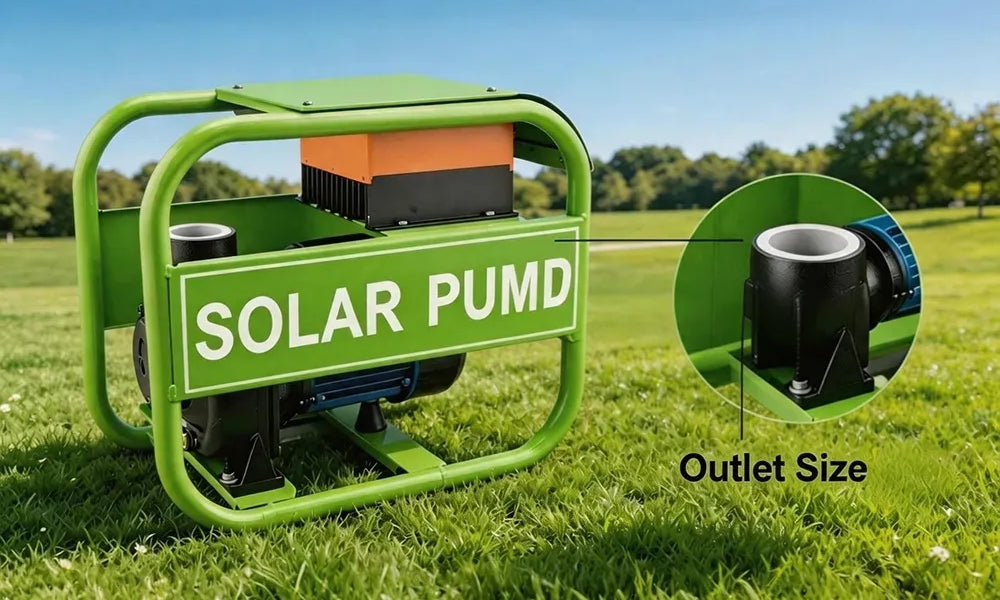

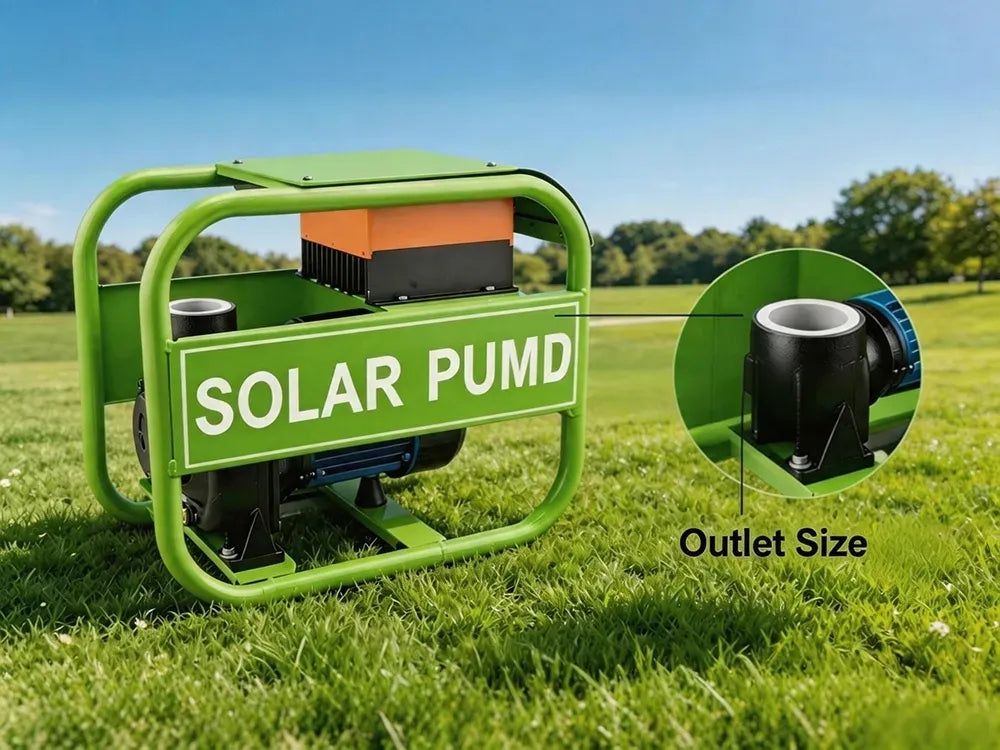

The pump outlet size refers to the diameter of the pump’s discharge port where the pipeline is connected. It is typically measured in inches, ranging from 1 inch to 6 inches. This size determines how water exits the pump and enters the piping system.

At Flowatt, our pumps are available with outlet sizes from 1 inch to 6 inches, covering a wide range of applications from small residential water supply systems to large-scale agricultural irrigation projects. Generally, smaller outlet sizes are suitable for low-flow, short-distance applications, while larger outlet sizes are designed for high-flow and long-distance water delivery.

Pump Outlet Size Conversion Chart

Relationship Between Outlet Size and Flow Rate

1. Direct Impact of Outlet Size on Flow Rate

• With fixed pump power and head, the outlet size primarily affects flow velocity rather than absolute flow rate
• According to the continuity equation, Flow Rate = Pipe Cross-Sectional Area × Flow Velocity; a larger outlet reduces velocity while flow rate may remain unchanged
• An undersized outlet creates a throttling effect, acting as a bottleneck that restricts the pump's actual output and increases friction losses through pipe fittings

2. The Critical Role of Friction Loss in Pipe Systems

• Outlet size must match the connected pipe diameter; mismatched sizes generate excessive friction loss in pipe systems
• Pipe wall roughness, number of elbows, and total pipe length all amplify friction losses, further reducing the actual flow rate at the discharge point
• An oversized outlet paired with undersized piping causes turbulence and energy waste, significantly degrading overall system efficiency

3. Pump Performance Curve as the Decisive Factor

• The actual flow rate of a solar water pump is governed by its pump performance curve, which illustrates the trade-off between flow rate and total dynamic head (TDH)
• Outlet size contributes only a fraction of the total system resistance; TDH is the true limiting factor for flow rate
• Motor power, impeller design, and solar panel input wattage have a far greater impact on flow rate than outlet size alone

4. Practical Sizing Recommendations

• Always match the outlet size to the pump's rated specifications — never oversize or undersize blindly
• Select the pump model based on target flow rate and required head first, then verify whether the outlet size is compatible with your existing piping
• For long-distance water conveyance, comprehensively evaluate pipe diameter, material, and outlet size to keep friction losses through pipe fittings within acceptable limits

How to Choose the Right Outlet Size?

1. Define Your Actual Water Demand

• Start by determining your target flow rate (m³/h or L/min) and required head (m) — these are the core criteria for pump selection
• Consider your application scenario: drip irrigation, sprinkler systems, livestock watering, or household water supply — each has different pressure and flow requirements
• Estimate daily water consumption and peak usage periods to avoid oversizing or undersizing the pump

2. Consult the Pump Performance Curve

• Every water pump comes with a manufacturer-provided performance curve showing actual flow rates at different head values
• Locate your operating point on the curve to confirm whether the model meets your flow and head requirements
• Note: the flow rate on the curve is theoretical; actual output must account for friction losses through pipe fittings

3. Calculate Total Dynamic Head (TDH)

• TDH = Static Head (vertical lift) + Friction Loss Head + Outlet Pressure Requirement
• The longer the pipeline, the more elbows installed, and the smaller the pipe diameter, the greater the friction loss in pipe systems — requiring higher pump head
• Use friction loss charts or online calculators to estimate pipeline losses in your pipe systems — simply match your pipe size and flow rate to find the loss value

4. Match Outlet Size to Pipe Diameter

• Prioritize pump models whose outlet size is consistent with or close to your main pipe diameter
• Common sizing guidelines:
  • Small residential/garden pumps: 1" ~ 1.5" outlet
  • Medium agricultural irrigation pumps: 2" ~ 3" outlet
  • Large deep-well/long-distance transfer pumps: 3" ~ 4" and above
• If reducer fittings are necessary, use gradual taper reducers to avoid sudden diameter changes that cause turbulence and additional friction losses through pipe fittings

5. Verify Solar Power Compatibility

• Confirm that the total solar panel wattage can support the motor power consumption at your target operating point
• Check that the controller (MPPT) voltage and current specifications are compatible with the pump
• Under low light conditions, the pump may run at reduced frequency, decreasing both flow rate and head — build in adequate safety margin

6. Allow for Future Expansion

• If you may expand irrigation area or extend water transfer distance later, you can upsize the piping, but the pump outlet size must still match its rated parameters
• Never attempt to "boost" flow simply by enlarging the outlet — without sufficient power support, this is ineffective and wastes energy in your pipe systems
