1HP Shallow Well Pump Buying Guide

What Wells Are Shallow Well Pumps Designed For?

A shallow well water pump is designed for wells with a relatively high water level, where the pump can draw water from near the surface (ponds, tanks, and water reservoirs)—not for deep wells that need a submersible well pump at the bottom.

The key measurement is static water level (the vertical distance from the pump suction inlet to the water surface when the pump is off), not just the total depth of the well casing.

In general, a shallow well pump works best when:

• The static water level stays within about 25 feet (7.5 m) of effective suction lift
• The water supply is stable and does not drop below the suction limit during pumping
• You need moderate flow for home water supply, garden irrigation, or light farm use

A standard shallow well pump—including most 1HP shallow well pump models—is usually not the right choice when:

• The static water level often exceeds the effective suction range
• The well is deep, or the water level drops sharply in dry seasons

How Deep Can a 1HP Shallow Well Pump Pull Water?

When you buy a 1HP shallow well pump, the number that matters most is not total well depth—it is maximum suction lift: the vertical distance from the pump installation point to the water surface. If that distance exceeds the pump’s suction limit, a shallow well water pump may lose flow, struggle to prime, or run dry.

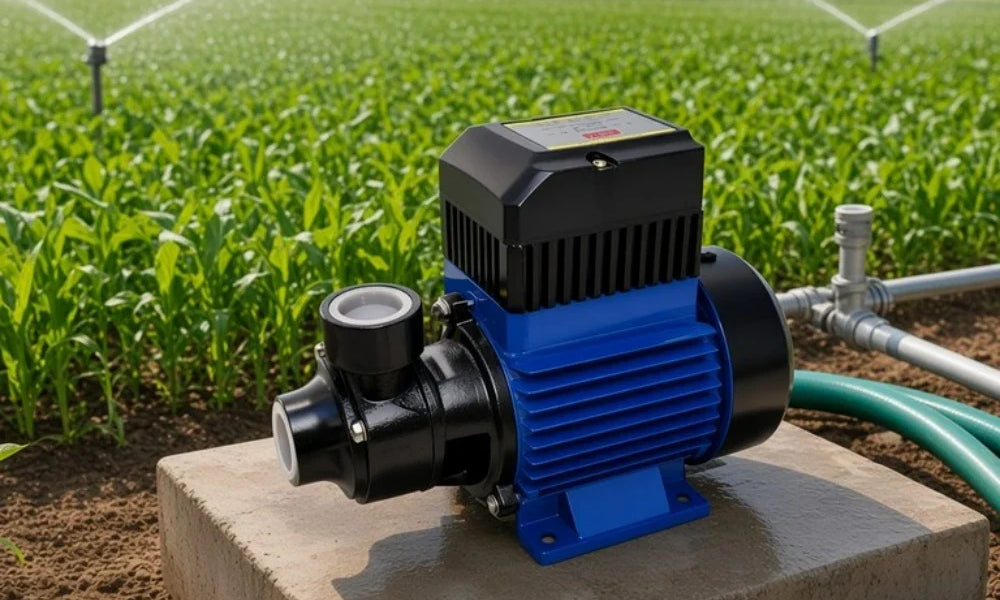

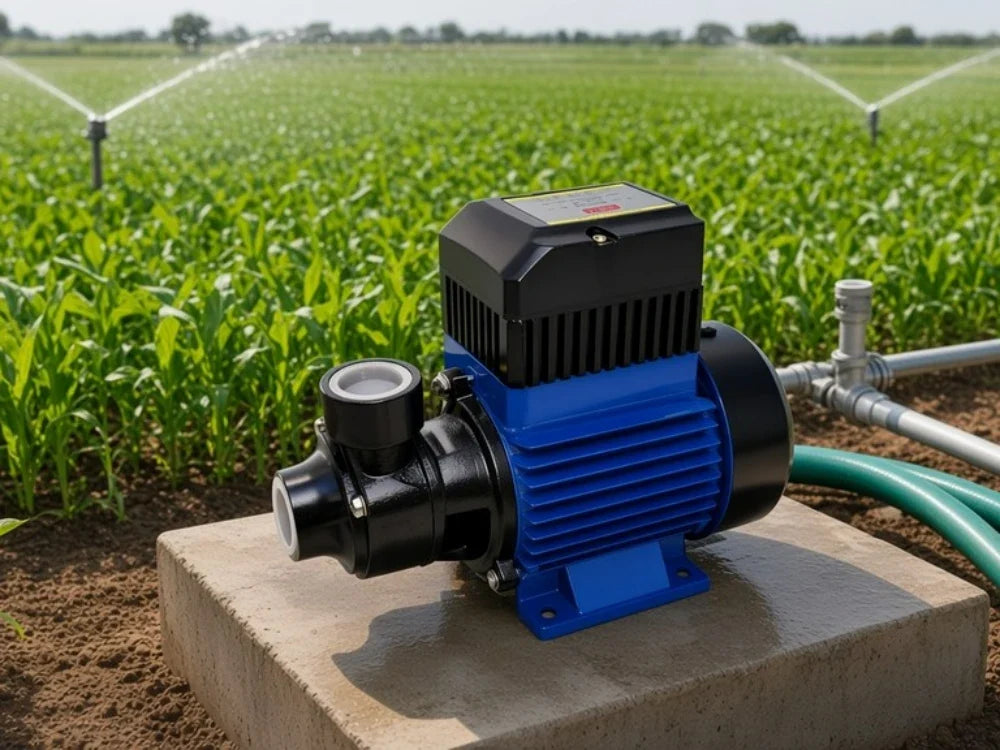

Take Flowatt 1HP (750W) solar shallow well centrifugal pump (SKU: FLW-SQB1.8/60-D72/750) as a example:

• Power: 750W (1HP)
• Max suction (MAX SUC.): 8 m (about 26 ft)
• Max head: 60 m
• Max flow: 1,800 L/h

So this 1HP shallow well pump is designed for shallow wells where the static water level is generally within about 8 meters (26 feet). In practice, effective draw depth is often a bit less than the rated suction lift because of:

• Long suction piping or too many elbows
• Clogged filters or air leaks in the suction line
• Higher elevation or changing water temperature
• Water-level drop while the pump is running

Specs to Confirm Before Buying a 1HP Shallow Well Pump

When you shop for a 1HP shallow well pump, horsepower alone is not enough. What really decides stable water supply is suction lift, flow, head, voltage, and connection size. Check these specs one by one before you buy.

1. Max Suction Lift

This is the first filter for any shallow well water pump. Confirm that your static water level stays within the rated suction range. For example, our 1HP (750W) model offers about 8 m (26 ft) of max suction—suitable for shallow wells, not deep-well applications.

2. Flow Rate (GPM / L/h)

Estimate demand by use case: home supply, garden irrigation, or livestock watering. Too little flow means weak supply; too much can waste power. Compare the pump’s max flow, then check performance at your required head—not only the peak number.

3. Max Head and Pressure (PSI)

Head tells you how high and how far water can be delivered; pressure affects faucet performance. For long piping runs, multi-level buildings, or steady household pressure, verify max head carefully instead of focusing only on the 1HP label.

4. Voltage and Power Type

Confirm AC mains (such as 115V/230V) or solar DC (such as 72 Vdc). The wrong voltage can prevent startup or damage the controller. For a solar shallow well pump, also check MPPT/internal controller support and matching solar panel configuration.

5. Inlet / Outlet Size

A common size is 1 inch. Port size affects plumbing parts and install cost, so make sure it fits your existing pipework.

6. Controls and Accessories

Check whether you need a pressure switch, pressure tank, internal/external controller, remote management, or RS-485. Household pressure systems usually need a tank; solar direct-drive setups focus more on controller-to-panel matching.

7. Materials and Protection

Pump body, impeller, seals, and dry-run protection all affect service life. Cast-iron bodies are common on surface pumps; brass impellers and stainless fasteners generally improve durability.

Quick Decision: Should You Buy a 1HP Shallow Well Pump?

If you need a well pump for home water supply, garden watering, or small-farm irrigation—and your water source is a shallow well, pond, or river—a 1HP shallow well pump is often the smartest buy. It delivers reliable daily flow without overspending on unnecessary power.

Buy 1HP if you need:

• Moderate head and steady everyday water flow
• A compact pump for home, garden, or light agricultural irrigation
• A cost-effective, energy-efficient option for shallow water sources

Consider a higher-power or deep well pump if you need:

• Deep well pumping
• Large-area irrigation
• Long-duration, high-load continuous operation

Bottom line:For shallow water sources and everyday residential or light farm use, choose a 1HP shallow well pump. If your depth, distance, or irrigation area is much larger, upgrade to a higher-capacity model. Confirm your required head, flow rate, and installation conditions before you buy—this helps you pick the right pump the first time.
