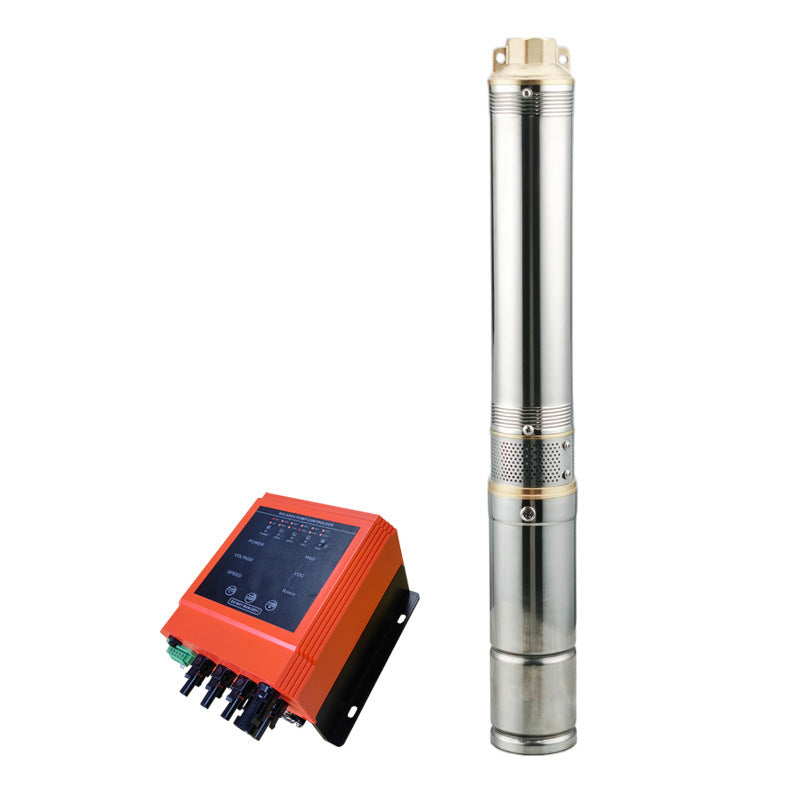

3inch 72VDC 750W 95M Stainless Steel Solar Deep Well Pump

Item is in stockHurry! Low inventoryItem is out of stock Item is unavailable

3inch 72VDC 750W 95M Stainless Steel Solar Deep Well Pump

$258.67 USD~~$369.52 USD~~

1. 3Inch Solar Submersible Borehole Pump With 1"Outlet, 750W(1HP), Ideal For Off-Grid Solar Water Pump For Irrigation
2. Max Head 95m, Flow ≈ 0; Max Head 40m, Flow ≈ 2.5m³/h, Irrigates 0.30ha (5mm/Day, 6h/Day)

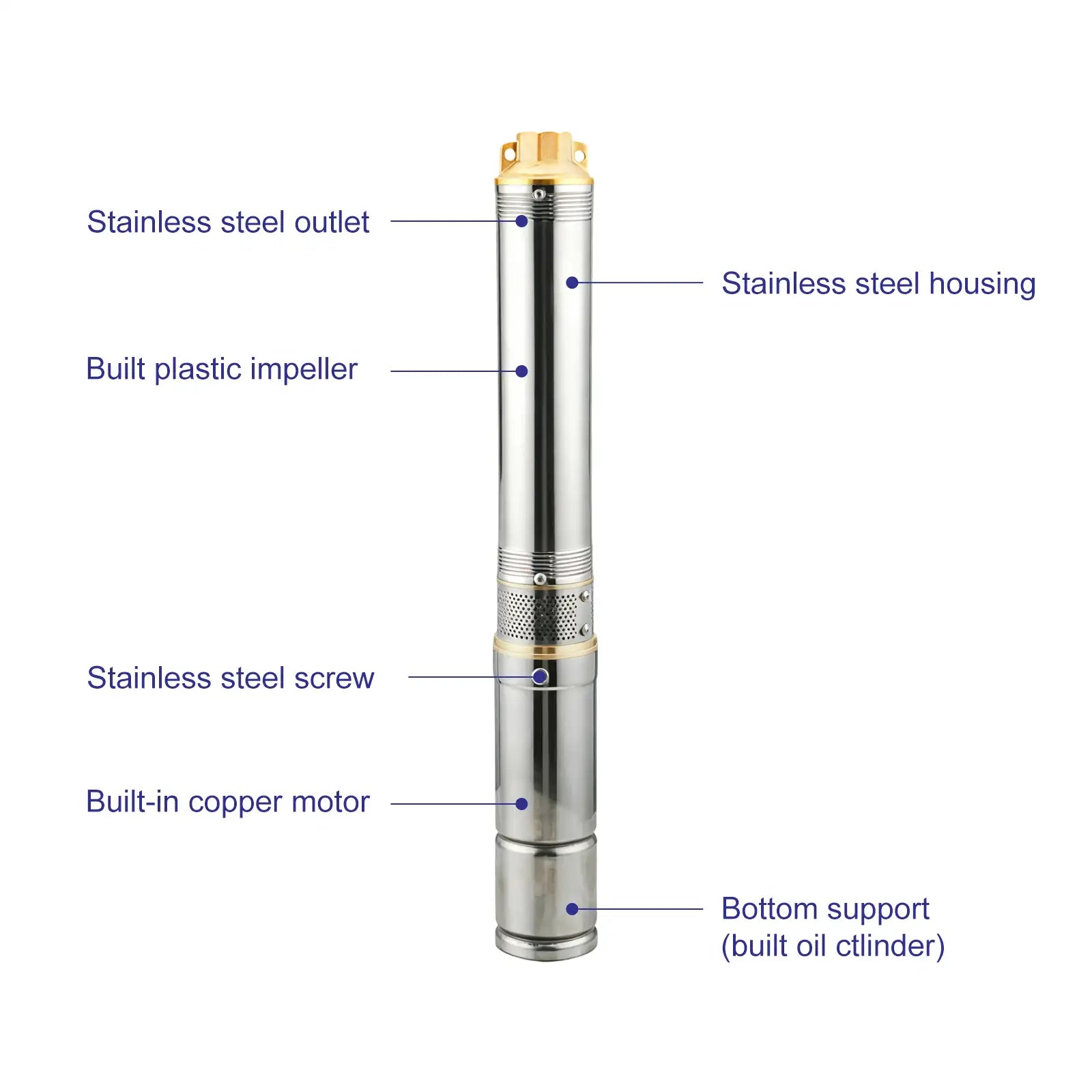

3. Durable Stainless Steel Body and Reinforced Nylon Impeller
4. Smart MPPT Controller With Comprehensive Safety Protections

Feature	Specification
Inlet Size	3 inch
Outlet Size	1 inch
Power	750W (3 HP)
Rated Voltage	72 Vdc (60~220 Vdc)
Max Flow	3,800 L/HR

Quantity

1
2
3
4
5
6
7
8
9
10 +

Quantity


95m High Head, 3-Inch Pump Ideal for Deep Well Applications

This compact 3-inch solar submersible water pump is specifically engineered for challenging deep well applications. Boasting a maximum head of 95 meters, it delivers powerful and reliable water extraction performance, even when operating in limited, narrow well spaces.

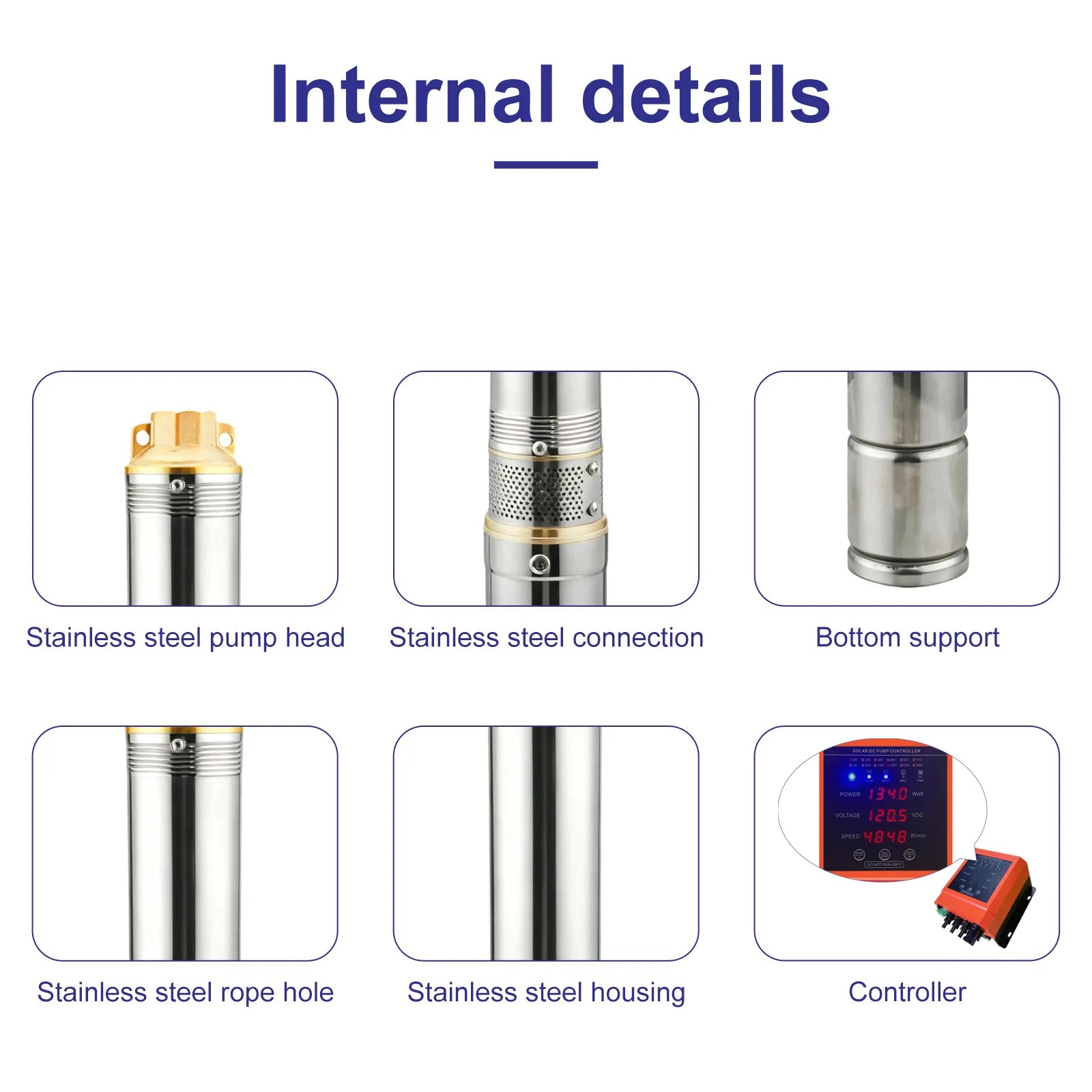

Flowatt water pump solar charge controller

750W Low-Power DC Motor, Direct Solar Drivea

Our 750W(1HP) solar submersible water pump utilizes an efficient PMSM DC motor, supporting a 60-220Vdc wide voltage input. It is designed for direct solar drive, achieving over 90% efficiency and completely eliminating the need for costly external batteries, providing a simple, energy-saving solution.


Solar Panel Configuration

Unit Panel Voltage = 42 Vmp / 51.7 Voc
Unit Panel Power = 550 W
Panel Quantity = 2 Pcs In Series

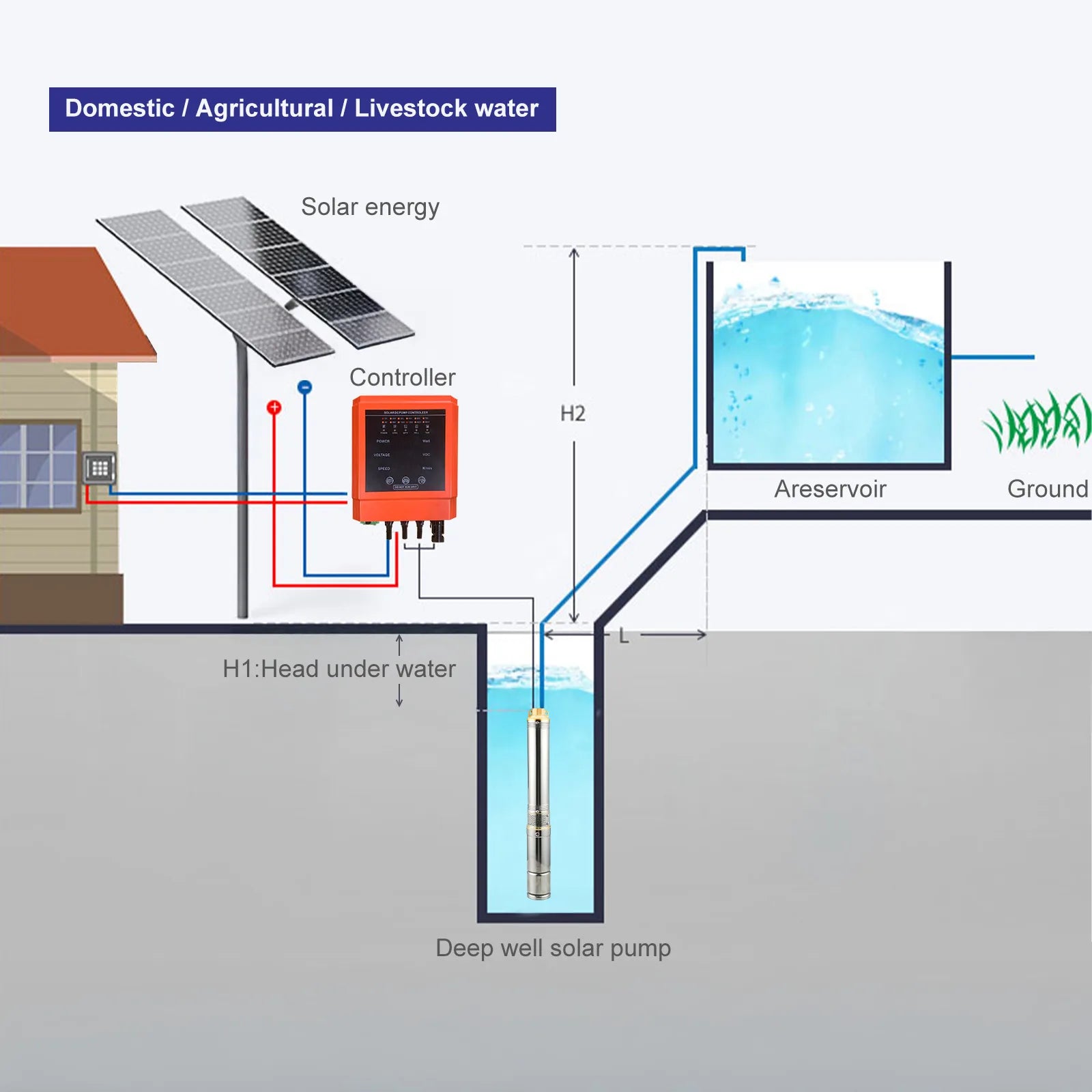

Solar Deep Well Pump System

How It Works:
Solar Energy: Solar panels convert sunlight into electrical power.
Controller: The solar pump controller regulates the pump's operation, optimizing performance for water pumping.
Deep Well Pump: The submersible pump efficiently draws water from deep underground, delivering it to a reservoir or irrigation system.

Domestic water pump / Home water supply

Off-grid water system. Reliable solar water pump for home water supply, household use, kitchen washing, and off-grid home water systems.

Is this solar water pump suitable for household daily use?

Yes, it provides stable water pressure for daily home water supply when paired with a storage tank.

Livestock water pump/ Cattle watering pump

Use this text to share information about your brand with your customers. Describe a product, share announcements, or welcome customers to your store.

Can this solar pump supply water for livestock all day?

Yes, it pumps water during sunlight hours and works with tanks for continuous livestock water supply.

Solar Water Pump for Farm Irrigation & Crop Watering

High-efficiency solar water pump for farm irrigation, crop watering, and sprinkler systems in off-grid agricultural areas.

What irrigation systems can this solar water pump support?

This solar irrigation pump works with drip irrigation, sprinkler systems, and field watering for farms.

A 95m max head pump is typically suitable for a static water level of about 45–70m (150–230ft) for reliable flow.
For a 750W 72V solar submersible pump, plan on 2–3 pieces of 550W solar panels, depending on your sunlight conditions and whether you need a solar pump for deep well irrigation to run more consistently.
Yes. A 750W (72V) solar submersible pump can run with a battery when it is connected to the correct 72V solar pump controller and a compatible battery system. This setup is often used when customers want a solar deep well pump with battery backup for more stable water supply.

A 3-inch submersible pump is typically suitable for a well casing with an inside diameter (ID) of at least 3.5 inches (≈90 mm). This clearance makes installation easier, helps prevent the pump from rubbing the casing, and improves cooling and long-term reliability.
FLW-3SPC3.8/95-D72/750) Standard setup: 1-inch (25mm) pipe — best for short runs and normal household/tank filling
For longer distance / better flow: step up to 1.25-inch (32mm) or 1.5-inch (40mm) pipe after the first section to reduce friction loss and keep stronger flow
A 3-inch 72V 750W solar submersible pump can push water hundreds of meters horizontally after lifting, but only if the total dynamic head (vertical lift + friction loss) stays within the performance curve. Using a larger discharge pipe size is the best way to increase horizontal pumping distance and maintain higher flow.
Pipe friction loss (horizontal distance, pipe size, elbows/valves)
- 50m head → ~1.9 m³/h
- 60m head → ~1.5 m³/h
- 70m head → ~0.8 m³/h
- 95m head → 0 m³/h (max head, no flow)
This is why a solar well pump for long distance water transfer must keep friction losses low.
