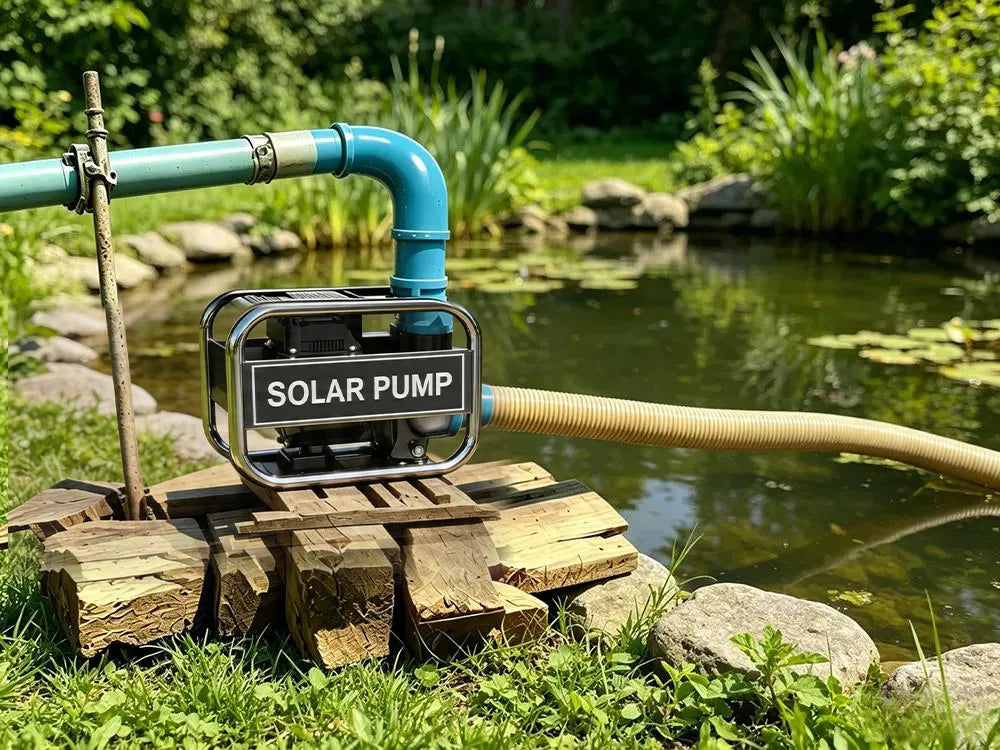

Centrifugal pumps have a suction lift limitation: they cannot lift water from a water source(e.g., ponds, lakes, or shallow wells) more than approximately 8 meters below the pump. But why?
This limit is important for ensuring the efficient operation of the centrifugal pump and avoiding potential damage. In this article, we'll explore why this 8-meter suction lift limit exists and what happens when it's exceeded,and most importantly, how to avoid it.
What is Pump Suction Lift?
Suction lift is a term used to describe the vertical distance between the free surface of a water source and the centerline of a centrifugal pump when the water source is located below the pump. In other words, it is the height the pump must 'pull' the water upward to bring it into the impeller.
Unlike a flooded suction arrangement—where liquid flows into the pump by gravity—suction lift requires the centrifugal pump to create a partial vacuum at its inlet. Atmospheric pressure then pushes the liquid up from the supply tank or well into the pump. The greater the suction lift, the harder the centrifugal pump must work to maintain this vacuum, and the lower the pressure becomes at the pump inlet.
For example, if a centrifugal pump is installed on a platform 5 meters above a water tank, and the water surface is 5 meters below the pump centerline, the suction lift is 5 meters. This value is critical because it directly affects the pump's net pressure suction head and, consequently, its ability to operate without cavitation.
Reasons for Suction Lift Limitations in Centrifugal Pumps
Suction lift in centrifugal pumps is the vertical distance between the water source and the pump's centerline. The limitations on suction lift are critical because they affect the pump's efficiency and operational reliability. Several factors contribute to these limitations:
- Atmospheric Pressure Limit – At sea level, atmospheric pressure can theoretically support a water column of about 10.33 meters. After accounting for friction losses through pipe fittings, vapor pressure, and a safety margin to prevent cavitation, the practical and reliable suction lift limit for most centrifugal pumps is approximately 8 meters. This is a physical limitation, not a design flaw.
- Pipe Size and Friction Losses: The diameter of the suction pipe, typically made from PVC, plays a significant role in suction lift limitations. Smaller pipe diameters lead to higher friction losses, reducing the available suction head and making it harder for the pump to lift water. Using a larger diameter pipe can help reduce these losses and maintain effective suction.
- Total Discharge Head: The total discharge head, which is the sum of the vertical lift and friction losses in the system, affects the pump's ability to maintain suction. A high discharge head will reduce the suction lift, as the pump has to work harder to overcome both the lift and the resistance in the pipes.
- Vapor Pressure and Temperature: If the liquid temperature increases, its vapor pressure rises, which reduces the available suction head. The closer the system is to the vapor pressure of the liquid, the more likely cavitation will occur, limiting the suction lift.
- Air Leaks and Seal Integrity: Any air leaks in the suction line or pump seals will reduce the pressure at the pump inlet, leading to a drop in suction efficiency and the potential for cavitation, further limiting the suction lift.
- Net Positive Suction Head (NPSH) Requirement:Every pump requires a minimum NPSH to avoid cavitation. Exceeding the 8-meter suction lift makes it impossible to meet this requirement.
By addressing these factors, it’s possible to optimize centrifugal pump performance and reduce the limitations imposed by suction lift.
2inch 48VDC 550W 30M Cast lron Solar Surface Centrifugal Water Pump
2inch 48VDC 550W 30M Cast lron Solar Surface Centrifugal Water Pump
2inch 110VDC 1500W 17M Cast lron Solar Surface Centrifugal Water Pump
4inch 200VDC/VAC 2200W 20M Cast lron Centrifugal Water Pump
What Happens When the Suction Lift Limit Is Exceeded?
When the suction lift limit of centrifugal water pumps is exceeded (typically more than 8 meters below the water source for a standard suction lift pump configuration), the following problems occur:
-
Cavitation occurs – The pressure inside the pump drops below the water's vapor pressure, causing water to vaporize into bubbles at the impeller inlet. These bubbles then travel to higher-pressure zones and collapse violently.
-
Noise and vibration increase – The collapsing bubbles produce a characteristic rattling or "gravel-crushing" sound, along with strong mechanical vibration that can be felt on the pump casing.
-
Flow rate and pressure drop sharply – The impeller cavity becomes filled with vapor instead of liquid, preventing the pump from effectively moving water. As a result, the discharge pressure fluctuates or falls, and the flow rate decreases significantly or stops entirely.
-
Pump components are damaged – The repeated bubble implosions generate microscopic shock waves that erode the impeller and pump housing, creating a pitted, honeycomb-like surface. Over time, this leads to reduced efficiency, seal leakage, bearing wear, and eventually complete pump failure.
How to Avoid Suction Lift Limitations in Centrifugal Pumps
To avoid suction lift limitations in centrifugal pumps, operators must first recognize the risks: exceeding the suction lift limit (typically over 8 meters below the water source) does not simply reduce performance—it actively destroys the pump through cavitation, vibration, and material erosion. The best prevention is to keep the vertical distance between the pump and the water source within the recommended 8-meter limit.
If a greater lift is unavoidable, alternatives such as using a submersible well pump, relocating the pump closer to the water level, or implementing a booster system should be adopted to prevent costly failures and downtime. Finally, if you are unsure which solution is right for your application, please do not hesitate to contact us.
