How to Connect Solar Panels to a Water Pump (Step-by-Step Guide)

marzo 04, 2026

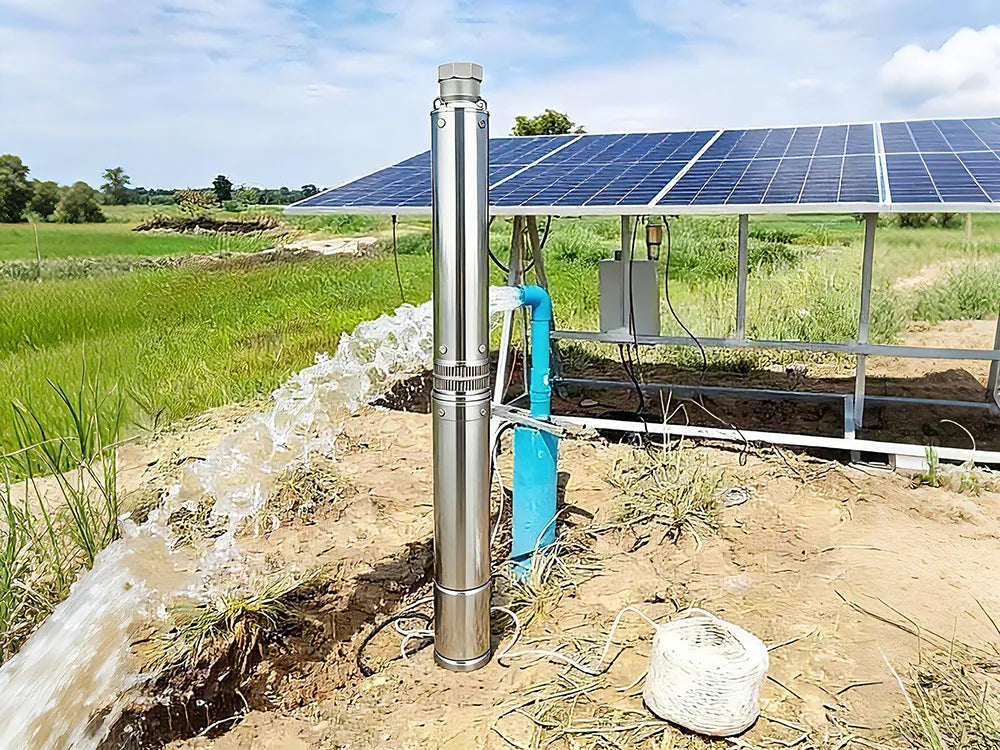

Solar panels connected to a water pump for irrigation system setup

How Many Solar Panels to Run a Water Pump?
Connecting Solar Panels to a Water Pump: Step-by-Step Guide

Harnessing the sun to pump water is an increasingly popular solution for irrigation, livestock, and off-grid living. If you're looking to achieve energy independence, understanding how to properly configure your system is crucial. The first question most people ask is, "How many Solar Panels do I need?" However, the real magic happens in the connection process.

Choosing the right solar panel for water pump applications is only half the battle; ensuring that the power flows seamlessly from the array to the device is what makes your solar water pump run efficiently for years to come. In this guide, we will walk you through the exact steps to make that vital connection.

How Many Solar Panels to Run a Water Pump?

Determining the exact number of Solar Panels required to power your system isn't about guesswork—it's about matching energy production with energy consumption.

To get an accurate estimate, you will need to use a Solar panel calculator, which typically requires three key pieces of information: the wattage of your solar water pump, the number of hours you plan to run it daily, and the average peak sun hours in your location.

But what does this look like for different types of pumps? If you're wondering about powering a 2 hp pool pump, your calculator will likely reveal the need for a robust array, often exceeding 2,000 watts depending on runtime.

For those searching for a solar panel for pool pump specifically, the calculation must also account for seasonal changes in sunlight. And if your project involves submersible water well pumps 2hp, remember that total dynamic head (well depth and pipe friction) adds to the energy load.

By plugging your specific data into a reliable Solar panel calculator, you can move from a rough estimate to a precise system design that ensures your solar water pump has enough power to operate reliably, even when conditions aren't perfect.

Connecting Solar Panels to a Water Pump: Step-by-Step Guide

After using a solar calculator to determine the appropriate system size, the next step is bringing all the components together. Properly connecting your solar panel for water pump system is critical for both safety and performance. A single loose connection or mismatched polarity can lead to efficiency losses or even permanent damage to your equipment.

Whether you're setting up a small irrigation system or powering a farm, the wiring process follows a logical order: first, harness the power from the sun, then regulate it, and finally deliver it to your pump. Below, we break down each stage of connecting your solar panel for water pump setup, from the initial panel wiring to the final test run.

Connect Solar Panels to the MPPT Solar Charge Controller

Follow these steps to properly connect your solar array to the MPPT solar charge controller:

Identify Terminals: Locate the PV input terminals on your MPPT solar charge controller. They are clearly marked as p+ (positive) and p- (negative).
Check Polarity: Before connecting, verify that the positive wire from your solar panel matches the p+ terminal and the negative wire matches the p- terminal. Reversing polarity can damage the controller.
Make Connections: Using appropriate solar cables, connect the positive lead to p+ and the negative lead to p-. Ensure all connections are tight and secure.
Verify Input: Once connected, check the controller's display or indicator lights to confirm it's receiving power from the panels. This ensures the MPPT solar charge controller is ready to transmit optimized power to the pump controller in the next step.

⚠️ Note: Always connect the panels to the MPPT solar charge controller before connecting to the pump controller. This prevents backfeed and protects your equipment from damage.

Connect the MPPT Charge Controller to the Water Pump

Follow these steps to connect your solar charge controller for water pump to the pump itself:

1. Connect Power Wires

Locate the output terminals on your solar charge controller for water pump. These are typically labeled U, V, and W for three-phase pumps.
Connect the three-phase wires from your solar water pump to the corresponding U, V, and W terminals on the controller. Match each wire carefully—incorrect phasing can cause the pump to run backwards or not start at all.
Ensure all connections are tight and secure to prevent arcing or voltage drop during operation.

2. Connect Water Pump Level Sensor

If your system includes automatic level control, locate the dedicated Water Pump Level Sensor port on the controller. This port typically contains the following terminals with specific functions:

Terminal	Function
TL	Tank Low (low water level sensor)
TH	Tank High (high water level sensor)
WEL	Well (water source level sensor)
COM	Common ground for all sensors

Connect the sensor wires according to your specific system configuration and water source setup:
- TL and TH terminals connect to sensors installed in your storage tank—these prevent tank overflow when full and protect the pump from dry running when water is low
- WEL terminal connects to the well or water source sensor—this critical safety feature shuts down the pump immediately if the water source drops below the intake level
- COM terminal serves as the common ground wire connection shared by all sensors, completing the circuit for accurate signal transmission
Proper sensor connection allows your solar charge controller for water pump to automatically start and stop the solar water pump based on actual water demand and availability. This automation not only conserves water but also extends pump life by preventing unnecessary operation.

3. Final Check

Double-check all U, V, and W power connections for correct phasing and tightness—consider using a multimeter to verify continuity if unsure
Verify that every level sensor wire (TL, TH, WEL, and COM) is connected to its correct terminal according to your system diagram
Inspect all connections to ensure no bare copper wire is exposed outside the terminals, and use cable ties or conduit to organize wiring neatly

Note: Refer to your specific solar charge controller for water pump manual for exact terminal locations and sensor wiring configurations, as they may vary between models and manufacturers.

Test the Solar Water Pump Connection

Follow these steps to verify your system is operating correctly:

1. Pre-Power Inspection

Check all terminal connections: p+, p-, U, V, W, TL, TH, WEL, and COM for tightness and exposed wires
Verify p+ and p- polarity on the MPPT solar charge controller—reversed polarity can damage the controller instantly
Confirm Water Pump Level Sensor wires (TL, TH, WEL, COM) are connected to their correct ports as shown in your manual

2. Power-On Test

Expose your solar panel for water pump array to direct sunlight with no shading on any panel
Check the MPPT solar charge controller display—it should show input voltage from panels and output status to pump
The solar water pump should start smoothly within seconds; listen for any unusual noise or vibration

3. Performance Verification

Check voltage and current at U, V, and W output terminals—values should be balanced and stable
Verify water flow from the solar water pump meets expected pressure and volume for your system
Test sensor functions: TL starts pump (tank low), TH stops pump (tank full), WEL stops pump (dry well protection)

4. Safety Check

After 10-15 minutes, feel the MPPT solar charge controller and terminals (p+, p-, U, V, W)—they should be warm, not hot
Check controller display for any error codes related to pump or sensor operation
Observe one full cycle to ensure pump starts/stops correctly based on sunlight and water levels

Note: If pump fails to start, disconnect power and check p+/p- polarity, U/V/W phasing, and sensor connections (TL, TH, WEL, COM). Consult your controller manual for troubleshooting steps.
