Quick Answer
A 2 HP irrigation pump typically irrigates 2–10 acres depending on water flow rate, irrigation system type (drip or sprinkler), and total dynamic head (TDH).
If you’re shopping for a 2 HP irrigation pump, the first question on your mind is probably: How many acres can it actually water? It seems like a simple question, but the answer isn’t a fixed number.That’s because the coverage of a 2 HP irrigation pump depends on several key factors — including types of irrigation systems, types of water pumps, water source, and elevation changes. In this guide, we’ll walk you through exactly what affects coverage and show you how to estimate acres for your specific setup.
Factors That Determine Coverage Area
How many acres can a 2 HP irrigation pump actually water? The answer depends on four main categories of factors. Below is a breakdown of each:
1. Water Pump Types(Centrifugal Pump, Submersible Pump, etc.)
The types of water pumps you select — centrifugal water pump, submersible, or turbine — determine how efficiently you can move water from its source. Centrifugal pumps are ideal for shallow wells (water depth under 8 meters) but lose efficiency with elevation changes. Submersible pumps, on the other hand, excel in deep wells and uphill irrigation, often delivering more acres per HP than centrifugal models
2. Irrigation System Type(drip, sprinkler, etc.)

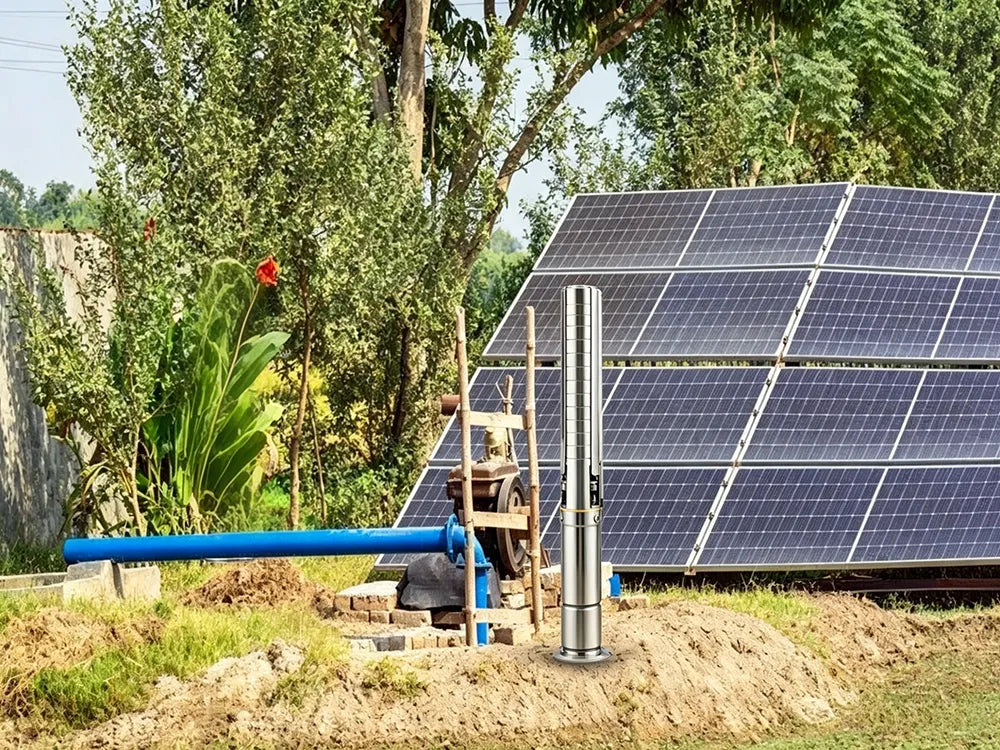

Your irrigation system choice directly impacts how many acres a 2 HP pump can cover. Using Flowatt 2 HP solar submersible water pump, max flow 9 m³/h (SKU: FLW-4SSC9/130-AD192/1500 (ACDC)) as an example:
- Drip irrigation: Slow and precise application → Covers 3-4 acres (at 40m head, flow = 5.4 m³/h)
- Sprinkler irrigation: Faster application over wider area → Covers 1.5-2 acres (at 60m head, flow = 3 m³/h)
- Flood irrigation: Large volume, quick application → Covers 0.75-1 acre (at 0m head, max flow = 9 m³/h)
Note: Our FLW series is a submersible water pump – no suction lift issues, ideal for deep wells or fluctuating water sources.
3. Water Source and Elevation Changes
Your water source (pond, river, or well) and land elevation directly affect how many acres a 2 HP irrigation pump can cover.
For a centrifugal water pump, suction lift is limited to about 7-8 meters. If your water table is deeper, the pump won't work at all. A submersible water pump has no such limit — it sits directly in the water and pushes up from any depth.
Elevation changes also matter. Every 10 meters of vertical lift reduces flow. A 2 HP pump that delivers full flow on flat ground may lose 30-50% of its flow when pumping up a hill. That means fewer acres per hour.
Note: For deep wells or hilly terrain, choose a submersible pump or a high-head centrifugal pump designed for elevation.
Estimating Acre Coverage for a 2 HP Pump: Solar vs Grid-Tied
A 2 hp irrigation pump covers different acreage depending on its power source. A grid-tied pump runs at constant flow for 8-10 hours, delivering 40-60 tons of water per day. A solar powered water pump runs only 4-6 sun hours, delivering 15-30 tons daily.
Use this acre calculator logic: daily output ÷ crop need = acres.
For a 2 hp submersible pump or 2 hp centrifugal pump, solar typically covers 40-60% of grid-tied acreage — but with zero electricity cost.
General Guidelines Based on Pump Output
Here’s what normal pumping output looks like for a 2 HP pump:
| Pump Type | Normal Pumping Output (daily) | Typical Flow Rate |
|---|---|---|
| Grid-tied 2 HP | 40-60 tons | 25-35 GPM |
| Solar 2 HP (5 sun hours) | 15-25 tons | 4-6 m³/h (avg) |
| Solar 2 HP + battery | 30-40 tons | 25-35 GPM (peak) |
Normal pumping output varies by head height and pipe size. Lower head = higher output. Use these guidelines before running your own calculations.
How to Calculate 2 HP Water Pump Coverage?
To figure out how many acres your 2 hp submersible pump can water, you need to start with the pump's flow rate at your specific operating head. Using our Flowatts 2 HP solar submersible pump as an example, at 40 meters of head (well depth plus pipe friction), the pump delivers about 5.4 m³/h. At 60 meters, flow drops to 3.0 m³/h. At 100 meters, it's down to 0.7 m³/h. The higher your head, the less water you get.
Once you know your flow rate, use this formula to find daily output: Flow (m³/h) × Sun Hours × 0.75 = Daily Output (tons). For a typical location with 5 sun hours and 40m head, that's 5.4 × 5 × 0.75 = 20.25 tons per day.
Then convert daily output to acres: Daily Output ÷ Crop Water Need = Acres. Drip irrigation needs about 4 tons per acre per day, so 20.25 ÷ 4 = 5.1 acres. Sprinkler irrigation (6 tons/acre/day) gives you 3.4 acres. Flood irrigation (10 tons/acre/day) gives you about 2 acres.
For quick reference, this 2 hp submersible pump at 5 sun hours with drip irrigation covers: 8.4 acres at 0m head, 5.1 acres at 40m head, or 2.8 acres at 60m head. Add battery backup for 3-4 extra hours of runtime, and you can roughly double those numbers.
