SKU: FLW-L1078YD-24-400TFS

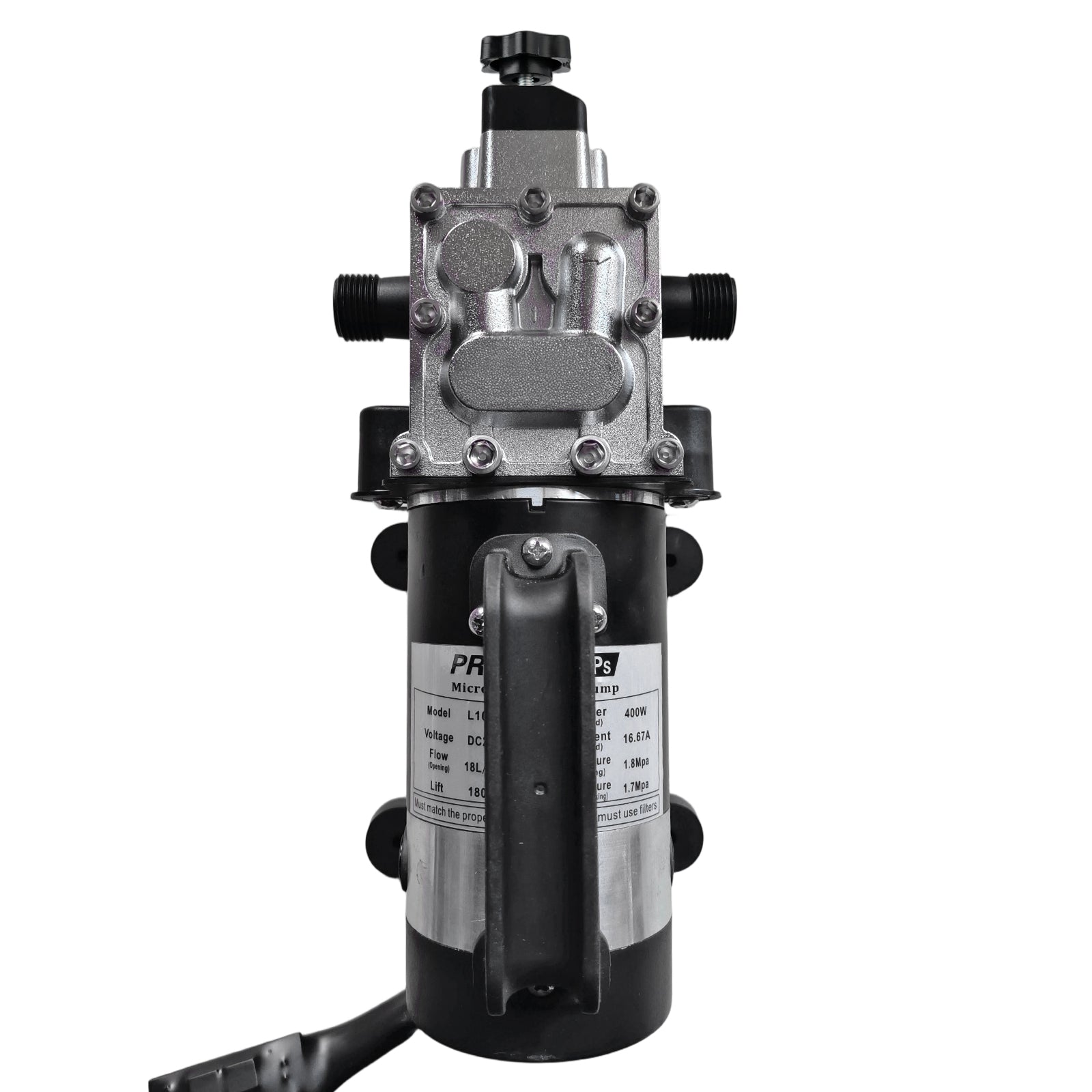

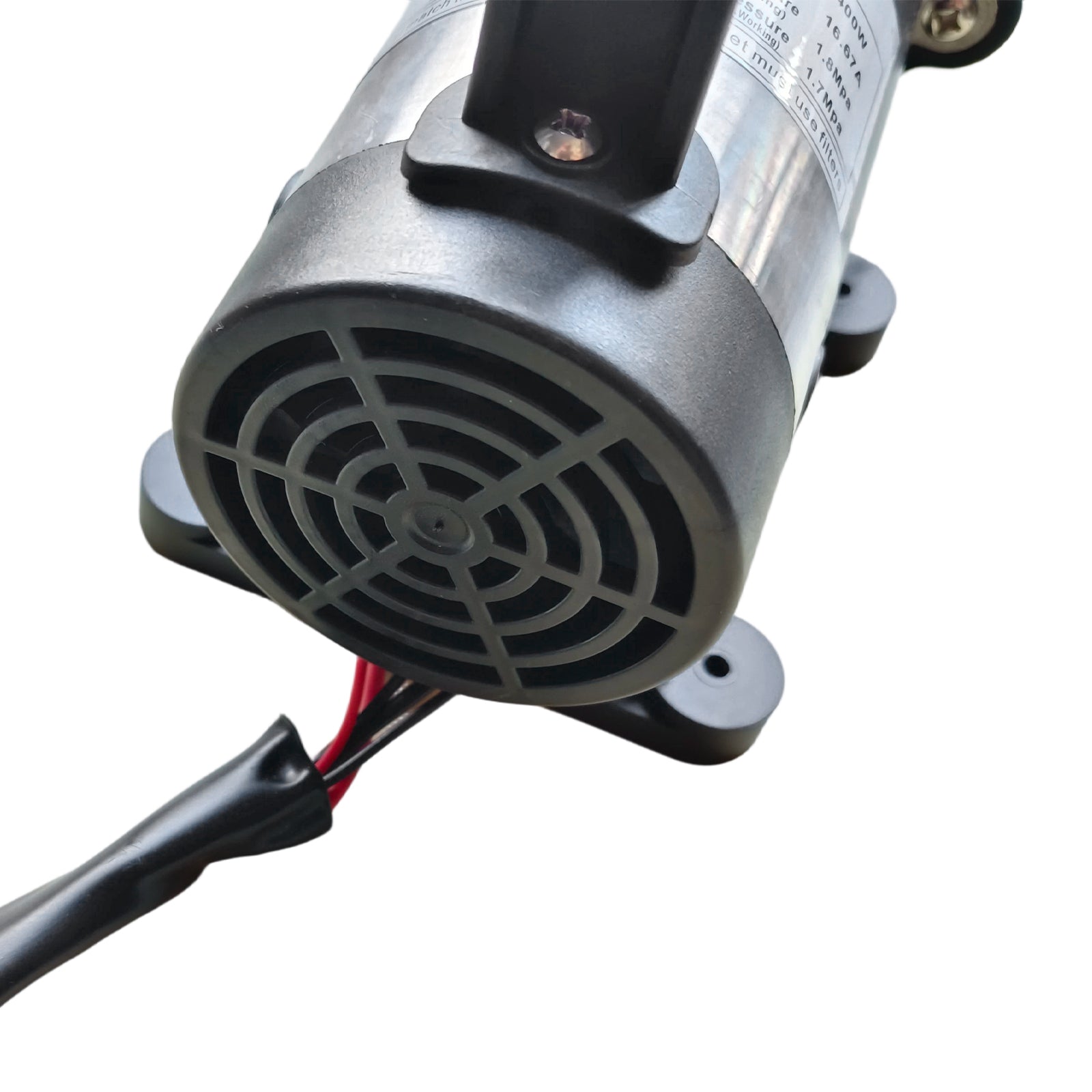

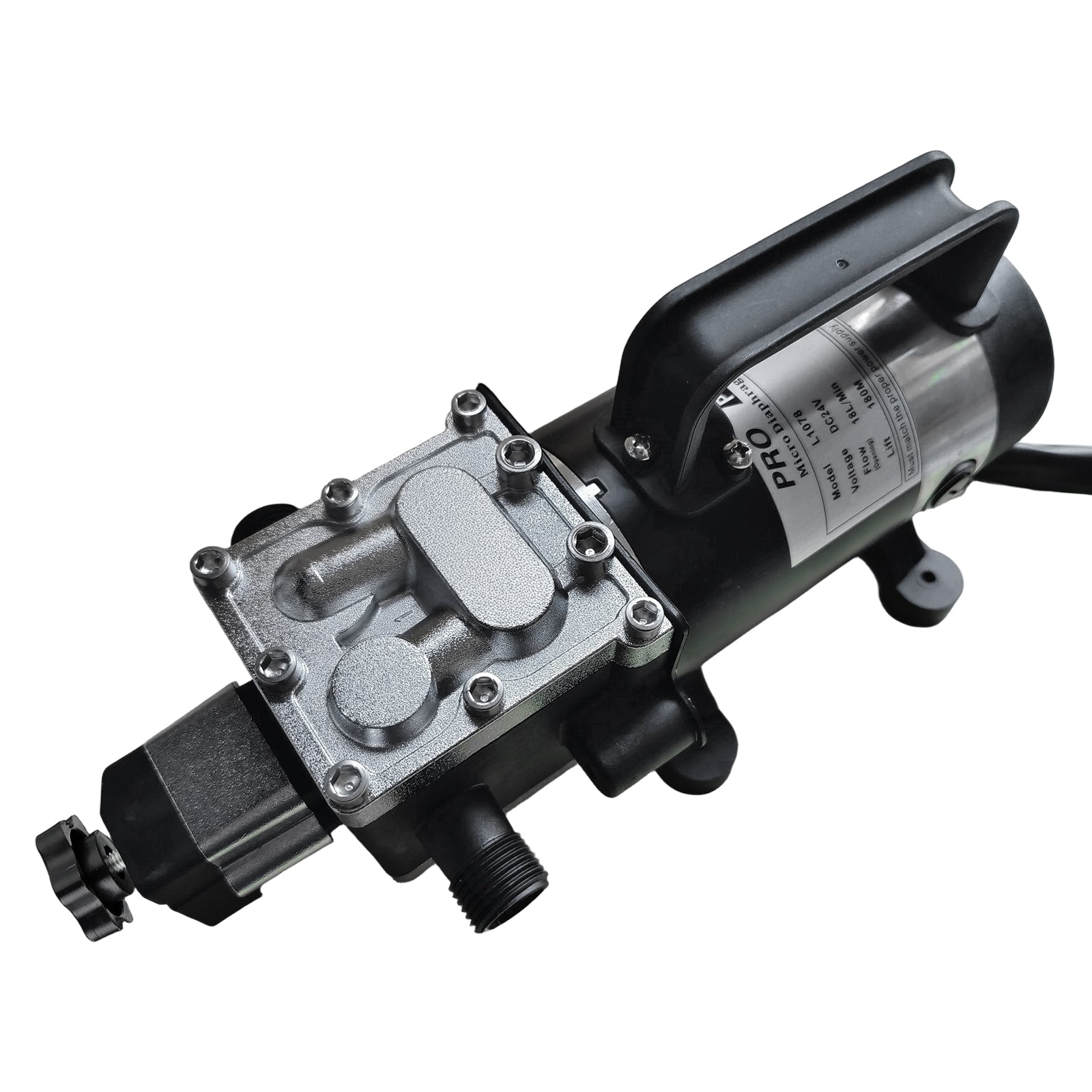

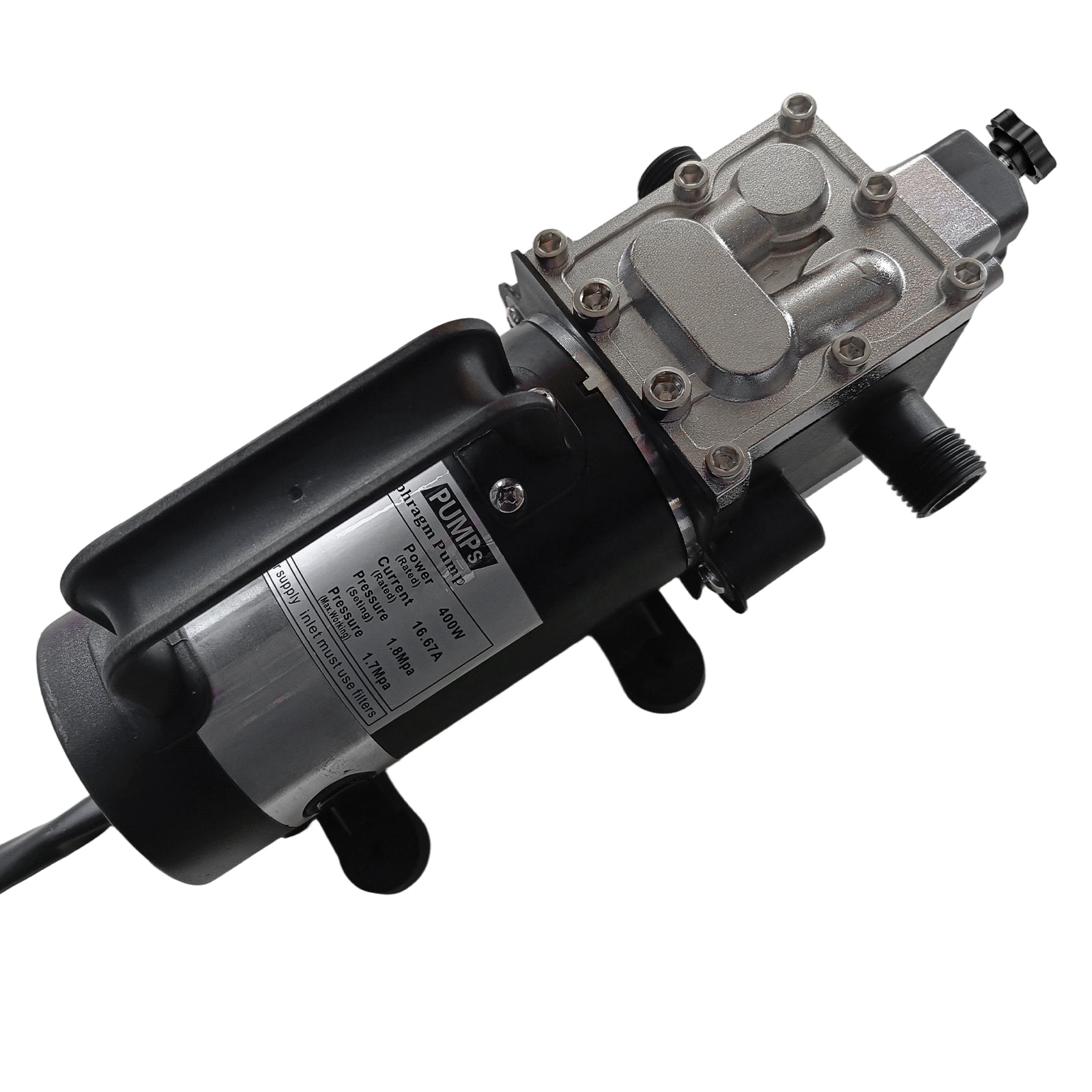

24VDC 400W 180M 18L/min 1.8Mpa Flushing Solar Diaphragm Pump

$110.13 USD$157.33 USD

1. Solar diaphragm pump for stable performance and efficient flushing.
2. Open flow up to 18L/min with 400W rated power for efficient operation.
3. Self-priming with 1.5M suction lift and 180M max head for flexible installation.
4. Compact design at 26.5 × 12.2 × 13.6 cm, 2.8kg—easy to mount, maintain, and service.

Artikel ist auf LagerBeeilen Sie sich! Geringer BestandArtikel ist vergriffen Artikel ist nicht verfügbar
Menge
Contact Us

[{"variant_id":"50811923988775" , "metafield_value":""}]

24V Solar-Powered with 18L/min High-Flow High-Pressure Output

As an industrial-grade solar diaphragm pump, the L1078YD-24-400TFS delivers a high flow rate of 18L/min at 24V DC, with a maximum working pressure of 1.8MPa. Whether used as a Pipeline Pressure Test Pump or as Flushing Pumps, it provides stable and powerful hydraulic support, offering multifunctional performance in a single unit.


Wide Adjustable Pressure Range for Precise Pipeline Testing

This model of solar diaphragm pump features an adjustable working pressure range of 1.0-2.0MPa, meeting the hydrostatic testing requirements for pipelines of various specifications. The rated flow of 18L/min ensures rapid pressurization, guaranteeing an efficient and accurate testing process, making it an ideal Pipeline Pressure Test Pump.


400W High-Power Motor for Strong and Reliable Continuous Operation

Equipped with a 400W high-power motor, this solar diaphragm pump delivers robust performance even at 24V, supporting long-term continuous operation. Whether used for large-scale equipment cleaning or system pressure testing, it ensures stable and consistent performance without degradation.


Strong Self-Priming Capability for Complex and Outdoor Applications

With a self-priming capability of 1.5 meters, it can start quickly even in environments with inconvenient water supply. Combined with a compact and durable design, this solar diaphragm pump is particularly suitable for pressure testing and cleaning tasks at outdoor construction sites and remote pipeline systems.

FAQs

  • Flowatt bietet zuverlässige Energiespeichersysteme für den Heimgebrauch, mit denen Haushalte Solarenergie effizient speichern und während Spitzenzeiten oder bei Stromausfällen nutzen können.

  • A deep well submersible pump is the best choice. This type of deep well pump works underwater and provides strong pressure, making it ideal for wells deeper than 50–100 meters. It offers reliable water delivery for home use, irrigation, and livestock.

  • Unsere USV-Notstromaggregate bieten bei Ausfällen sofortigen Schutz, schützen empfindliche Elektronik und gewährleisten einen unterbrechungsfreien Betrieb.

  • Ja! Tragbare Stromstationen von Flowatt sind leicht, kompakt und ideal für Camping, Veranstaltungen im Freien oder als Notstromversorgung.

  • Flowatt Solar-Grundwasserpumpen ermöglichen eine effiziente Wasserförderung für Bauernhöfe, Gärten und Viehzucht und bieten umweltfreundliche und kostengünstige Bewässerungslösungen.

  • The number of solar panels depends on the pump’s power and water demand. For example, a 900W solr water pump can typically be powered by 2 × 540W solar panels. Smaller pumps may need fewer panels, while larger pumps may require more to ensure reliable operation.
