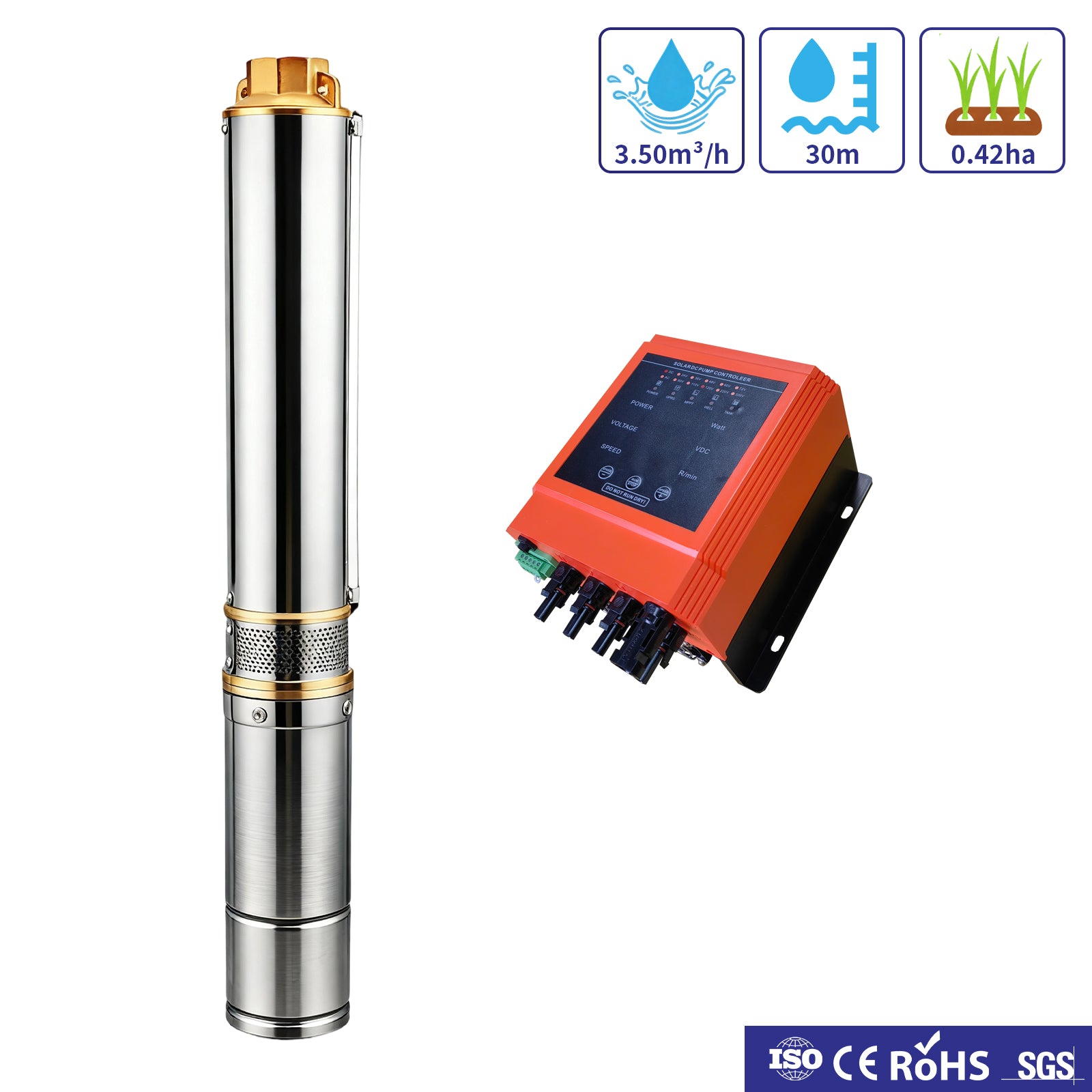

4inch 72VDC 750W Stainless Steel Reinforced Nylon Impeller Solar Deep Well Submersible Pump
1. 4Inch Solar Well Pump, 1hp(750W) For Medium-Flow Irrigation And Water Supply
2. Max Head 56m, Flow ≈ 0; Max Head 28m, Flow ≈ 3.7m³/h → Irrigates 0.44ha, Based On 5mm/Day, 6h/Day Operation

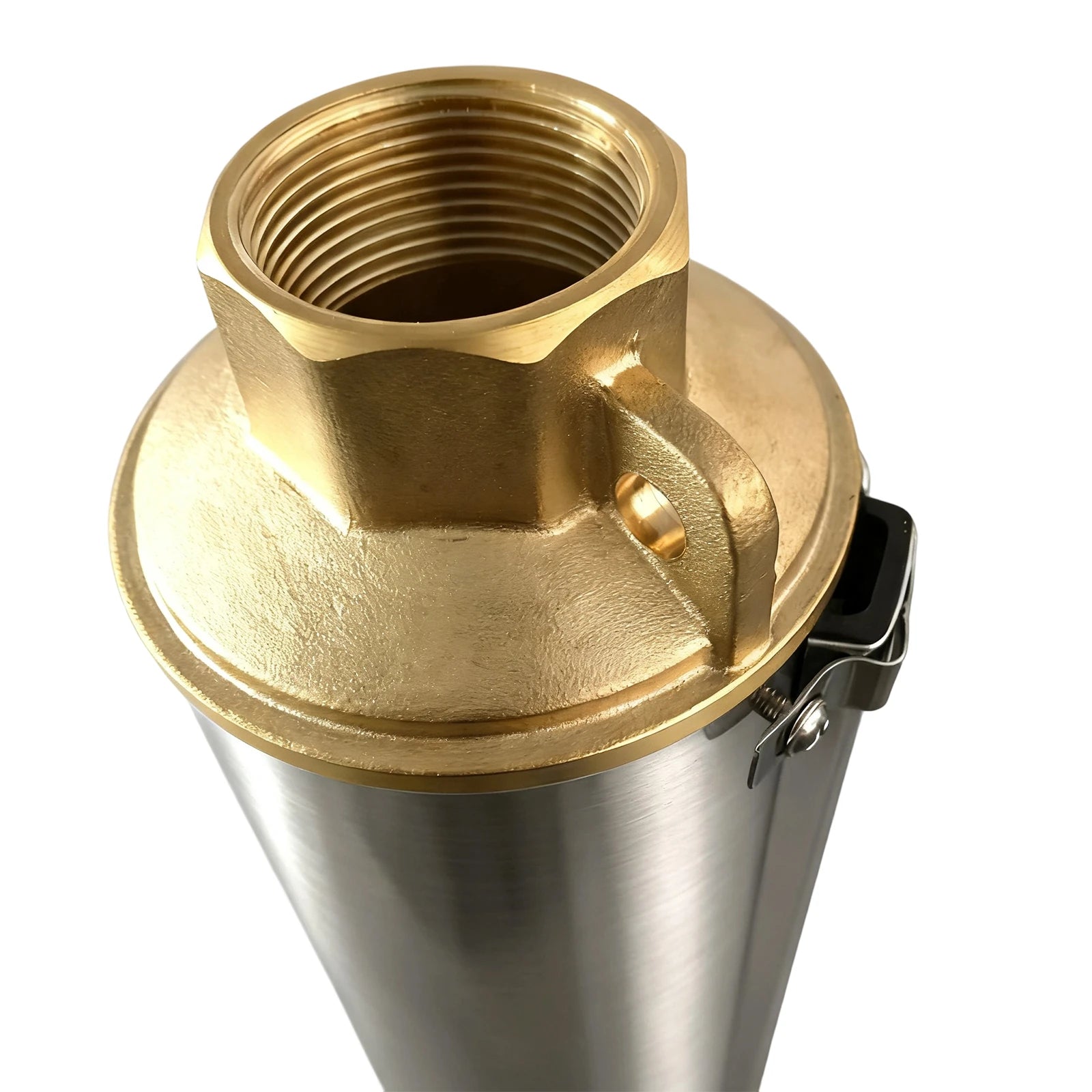

3. Stainless Steel Pump Body With Reinforced Nylon Impeller for Long Service Life
4. MPPT Controller With Multiple Protection Functions (Over-Voltage, Overload, Short Circuit)
5. Required Solar Panel Configuration: 550W × 2pcs Connected in Series
6. Application: Deep Well Water Extraction, Agricultural Irrigation, Mountainous Area Water Supply, and Livestock Farming From Deep Sources.
750W Low Power Design, Solar Direct Drive Saves Energy & Effort
Integrated Solar Controller with MPPT for Efficient Pumping
Industrial-Grade Centrifugal Pump Construction
Ideal for Irrigation, Livestock, and Remote Water Supply
FAQs
-
To prime a submersible water pump, fill the pump and suction pipe with water to remove air. This ensures proper flow and prevents the pump from running dry, allowing smooth operation for irrigation or farm water supply.
-
A deep well submersible pump is the best choice. This type of deep well pump works underwater and provides strong pressure, making it ideal for wells deeper than 50–100 meters. It offers reliable water delivery for home use, irrigation, and livestock.
-
Yes, this 4-inch centrifugal solar submersible pump is perfectly suited for shallow well applications.
-
This water pump for solar requires 2 × 550W panels connected in series to provide enough power for efficient and continuous operation.
-
The number of solar panels depends on the pump’s power and water demand. For example, a 900W solr water pump can typically be powered by 2 × 540W solar panels. Smaller pumps may need fewer panels, while larger pumps may require more to ensure reliable operation.
