3inch 72VDC 900W 140M Stainless Steel Helical Rotor Impeller Solar Deep Well Submersible Pump

$267.19 USD$381.69 USD

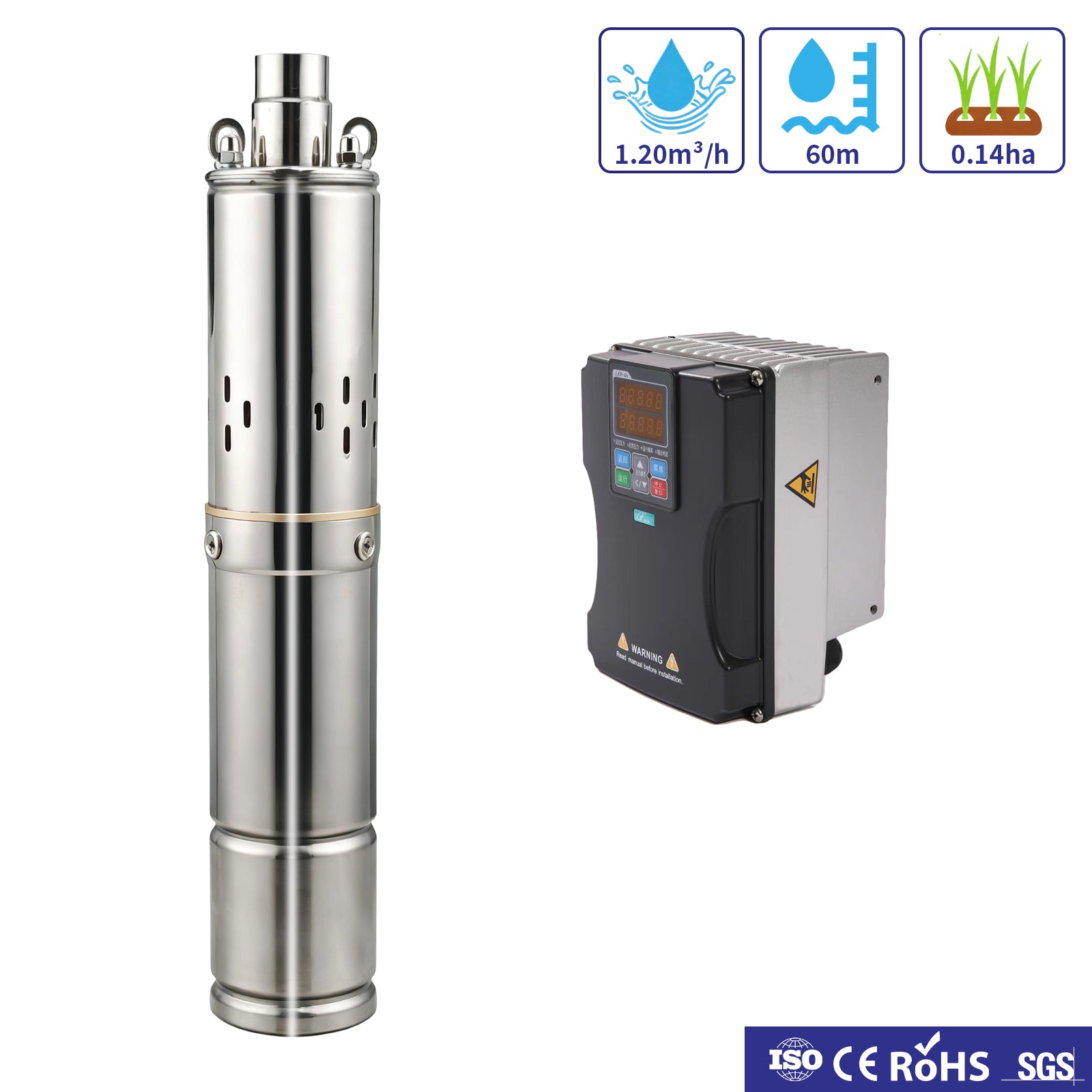

1. 3Inch Helical Rotor Solar Well Pump, 1.2Hp(900W), 0.75"Outlet, Strong Solar Well Pump For High Head

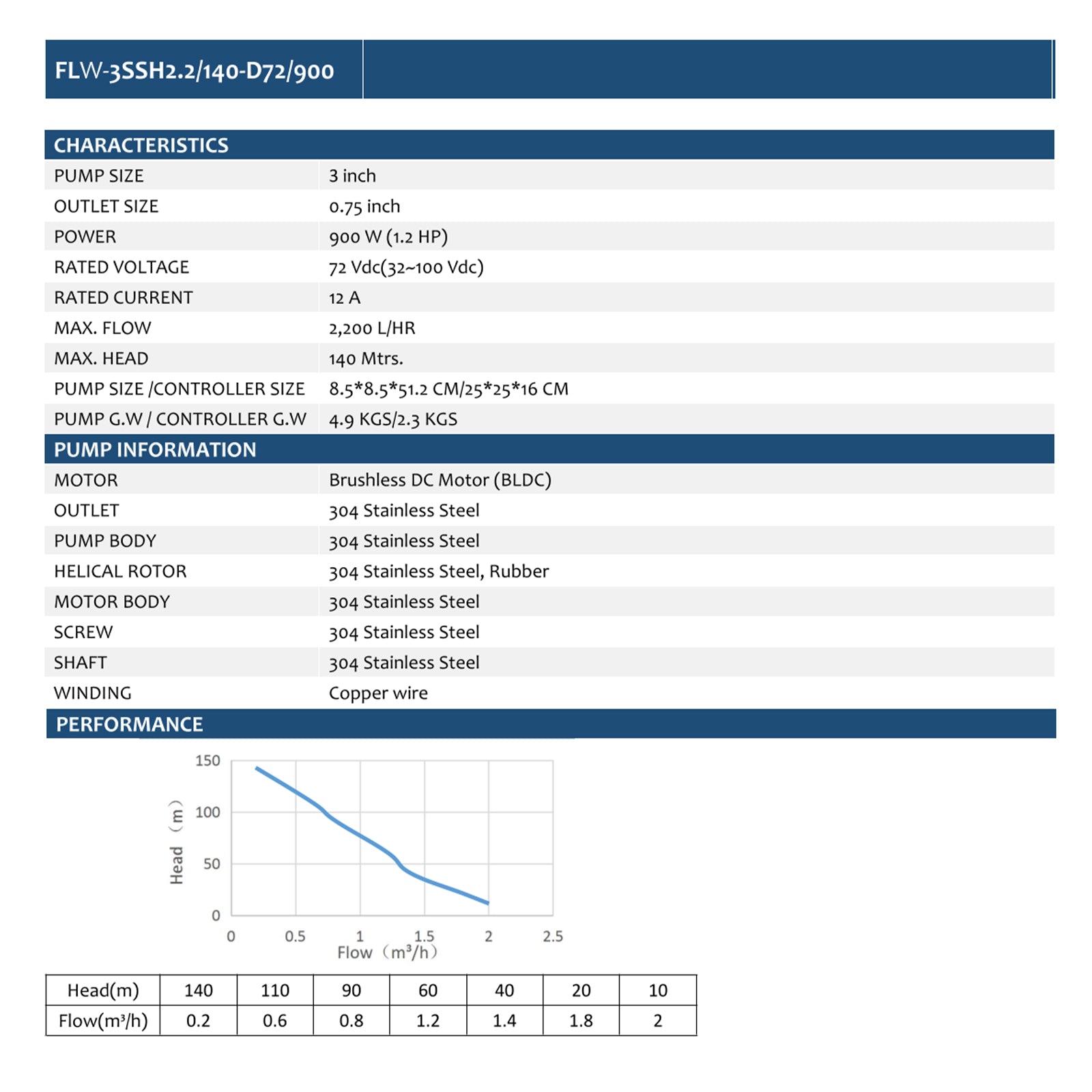

2. Max Head 140m, Max. Flow ≈ 0; Max Head 70m, Flow ≈ 1.1m³/h, Irrigates 0.13ha, Based On 5mm/Day, 6h/Day Operation
3. Durable Stainless Steel Helical Rotor Makes This an Advanced Impeller Pump Built to Last.
4. Smart MPPT Controller With Fan Cooling Delivers Safe, Energy-Efficient Operation.
5. Easy Solar Setup With 3 × 483W Panels in Series Maximizes Performance for Deep Well Pumping.
6. Application: Low-Yield Deep Wells, Domestic Water Lifting, Small-Scale Garden Irrigation, and Remote Off-Grid Household Water Supply.

Quantity
Contact Us

[{"variant_id":"50455054319911" , "metafield_value":""}]

140m Ultra-High Head, Professional Solution for Deep Well Water Extraction

The stainless steel helical rotor with rubber lining is engineered for ultra-high head applications, delivering up to 140m of lift. This makes the submersible water well pump ideal for demanding water supply from deep wells, boreholes, and mountainous terrain.


900W High-Efficiency Motor with 60–220V DC Wide Voltage Adaptation

Featuring wide voltage input (60–220V DC) and MPPT control, this submersible water pump maximizes solar energy utilization under varying light conditions, ensuring stable and efficient operation for irrigation, livestock, and farm water supply.


Stainless Steel Pump Body & Helical Rotor for Long-Term Durability

Core components, including the pump body, rotor, and motor housing, are made of stainless steel. This corrosion-resistant impeller pump design ensures long service life even in harsh or sediment-laden water, providing reliable performance for years.


32-bit MCU Precision Control with Fan Cooling for Stable Operation

The built-in 32-bit MCU enables precise FOC control, while the fan-assisted cooling system maintains stability under high-load conditions. Ideal for a submersible water well pump, it delivers consistent performance for deep well pumping and irrigation applications.

FAQs

  • Lower the pump carefully into the well, connect the discharge pipe and power supply, and ensure it is securely positioned. Follow the manufacturer’s instructions for wiring and testing before starting operation.

  • A deep well submersible pump is the best choice. This type of deep well pump works underwater and provides strong pressure, making it ideal for wells deeper than 50–100 meters. It offers reliable water delivery for home use, irrigation, and livestock.

  • Yes, this 900W submersible water pump provides reliable household water supply with 2,200 L/hr flow capacity.

  • This submersible water pump runs efficiently on 2×540W solar panels, with MPPT optimization for better sun utilization.

  • The number of solar panels depends on the pump’s power and water demand. For example, a 900W solr water pump can typically be powered by 2 × 540W solar panels. Smaller pumps may need fewer panels, while larger pumps may require more to ensure reliable operation.
