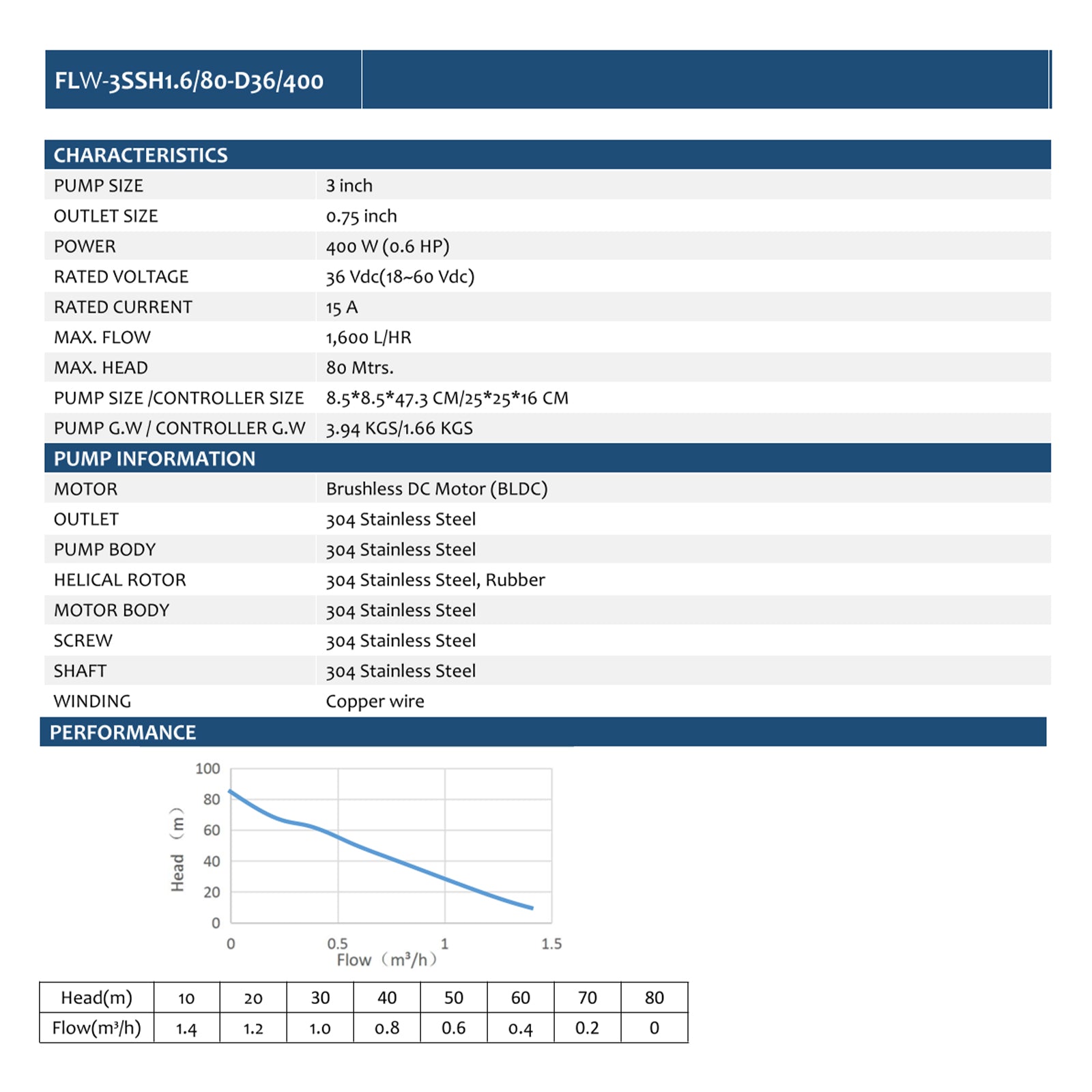

3inch 36VDC 400W 80M Stainless Steel Helical Rotor Impeller Solar Deep Well Submersible Pump
1. 3Inch Helical Rotor Solar Borehole Pump, 0.6Hp (400W), 0.75"Outlet, Reliable Off-Grid Solar Water Pumping

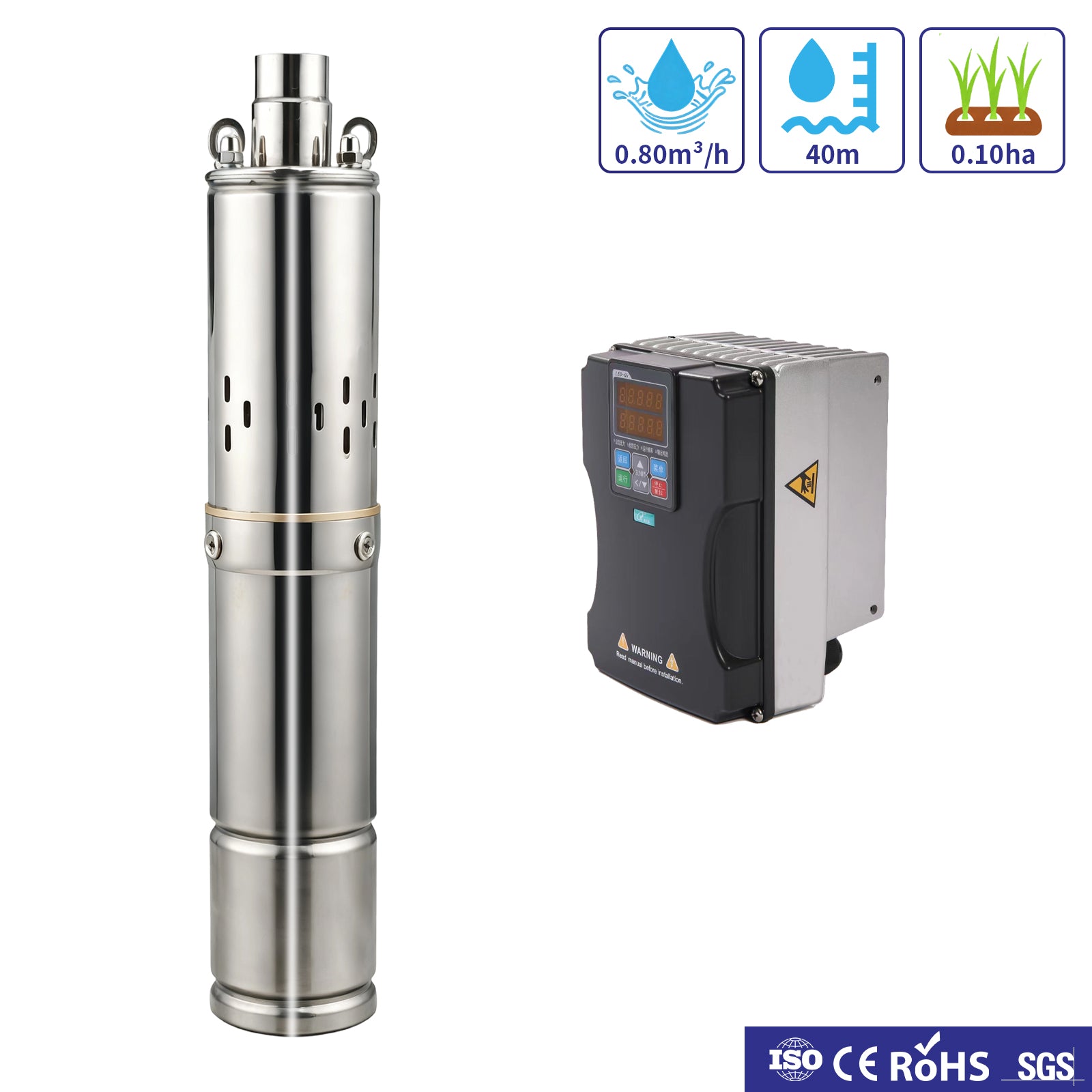

2. Max Head 80m, Max. Flow ≈ 0; Max Head 40m, Flow ≈ 0.8m³/h, Irrigates 0.10ha, Based On 5mm/Day, 6h/Day Operation
3. Durable Stainless Steel Body With Helical Rotor Design.
4. MPPT Controller With Natural Heat Dissipation for Optimal Solar Efficiency.
5. Efficient Solar Setup Requiring Only 1 × 585W Panel for This Submersible Pump.
6. Application: Low-Yield Deep Wells, Domestic Water Lifting, Small-Scale Garden Irrigation, and Remote Off-Grid Household Water Supply.
80m High Head, Helical Rotor Structure Ensures Stability
400W High-Efficiency Motor, 36V DC Safe and Efficient
Stainless Steel Pump Body & Rotor for Complex Water Quality
2-bit MCU Control, Fanless Design for Quiet Operation
FAQs
-
A submersible pump sits underwater and pushes water up through a pipe, delivering water efficiently from wells or tanks.
-
A deep well submersible pump is the best choice. This type of deep well pump works underwater and provides strong pressure, making it ideal for wells deeper than 50–100 meters. It offers reliable water delivery for home use, irrigation, and livestock.
-
Is an 80m head sufficient for a deep well?
-
Ideal for domestic water supply, small farms, livestock watering, and vegetable gardens requiring a lift of 50–80m.
-
The number of solar panels depends on the pump’s power and water demand. For example, a 900W solr water pump can typically be powered by 2 × 540W solar panels. Smaller pumps may need fewer panels, while larger pumps may require more to ensure reliable operation.
