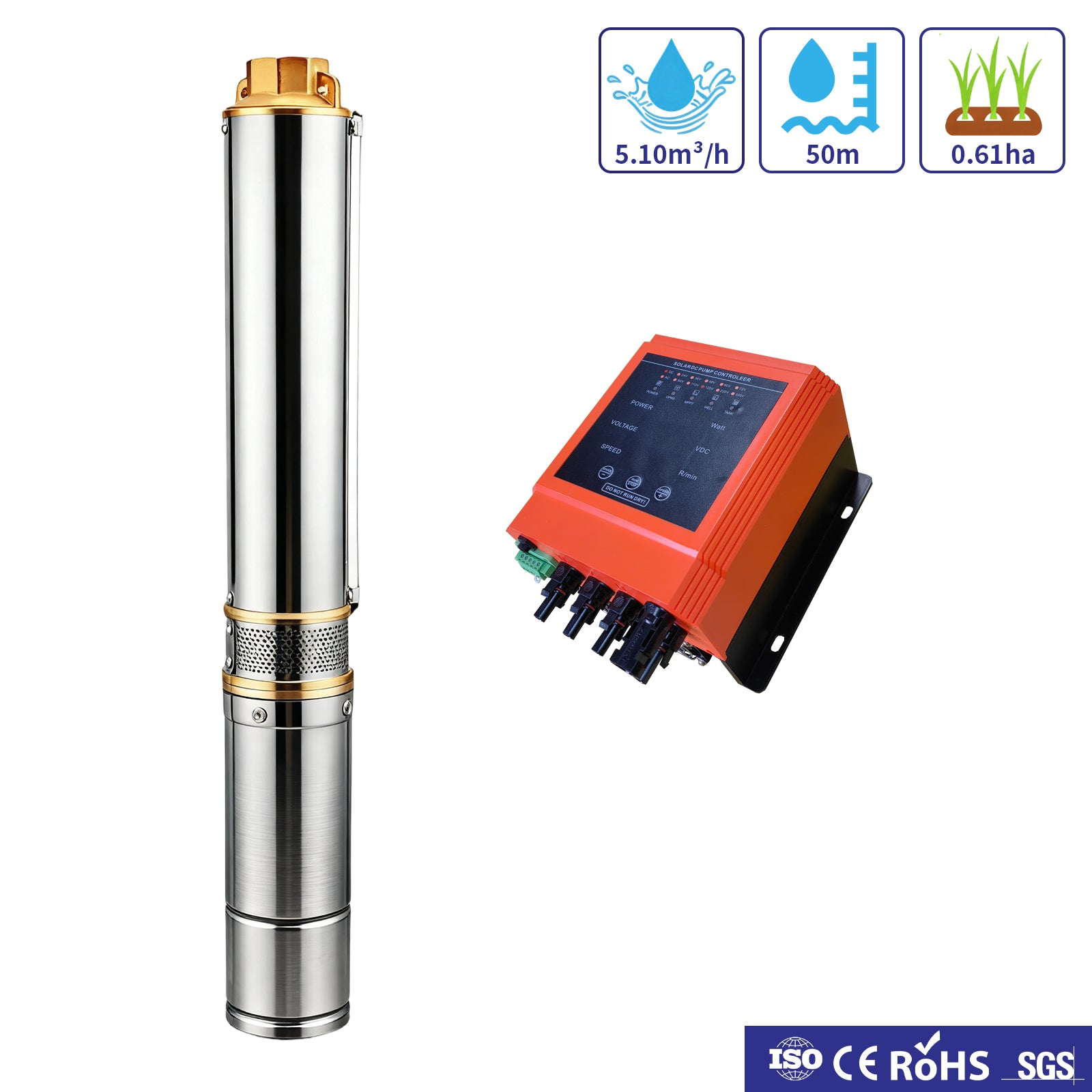

4inch 110VDC 1500W 135M Stainless Steel Reinforced Nylon Impeller Solar Deep Well Submersible Pump

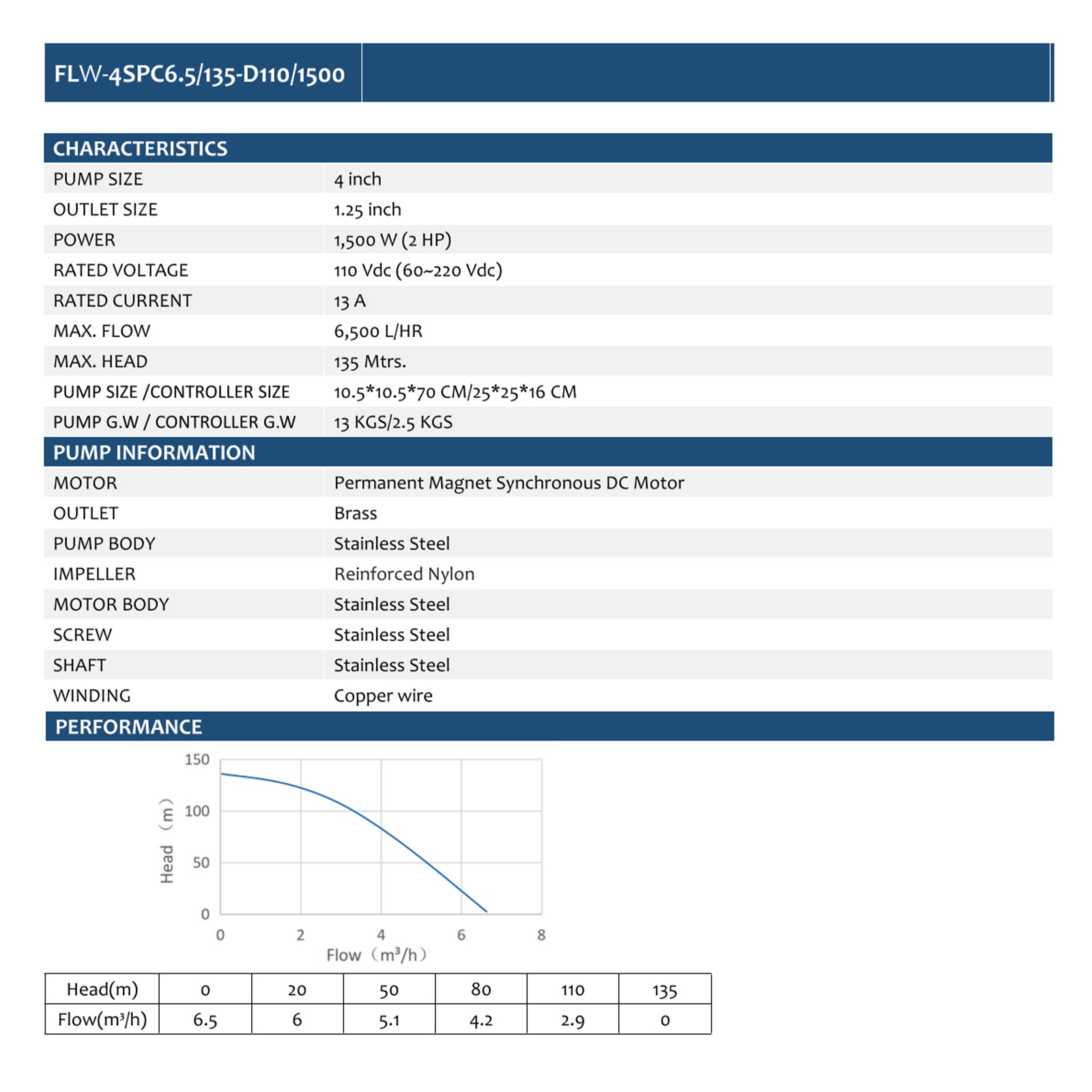

1. 4Inch Solar Borehole Submersible Pump, 2Hp(1500W), 1.25"Outlet, Powerful Solar Irrigation Pump For Higher Head, Flow.
2. Max Head 135m, Max. Flow ≈ 0; Max Head 67.5m, Flow ≈ 4.6m³/h, Irrigates 0.55ha, Based On 5mm/Day, 6h/Day Operation.
3. Stainless Steel Pump Body With Reinforced Nylon Impeller for Long Service Life
4. MPPT Controller With Multiple Protection Functions (Over-Voltage, Overload, Short Circuit)
5. Required Solar Panel Configuration: 550W × 2pcs Connected in Series
6. Application: Deep Well Water Extraction, Agricultural Irrigation, Mountainous Area Water Supply, and Livestock Farming From Deep Sources.
Stainless Steel Impeller & Pump Body, Built for Corrosion Resistance
110V DC Wide Voltage Input, Efficient in Low-Light Conditions
32-bit MCU Precision Control with Remote Monitoring Option
Compact Modular Design for Easy Installation & Low Maintenance
FAQs
-
A solar water pump system uses solar panels to power a solar well pump, allowing efficient water delivery from wells, tanks, or ponds without relying on electricity. It’s ideal for irrigation, livestock, and remote water supply.
-
A deep well submersible pump is the best choice. This type of deep well pump works underwater and provides strong pressure, making it ideal for wells deeper than 50–100 meters. It offers reliable water delivery for home use, irrigation, and livestock.
-
This water pump for solar is ideal for medium to large farms requiring high flow (6.5 m³/h) for irrigation, livestock, or crop watering.
-
To run a water pump for solar, connect the solar panels to the pump’s controller or inverter, following the correct voltage and wiring specifications. Proper connection ensures stable operation and maximizes energy efficiency.
-
The number of solar panels depends on the pump’s power and water demand. For example, a 900W solr water pump can typically be powered by 2 × 540W solar panels. Smaller pumps may need fewer panels, while larger pumps may require more to ensure reliable operation.
