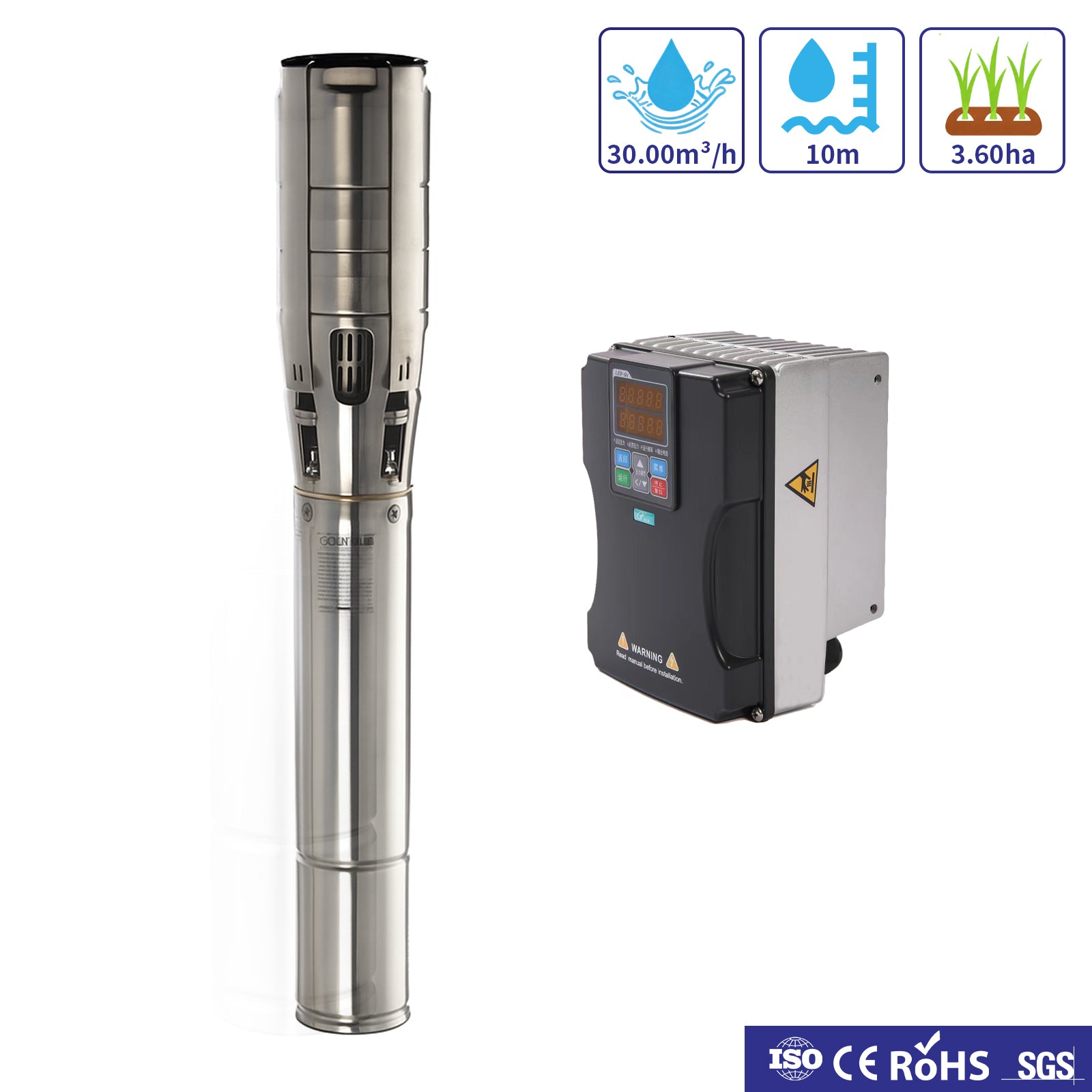

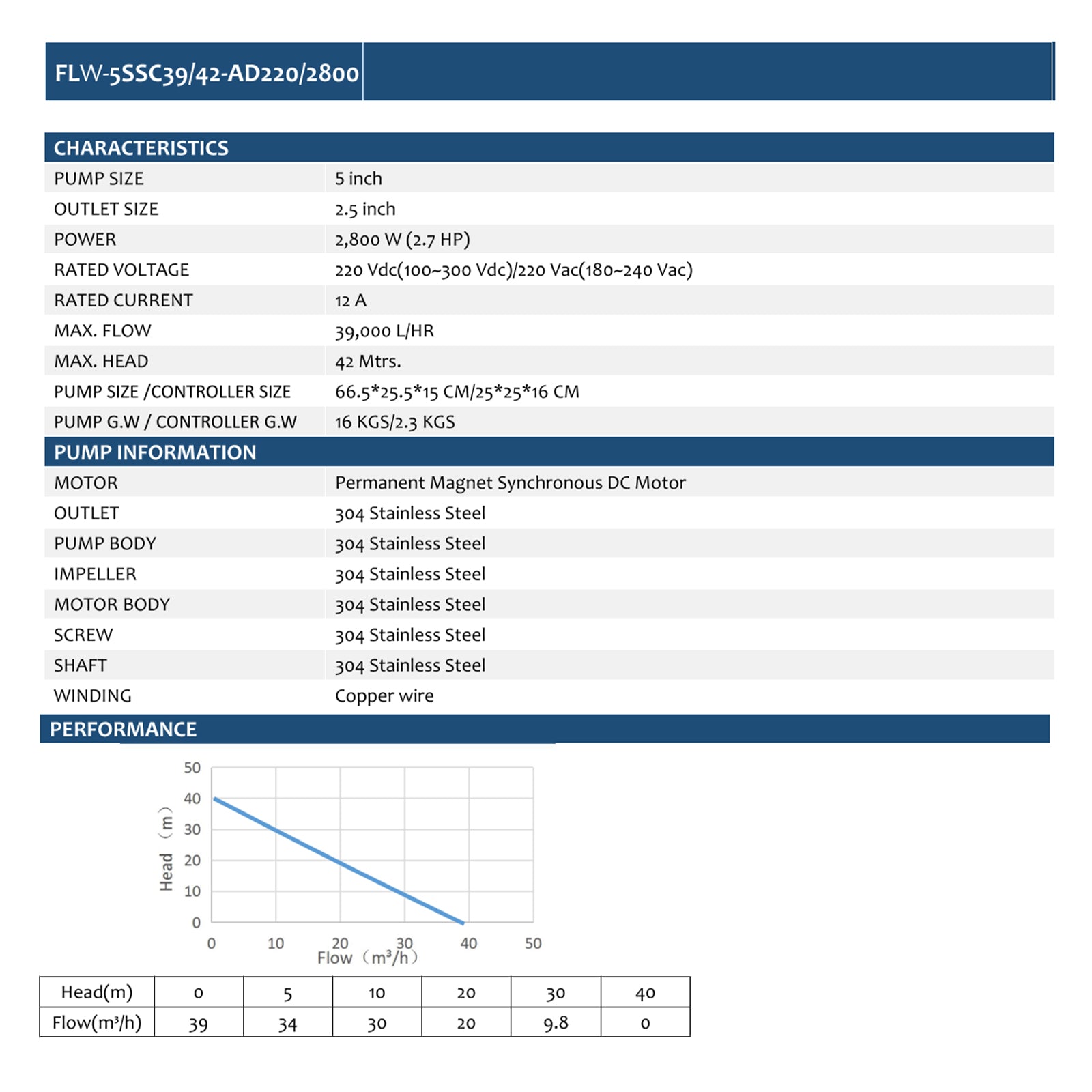

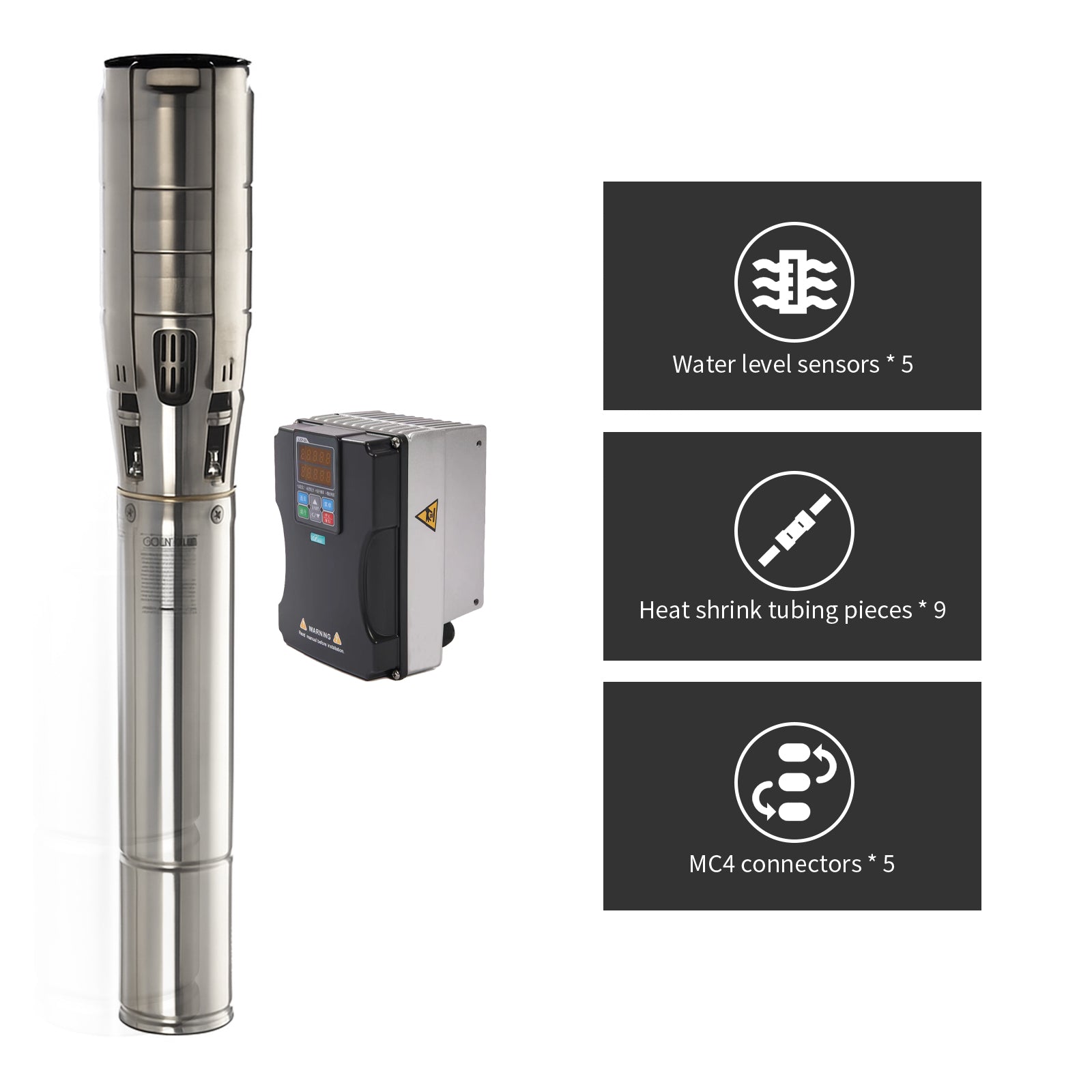

5inch 220VDC/VAC 2800W Stainless Steel Helical Rotor Impeller Solar Deep Well Submersible Pump
1. 5Inch AC/DC Solar Well Pump, 2.7hp(2800W) For High-Flow Irrigation & Water Transfer
2. Max Head 42m, Flow ≈ 0; Max Head 21m, Flow ≈19.0m³/h → Irrigates 2.28ha, Based On 5mm/Day, 6h/Day Operation
3. MPPT and FOC Technology Ensures Efficiency in All Conditions.
4. Dual-Mode Power: Solar DC or AC Mains.
5. Complete Short-Circuit and Overload Protection.
6. Solar Panel Configuration: 6 × 540W Panels in Series.
7. Application: Large-Flow Water Transfer From Rivers or Lakes, Rapid Farmland Surface Irrigation, and Industrial Water Circulation Systems.
High-Flow Deep Well Pump with 39,000 L/H Efficient Supply
AC/DC Dual-Mode Drive for All-Weather Operation
High-Efficiency Permanent Magnet Motor for Energy Saving
Full Stainless Steel Construction for Corrosion Resistance
FAQs
-
A deep well submersible pump is the best choice. This type of deep well pump works underwater and provides strong pressure, making it ideal for wells deeper than 50–100 meters. It offers reliable water delivery for home use, irrigation, and livestock.
-
The number of solar panels depends on the pump’s power and water demand. For example, a 900W solr water pump can typically be powered by 2 × 540W solar panels. Smaller pumps may need fewer panels, while larger pumps may require more to ensure reliable operation.
