Mark had been running a drip irrigation system for garden for two seasons, relying on a basic pond pump to feed his 10 coco-grown plants through a simple drip emitters. While the results were decent, he constantly battled uneven watering—some plants received too much solution, others too little—and annoying siphoning after each irrigation cycle. The root cause was clear: his pump delivered only about 0.2 bar (3 psi), far below the 0.5 bar minimum required for pressure-compensating drippers.
This season, Mark decided to upgrade his solar drip irrigation system. Instead of using another low-pressure pond pump, he looked for a small 12V diaphragm pump capable of delivering consistent pressure across all drippers, regardless of elevation differences or line length. His goal was simple: stable, repeatable flow to every plant, with no siphoning, and enough pressure to support 5–10 plants using 1–2 low-flow drippers each.
12V Diaphragm Pump for Drip Irrigation System
After researching his options, Mark realized he didn’t need a high-flow pump—he needed pressure. His previous 2m-head pond pump moved plenty of water but couldn’t build enough pressure to activate pressure-compensating drippers. He set clear requirements: at least 0.5 bar working pressure, a modest flow rate around 100–200 L/h, 12V DC compatibility for his solar setup, and self-priming capability to prevent siphoning.

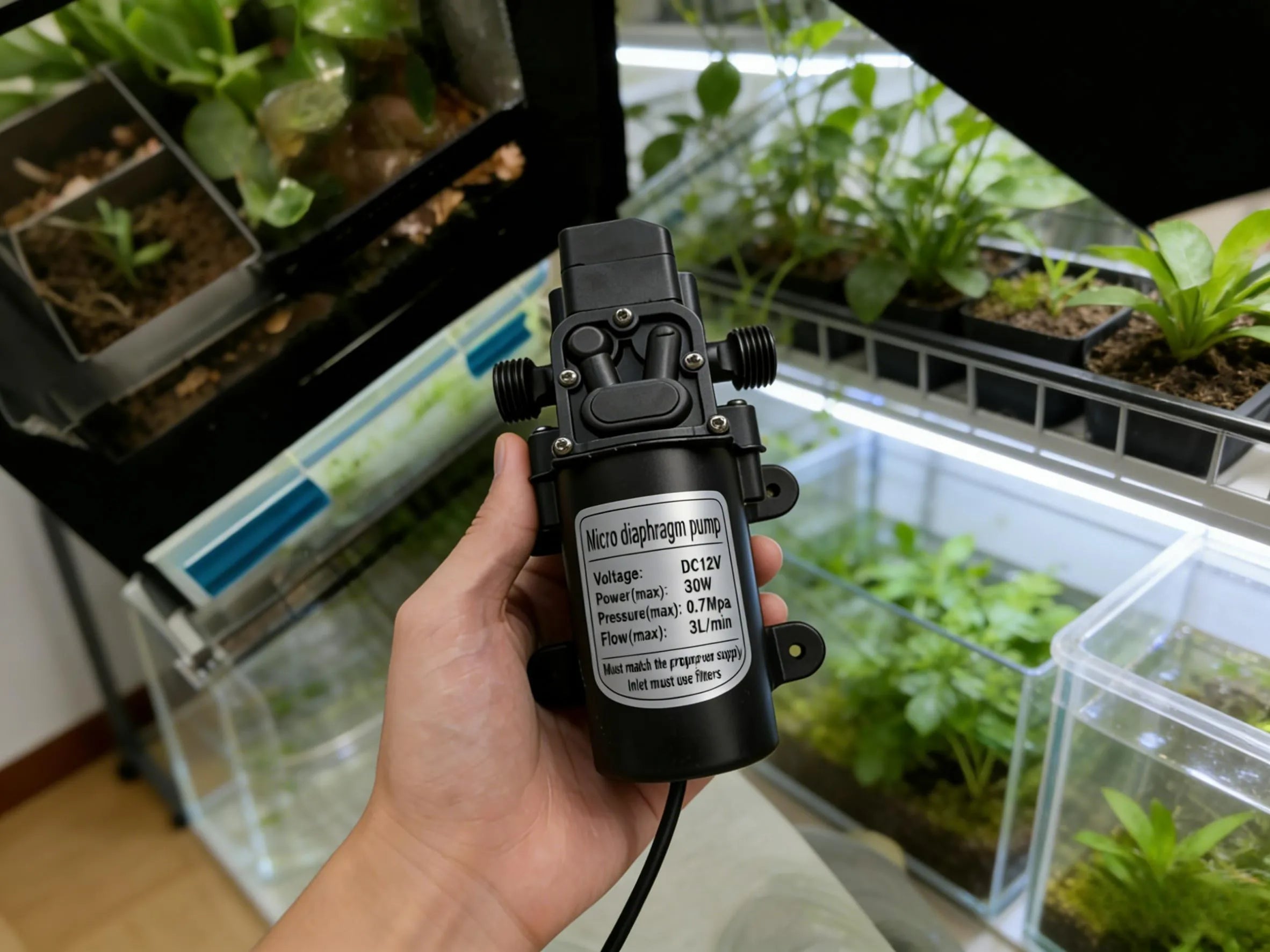

Several diaphragm pumps caught his attention, but many were either overkill—pushing 10+ L/min at excessive pressure—or still fell short on pressure. The Flowatts 12V 30W Solar Diaphragm Pump hit the sweet spot. With a working pressure of 0.4 MPa (4 bar / 58 psi) , it delivers well above the 0.5 bar threshold needed for drip irrigation emitters. Its maximum flow of 3 L/min (180 L/h) provides ample capacity for his 5–10 plants, while the 30W power draw keeps his solar panel and battery setup running efficiently. The self-priming design also eliminates the siphoning issues that plagued his previous system.
How a 12V Diaphragm Pump Solves the Dribble Problem
One of Mark’s biggest frustrations with his previous setup was siphoning. After each irrigation cycle, water continued to trickle from the drippers for minutes, sometimes even after the pump had shut off. The cause was simple: his old pond pump wasn’t self-priming, and the gravity-fed drip lines created a continuous siphon once water was flowing. This led to uneven watering, wasted nutrient solution, and inconsistent dry-back periods between cycles—a critical factor for coco coir hydroponics.
The Flowatts 12V DC diaphragm pump solved this problem immediately. Unlike centrifugal pumps, diaphragm pumps are inherently self-priming. When the pump stops, an internal check valve prevents water from flowing backward through the system, breaking the siphon. Mark also took an extra step: he installed a small anti-siphon hole (or vacuum breaker) at the highest point of his main feed line, just below the pump outlet. This simple addition ensures that once the pump shuts off, air enters the line instantly, stopping any residual flow.
