A float switch is an important component in a well water pump system, used to automatically control water levels and help prevent dry running. Proper installation of the float switch not only affects the pump’s automatic start and stop operation but also helps extend the service life of the equipment.
In this guide, we will explain how a water pump float switch works, where it should be installed, how to connect it correctly, and how to troubleshoot common float switch issues.
What Is a Float Switch on a Water Pump?
A float switch is a liquid-level control device installed in a water tank, sump pit, or reservoir. As the float rises and falls with the water level, its contacts open or close at a set height, automatically starting or stopping the water pump—essentially giving the pump a “level-sensing brain.”
In simple terms, a float switch is both a pump on/off controller and a practical water tank level indicator: when the water is too low, the pump starts filling; when the level is high enough, the pump shuts off, helping prevent overflow or dry running. Common types include tethered (cable) floats, vertical floats, and ball-type floats, used with sewage pumps, submersible pumps, tank refill systems, and sump pumps.

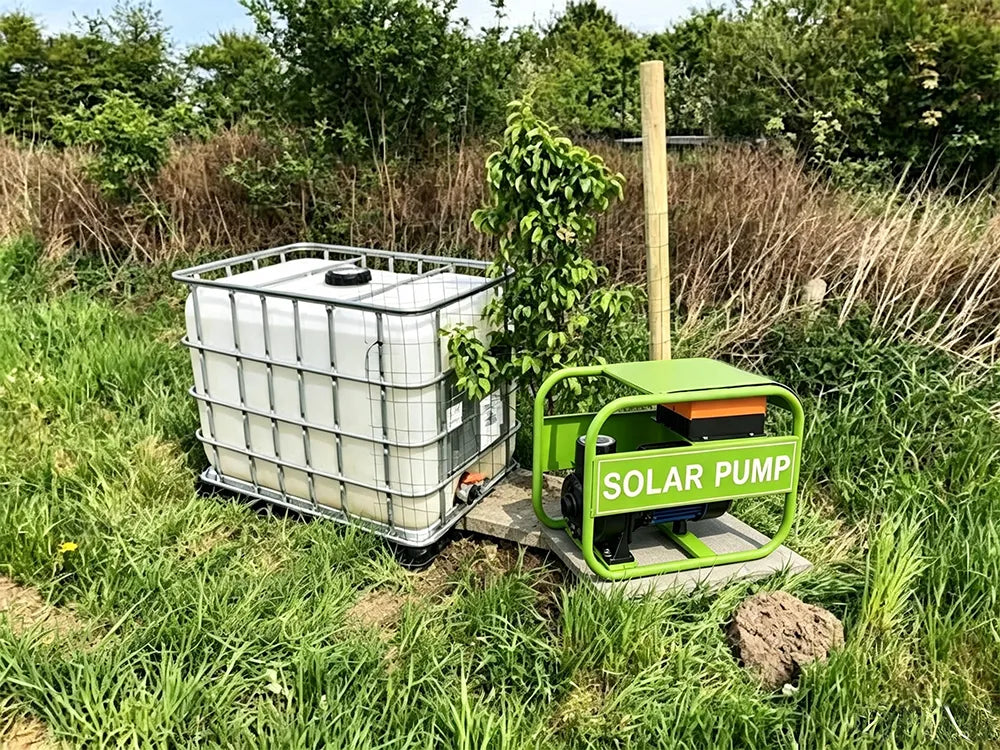

Where to Install a Float Switch?
Where you install a float switch decides whether your water pump starts and stops reliably with the water level. The right float switch installation location lets the float move freely—clear of the pump body, tank walls, and cables—so it can trigger accurately at the set high and low water levels.
Mount the float switch inside the water tank or sump pit, away from inlets and outlets. Turbulent flow can make the float bounce and cause short-cycling. Place it where the surface is calmer, and keep enough float switch clearance so nothing blocks its travel path.
Set the float switch height based on the job:
- Drain / sump pump float switch position: high level starts the pump; low level stops it. Keep the off level above the pump intake to prevent dry running.
- Tank float switch installation (refill):low level starts the fill pump; high level stops it to prevent overflow—this also supports accurate water tank level indicator control.
- Dual-float setups:one float for pump control, one higher for a high-water alarm.
For a tethered float, set the tether length carefully. A longer tether increases the on/off water-level differential; a tether that is too short makes the pump cycle too often. Vertical floats use a guide rod with fixed high/low stops and suit tighter tanks.
Three installation tips:secure the cable at a fixed point so the whole cord is not pulled; keep junctions dry or fully waterproofed; after mounting, lift and lower the float by hand to confirm the water pump starts and stops. Correct where to install float switch placement is what makes automatic level control actually work.
How to Connect Float Switch to Water Pump?
Connecting a float switch to a centrifugal water pump or submersible water pump means using the water-level signal to switch the pump’s power on and off. Before you wire anything, confirm whether the float is normally open (NO) or normally closed (NC), check the pump’s voltage and current, and decide if you need a relay or contactor. Small pumps can run in series with the float; larger pumps need a relay so the float contacts are not overloaded.
Start with a float switch installation diagram. A clear float switch wiring diagram shows the power supply, float contacts, motor, and any protection switches in the correct order. Matching wire colors and terminals to the diagram is safer than guessing. Two common ways to connect float switch to water pump are:
- Direct series wiring:power → float switch → water pump. Best for lower-current submersible or tank-fill pumps. When the float closes, the pump runs; when it opens, the pump stops.
- Relay / contactor control:the float only energizes the relay coil, and the relay’s main contacts power the pump. Use this for sewage pumps, higher-horsepower motors, and remote float switch pump control wiring.
Match polarity and switching logic.Drain and sump setups usually start the pump on a high-level close and stop it on a low-level open; tank refill does the opposite. Reversed NO/NC contacts can leave the pump stuck on or stuck off. Ground the motor frame where required, and add GFCI or thermal protection.
After wiring, test the circuit:lift the float by hand—the pump should start; lower it—the pump should stop. Check waterproof joints, sealed junction boxes, and a secure float-cable clamp. Once your float switch installation diagram and float switch relay connection (if used) both check out, the system can start and stop automatically with the water level.
How to Tell If a Float Switch Is Tripped?
A float switch is “tripped” when it has reached its set water level and opened or closed the circuit—or when it is stuck or faulty, so the pump will not start or stop when it should. Do not judge by pump runtime alone; check the water level, float position, and circuit state together.
Common signs include:
- Water is already high, but the pump will not start—the float is jammed by debris, cable, or the pit wall and cannot rise.
- Water is already low, but the pump keeps running—the float is stuck high, or the contacts are welded shut.
- The pump short-cycles on and off—often too little float clearance or a tether that is too short.
- A control panel or alarm light is on (if you have a high-water alarm float), meaning high-level protection has triggered.
Quick field checks:
- Power off, then see whether the float moves freely by hand—look for wrapping, sludge, or grease.
- Lift and lower the float manually; listen for the relay and confirm the pump starts and stops with it.
- Use a multimeter across the float leads: NO/NC continuity at low and high positions should match the manual.
- Compare against the real water level: if the level is past the limit but the circuit state never changes, the float is likely stuck or the contacts have failed—not a normal trip.
How to reset a float switch:shut off power, clear anything blocking the float, secure the cable clamp, then restore power and retest. If it still will not switch with the water level, the float may be waterlogged, the reed/switch may be damaged, or the wiring may be wrong—replace the float switch. Catching a float switch tripped or stuck early helps prevent dry running, overflow, and basement flooding.
