How to Prevent a Pump from Dry Running?

• What is Dry Running in Pumps?
• Causes of Pump Dry Running
• How to Prevent a Pump from Dry Running?
• What to Do if Water Pump Runs Dry?

Have you ever turned on your water pump only to hear it whirring away — but no water comes out? That's a classic sign of a dry run. When a pump operates without adequate water flow, it can overheat, damage internal components, and fail prematurely. In this article, we'll explain what dry run means, what causes it, and most importantly — how to prevent a water pump from running dry.

What is Dry Running in Pumps?

The dry run meaning: it refers to the condition where a water pump continues to operate with little or no fluid inside the pump chamber. In a properly functioning pumping system, the liquid serves three critical roles: cooling the motor, lubricating mechanical seals, and flushing away debris. During a dry run, these functions stop entirely. The mechanical seal — one of the most sensitive components — can overheat and crack within seconds.

The pump impeller may spin at high speed without resistance, leading to cavitation, imbalance, and eventual fracture. Dry running is especially dangerous for multistage pumps, deep well pumps, and high-pressure pumps that rely on continuous water flow for thermal management. Recognizing the causes of pump dry running early can save your equipment from irreversible damage.

Causes of Pump Dry Running

Several factors can lead to a water pump operating without adequate fluid. Understanding these causes is the first step toward prevention:

1. Empty water source. The most common cause is simply running out of water. This often happens when drawing from a well, tank, or reservoir that hasn't been properly monitored. Signs your well is running dry include reduced water pressure and longer refill times.

2. Air leaks in the suction line. Cracks or loose fittings on the intake side allow air to enter, causing the pump to lose prime and run dry. This is a frequent issue for dry running vacuum pump systems that rely on airtight seals.

3. Clogged or blocked intake. Debris, sediment, or foreign objects can block the suction strainer or pipe, restricting water flow while the pump continues to run.

4. Incorrect pump sizing. An oversized pump can empty a small water source faster than it can refill, leading to intermittent dry running.

5. Failed check valve or foot valve. When these valves malfunction, water drains back from the discharge line, causing the pump to lose its prime at the next start-up.

6. Low water table or seasonal variation. In well applications, a dropping water table can expose the pump intake, causing dry running — a particular concern for dry running vacuum pump installations in drought-prone areas.

7. Automatic control failure. Malfunctioning float switches, pressure sensors, or level controllers may fail to shut off the pump when water levels drop.

How to Prevent a Pump from Dry Running?

Preventing dry running requires a combination of proper system design, monitoring tools, and automatic protection devices. Here are the most effective strategies:

1. Install dry run protection devices. Dedicated dry running protection relays continuously monitor pump current or power draw. When the pump runs without water, the electrical load drops significantly, triggering an automatic shutdown before damage occurs. Many modern systems integrate this dry run protection for submersible pump applications, offering peace of mind for well owners.

2. Use liquid level controllers. Installing liquid level controllers in your tank or reservoir ensures the pump only runs when water is present. These devices use float switches, pressure sensors, or conductivity probes to detect water levels. When the water drops below a set point, the controller automatically shuts off the pump. For well applications, liquid level controllers can be placed at the pump intake depth to prevent exposure to air.

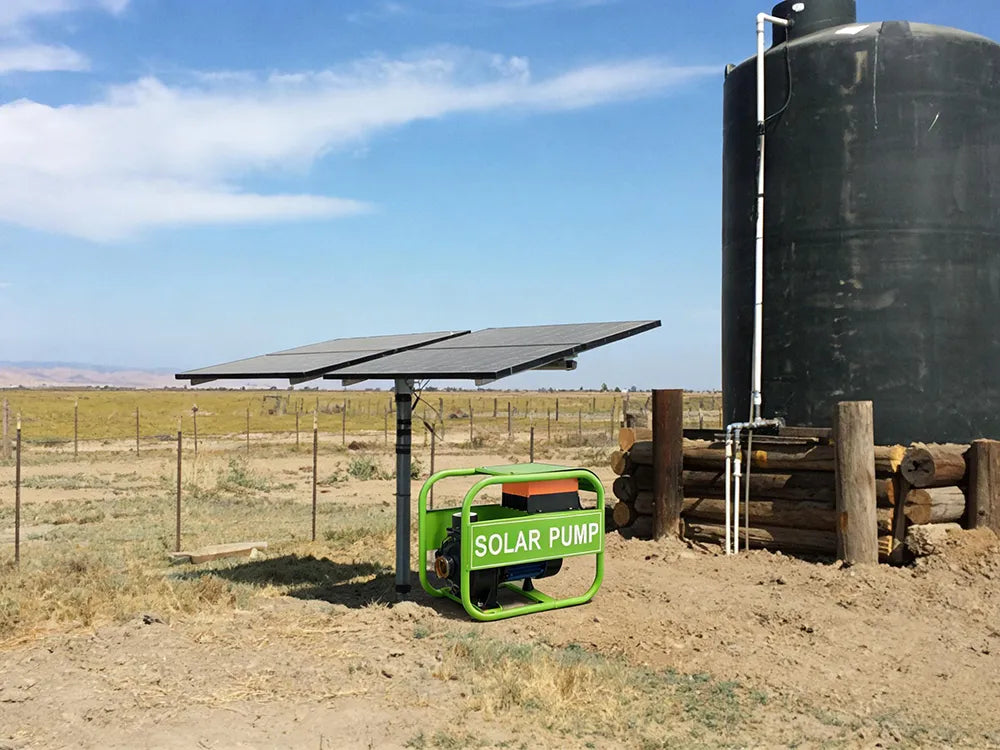

3. Leverage solar pump controllers with auto-stop. If you use solar-powered pumping, an MPPT solar charge controller with built-in autostop functionality is invaluable. These intelligent controllers not only maximize solar energy harvest but also include dry run protection for submersible pump features. When the controller detects low load or no water flow, it automatically stops the pump and can send an alert to your phone via Bluetooth or WiFi.

4. Install low-water shutoff probes. Place conductivity probes at the minimum safe water level in your well or tank. These probes work with dry running protection relays to cut power the moment water drops below the sensor.

5. Use a cycle stop valve or flow switch. These mechanical devices detect when flow stops while the pump is running and trigger an auto-stop. They work alongside liquid level controllers for redundant protection.

6. Monitor your well regularly. Learn to recognize warning signs and test your well's recovery rate annually. Even with autostop systems, periodic manual checks ensure everything functions correctly.

What to Do if Water Pump Runs Dry?
