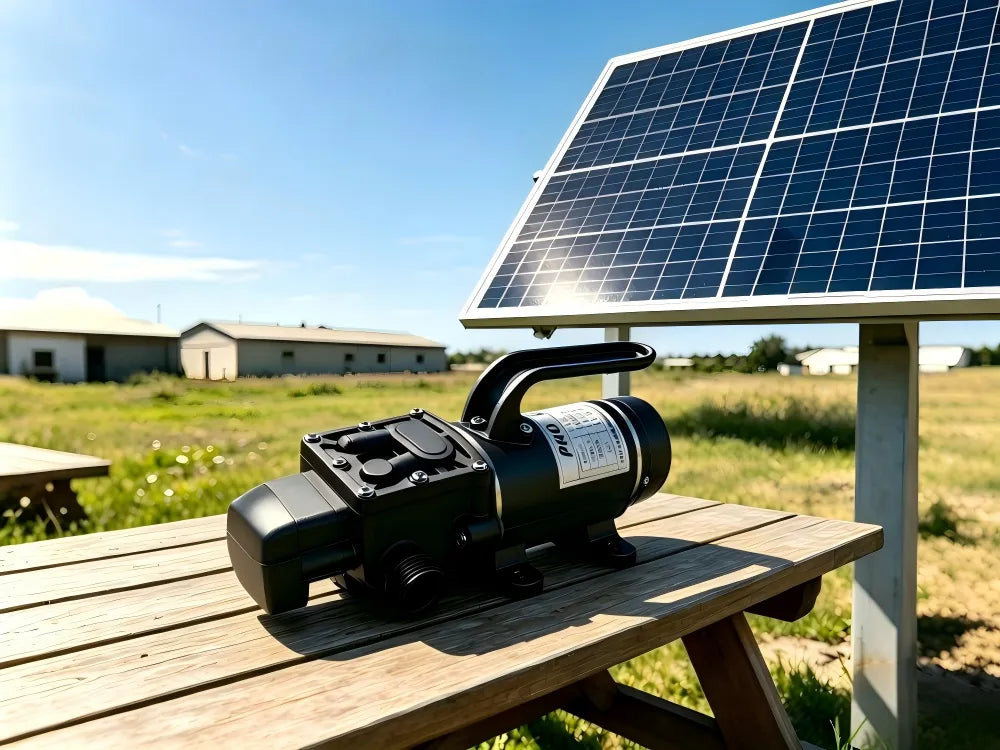

Many people building an off-grid watering system, rain barrel pump setup, or RV fresh water system ask the same question: Can a solar diaphragm pump be connected directly to a solar panel?
It sounds simple — the water pump runs when the sun is out and stops when it isn’t, with no battery or charge controller needed. In real use, though, wiring a solar diaphragm pump straight to a solar panel often leads to no-start issues, unstable operation, or even pump damage.
This guide answers whether direct solar panel connection works, explains why it so often fails, shows what usually happens when you wire the pump straight to the panel, and walks through the correct solar wiring setup — so your 12V/24V diaphragm pump system runs more reliably and lasts longer.
Can You Connect It Directly to a Solar Panel?
Short answer: for most solar diaphragm pumps, a direct solar panel connection is not recommended.
Take Flowatt’s 24VDC 60W low-noise solar diaphragm water pump as an example. It is designed for solar systems, with 24VDC / 60W rated power, 5L/min flow, and up to 80M head — a practical choice for off-grid irrigation and home water supply. But that does not mean you should wire the pump straight to a solar panel.
This type of DC diaphragm pump works best with a solar panel + charge controller + battery setup. If you connect the pump directly to the panel output, it may start on a very sunny day. In real use, though, startup current is often higher than the 60W rated load, and panel voltage changes with sunlight — so you may get no-start issues, unstable running, or even pump damage.
A clearer way to put it:
- Yes, this pump can be used in a solar water pump system
- No, do not connect the solar panel directly to the pump
- Recommended wiring: solar panel → charge controller → 24V battery → diaphragm pump
That setup gives more stable power for garden watering, rain barrel pumping, and RV water supply.
Why Direct Solar Panel Connections Often Fail
Many people assume that if a solar panel is labeled 12V or 24V and the solar diaphragm pump uses the same voltage, they can wire them together and start pumping water. In reality, that often fails — not because the pump is broken, but because a solar panel’s output behaves very differently from the stable power a DC diaphragm pump needs.
1. Startup current is too high
When a diaphragm water pump starts, its surge current is often much higher than its normal running current. Take Flowatt’s 24VDC 60W low-noise solar diaphragm water pump as an example: it may draw only a few amps while running, but the startup surge can be far higher. A=solar panel alone usually cannot deliver that surge quickly enough, so the pump never starts — or runs for a second and stops.
2. Solar panel voltage is unstable
A panel labeled 24V can produce an open-circuit voltage well above 30V, and that voltage swings with sunlight. A solar water pump runs more reliably on steady battery voltage. When voltage rises and drops with clouds and shade, the pump can run unevenly and face a higher risk of motor stress or damage.
3. Clouds and shade make the system unreliable
One cloud or a patch of shade can cut panel output right away. With a direct solar panel connection and no battery buffer, the pump may cycle on and off or shut down completely — which is a poor fit for garden irrigation, rain barrel pumping, or RV water supply.
4. Easy to wire wrong — and easy to damage the pump
Some users connect the pump to a charge controller’s Load port, or feed a high-voltage panel straight into the pump. Load ports are usually too weak for pump startup current, and excess voltage can burn the motor. Many “my pump failed after direct solar wiring” cases come from these mistakes.
In short: the solar panel generates power, the battery stabilizes supply, and the charge controller protects the system. Skip the battery and controller, and a direct panel-to-pump setup looks simple — but it is the setup most likely to fail.
What Happens If You Wire the Pump Straight to a Solar Panel
Wiring a solar diaphragm pump straight to a solar panel looks simple: fewer parts, no battery, no charge controller. In real use, though, a direct solar panel connection rarely gives you steady water flow. More often, you get one of these problems.
1. The sun is out, but the pump will not start
This is the most common failure. The panel may show voltage, yet a DC diaphragm pump needs a higher surge current at startup. A solar panel alone often cannot deliver that surge, so the pump stays still — or hums once and stops. Many people think the pump is broken, when the real issue is weak startup power.
2. It runs briefly, then stops — or keeps cycling
Sometimes the pump starts, but one cloud, a little shade, or a shift in sunlight drops panel output. Voltage falls, the pump shuts off, then restarts when the light returns. That on/off cycling makes garden irrigation, rain barrel pumping, and RV water supply unreliable.
3. Flow and pressure become unstable
With a panel-direct solar water pump setup, performance follows the sun. Stronger light means more flow and pressure; weaker light means weaker output. If you use a pressure switch for faucets or watering, the system may start and stop more often, and the user experience gets worse.
4. Long-term damage risk goes up
High voltage, current spikes, and frequent restarts put extra stress on the motor and internal parts. Feeding a high-voltage panel straight into a 12V/24V pump — or connecting the pump to a controller Load port that cannot handle the current — raises the chance of overheating, unusual noise, or burnout. Many “my pump failed after direct solar wiring” cases come from this kind of unstable power.
5. Early morning, late day, and cloudy weather barely work
Without a battery buffer, the system depends only on instant sunlight. At sunrise, sunset, or on cloudy days, panel output is often too low to run the pump. Skipping the battery may look cheaper, but you also get fewer usable hours and less reliable off-grid water pumping.
So “it spun once in full sun” is not success. For most 12V/24V solar diaphragm pumps, the safer setup is still: solar panel → charge controller → battery → pump. The next section covers the correct wiring method.
The Correct Way to Wire a Solar Diaphragm Pump
For a reliable solar diaphragm pump setup, do not wire the pump straight to a solar panel. The correct solar pump wiringmethod is:
Solar panel → solar charge controller → battery → (fuse) → diaphragm pump
Here is what each part does:
1. Solar panel: generates power
solar panel converts sunlight into DC electricity for the system. Match the panel voltage and capacity to the pump and your daily runtime. For Flowatt’s 24VDC 60W low-noise solar diaphragm water pump, use a 24V solar system— not a random panel that only “looks close enough.”
2. Solar Charge controller: charges the battery safely
A PWM or MPPT solar charge controller regulates the panel’s variable output and charges the battery without overcharging. Without a controller, battery life and system safety both suffer. Important: do not power a high-current diaphragm water pump from the controller’s Load port. That port is usually too weak for pump startup surge.
3. Battery: stabilizes power for the pump
The battery is the key to stable operation. It supplies the surge current needed to start the pump and keeps water flowing through short cloudy periods or light changes. With battery buffering, you avoid the common “sunny but no start” and “runs then stops” problems.
The pump can also run on battery power alone. For most 12V/24V solar diaphragm pumps, the pump side is meant to be powered by a battery — with matching voltage and a fuse. The solar panel’s job is to recharge that battery through the controller, not to drive the pump directly.
4. Fuse and correct wiring: protect the system
Add a properly sized fuse or breaker between the battery and the pump, confirm polarity, and use wire thick enough to limit voltage drop and heat. If your pump has a pressure switch, wire it as directed for automatic faucet or irrigation control.
