3inch 90VDC 1100W 106M Stainless Steel Reinforced Nylon Impeller Solar Deep Well Submersible Pump

$288.48 USD$412.12 USD

1. 3Inch Solar Deep Well Pump With 1Inch Outlet, 1100W(1.5Hp), Strong Choice For Solar Irrigation Pump Projects

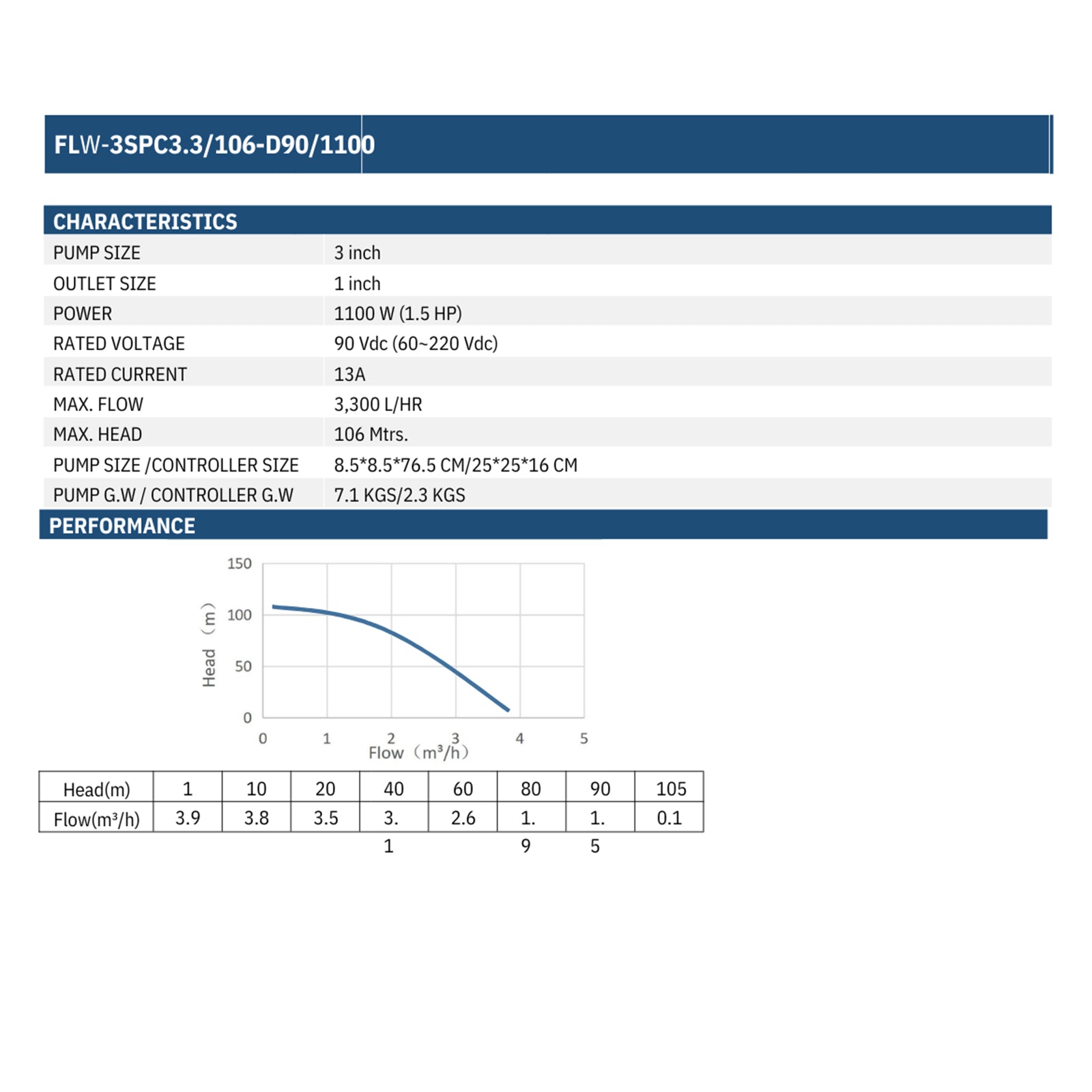

2. Max Head 106m, Flow ≈ 0; Max Head 60m, Flow ≈ 2.6m³/h, Irrigates 0.31ha (5mm/Day, 6h/Day)
3. Stainless Steel Pump Body With Reinforced Nylon Impeller
4. MPPT Controller With Multi-Protection (Over-Voltage, Overload, Short Circuit)
5. Required Solar Panel Configuration: 550W × 3pcs Connected in Series
6. Application: Deep Well Water Extraction, Agricultural Irrigation, Mountainous Area Water Supply, and Livestock Farming From Deep Sources.

Quantity
Contact Us

[{"variant_id":"50454819701031" , "metafield_value":""}]

106m Ultra-High Head Submersible Well Pump Ideal for 3-Inch Wells

This high-performance 3-inch submersible well pump is engineered for deep water extraction. Featuring an impressive 106-meter maximum head, it delivers powerful and reliable performance even within the constraints of narrow 3-inch well casings.


1.1KW PMSM Motor: High-Efficiency Solar Direct Drive Technology

This solar submersible well pump is equipped with an advanced 1.1KW PMSM (Permanent Magnet Synchronous Motor) DC motor, achieving over 90% efficiency. The motor supports a 60-220Vdc wide voltage input, allowing it to operate directly from solar panels without the need for batteries, providing you with a green, efficient, and low-maintenance water supply solution.


Pump Weighs Only 7.1kg, Quick Replacement for Existing Pumps

As a compact submersible well pump, the pump body weighs only 7.1 kg. This lightweight and streamlined structure allows for quick and easy replacement of existing 3-inch submersible pumps, significantly reducing installation time and saving on labor and deployment costs.


Smart Control and Superior Durability (IP65 Rated)

This durable submersible well pump features a built-in 32-bit MCU for FOC (Field-Oriented Control) and comprehensive built-in protections (including over-voltage, over-current, and anti-reverse protection). It boasts an IP65 ingress protection rating and is capable of stable operation across a wide temperature range from -10°C to +80°C., ensuring long-term reliability.

FAQs

  • A deep well submersible pump is the best choice. This type of deep well pump works underwater and provides strong pressure, making it ideal for wells deeper than 50–100 meters. It offers reliable water delivery for home use, irrigation, and livestock.

  • The number of solar panels depends on the pump’s power and water demand. For example, a 900W solr water pump can typically be powered by 2 × 540W solar panels. Smaller pumps may need fewer panels, while larger pumps may require more to ensure reliable operation.
